Wholesale Duplex 2205 stainless steel capillary tubing Supplier, Factories

1.Production standards: ASTM A269/A249 2.Stainless steel material :304 304L 316L(UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) 3. Size range: diameter 3MM(0.118”-25.4(1.0”)MM 4. Wall thicknesses: 0.5mm (0.020’’) to 3mm (0.118’’) 5.General delivery pipe status: half hard / soft bright annealing 6.The tolerance range: diameter: + 0.1mm, wall thickness: + 10%, length: -0/+6mm 7.Coil lengthsup to: 500MM-13500MM (45000feet)(can be adjusted according to customer requirements)

Send Inquiry

Product Description

Manufacturing Range

stainless steel coil tube stainless steel tube coil stainless steel coil tubing stainless steel coil pipe stainless steel coil tube suppliers stainless steel coil tube manufacturers stainless steel pipe coil

Stainless steel capillary and stainless steel small tubes are widely used in medical treatment, fiber-optic, pen making, electronic welding products, light cable joint, food, vintage, dairy, drink, pharmacy, and biochemistry. Different lengths can be provided according to specific requests.

Capillary tubes with a maximum bore of 0.0158 in. are available in a wide range of stainless steels. Our capillary tubes are characterized by tight tolerances, and the inside surface of the tubes is free from oil, grease, and other particles. This ensures, for example, an optimized and even flow of liquids and gases from the sensor to the measuring instrument.

Stainless steel coiled tubing is available in a range of different product forms depending on customer requirements. We manufacture welded and seamless tube products. The standard grades are 304, 304L, 316L (UNS S31603), Duplex 2205 (UNS S32205 & S31803), Super Duplex 2507 (UNS S32750), Incoloy 825 (UNS N08825), and Inconel 625 (UNS N06625). Other grades of stainless steel in duplex, super duplex, and nickel alloys are available on request.

Diameter ranges from 3mm (0.118’’) to 25.4mm (1.00’’) OD. Wall thickness ranges from 0.5mm (0.020’’) to 3mm (0.118’’). Tubing can be supplied in the annealed or cold-worked stainless steel control line pipe condition.

Specification

Parameter	Details
Thickness	0.1-2.0mm
Diameter	0.3-20mm (tolerance: ±0.01mm)
Stainless Grade	201, 202, 304, 304L, 316L, 317L, 321, 310s, 254mso, 904L, 2205, 625 etc.
Surface Finish	Inside and outside are both bright annealing, cleaning, and seamless, no leaks.
Standard	ASTM A269-2002, JIS G4305 / GB/T 12770-2002, GB/T12771-2002
Length	200-1500m per coil, or as customer required
Stock Size	61mm , 80.5mm, 80.6mm, 80.8mm, 80.9mm, 81mm, 9.51mm, 101mm, etc.
Certificate	ISO & BV
Packing Way	Woven bags, plastic bags etc.
Application Range	Widely used in food industry, beverage equipment, beer machine, heat exchanger, milk/water supply system, medical equipment, solar energy, aviation, aerospace, communications, oil and other industries.
Note	OEM / ODM / Buyer Label accepted.

Chemical Composition & Properties

316L Stainless Steel Capillary Tube Technical Data
Chemical Composition
Grade	UNS	C (max.)	Cr	Ni		Mo		Others
TP 316L	S31600 / S31603	0.03	17.5	13		2.1		0.1
Mechanical Properties
Grade	Yield Strength, psi (MPa)		Tensile Strength, psi (MPa)			Elongation (%)
TP 316L	32,000 (220)		75,000 (515)			35
Corrosion Properties
Grade	UNS	PRE¹⁾	CPT²⁾ °F (°C)		Max H2S³⁾ psi		CO2⁴⁾
TP 316L	S31600/S31603	24	95 (35)		No limit		+

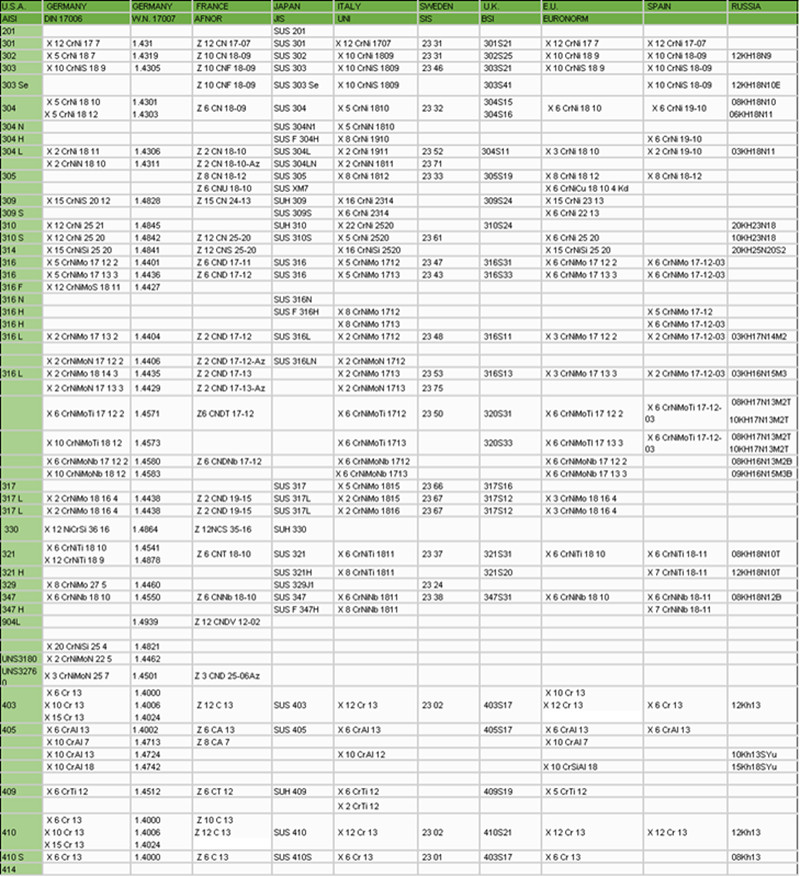

Stainless Steel Coiled Tubing / Coiled Tubes Material Grade:

Stainless steel coiled tubing material grade

Precision capillaries are used in various fields:

1
Medical Industry: Precision capillary tubes are used for blood collection and analysis, as well as medical devices such as catheters.
2
Automotive Industry: Capillary tubes are used in automotive applications such as fuel injection systems, air conditioning systems, and brake lines.
3
Aerospace Industry: Precision capillaries are used in aerospace applications such as hydraulic systems, fuel lines, and instrumentation.
4
Electronics Industry: Capillary tubes are used in the manufacture of electronic devices such as sensors and transducers.
5
Chemical Industry: Capillary tubes are used for chemical analysis and experiments, and are also used to manufacture chemical products.
6
Food and Beverage Industry: Capillary tubes are used in the processing and packaging of food and beverages.
7
Environmental Industry: Capillary tubes are used in environmental analysis and monitoring applications.
8
Industrial Manufacturing: Capillary tubes are used in a wide range of industrial applications, such as the production of machinery and equipment.

Quality Advantage:

The quality of our products for the control line in the oil and gas sector is assured not just during the controlled manufacturing process but also by way of finished product testing. Typical tests include:

✓
Non-destructive tests
✓
Hydrostatic tests
✓
Surface finish controls
✓
Dimensional accuracy measurements
✓
Flare and coning tests
✓
Mechanical and chemical property testing

Stainless steel Capillary tube size list:

Stainless Steel capillary tubing
304 Stainless Steel capillary tubing
Available Grades: 316L 304 304L 2205 904L 2507 625 825 (MOQ: 500kgs)
0.25*0.08	1.4*0.4	2.3*0.2	3.2*0.25	4.5*0.7	6*0.45	8*0.3	11*0.5	0.8*0.2	10*1
0.3*0.1	1.5*0.1	2.3*0.25	3.2*0.3	4.5*0.75	6*0.5	8*0.4	11*1	0.85*0.175	12*0.5
0.4*0.1	1.5*0.125	2.3*0.3	3.2*0.35	4.5*0.8	6*0.6	8*0.45	11*1.5	1.1*0.2	12*1
0.5*0.1	1.5*0.15	2.4*0.15	3.2*0.4	4.5*0.9	6*0.7	8*0.5	11*2	1.1*0.3	12*1.5
0.5*0.125	1.5*0.2	2.4*0.2	3.2*0.5	4.5*1	6*0.8	8*0.6	11.1*0.4	1.2*0.135	12*2.0
0.5*0.15	1.5*0.25	2.4*0.25	3.2*0.6	4.7*0.2	6*0.9	8*0.7	12*0.2	1.6*0.25	12.8*1.6
0.6*0.1	1.5*0.3	2.4*0.3	3.2*0.8	4.7*0.25	6*1.0	8*0.8	12*0.25	1.9*0.1	14*0.5
0.6*0.125	1.5*0.35	2.4*0.4	3.4*0.5	4.7*0.3	6*1.2	8*0.9	12*0.3	2*0.3	14*1.5
0.6*0.15	1.5*0.4	2.4*0.5	3.5*0.15	4.8*0.125	6*1.25	8*1	12*0.4	2*0.4	14*2.0
0.63*0.15	1.5*0.45	2.4*0.6	3.5*0.25	4.8*0.2	6*1.5	8*1.2	12*0.5	2*0.5	15*0.5
0.7*0.1	1.5*0.5	2.4*0.7	3.5*0.25	4.8*0.25	6*2	8*1.5	12*1	2*0.6	15*1.5
0.7*0.125	1.6*0.1	2.4*0.75	3.5*0.3	4.8*0.3	6.35*0.3	8*2	12.3*0.4	2.5*0.25	15*2
0.7*0.15	1.6*0.125	2.4*0.8	3.5*0.4	4.8*0.5	6.35*0.5	8*2.5	12.7*0.3	2.5*0.3	16*0.5
0.7*0.2	1.6*0.15	2.5*0.1	3.5*0.5	5*0.1	6.35*0.7	8.5*0.2	13*0.5	2.5*0.5	16*1.0
0.8*0.1	1.6*0.2	2.5*0.15	3.5*0.55	5*0.15	6.35*1.0	8.5*0.25	13*1	3*0.5	16*1.5
0.8*0.125	1.6*0.25	2.5*0.2	3.5*0.7	5*0.2	6.4*0.225	8.5*0.3	13*1.5	3*0.8	16*2.0
0.8*0.15	1.6*0.3	2.5*0.25	3.5*0.8	5*0.25	6.5*0.2	8.5*0.4	13*2	3*1	17*1.5
0.8*0.2	1.6*0.35	2.5*0.3	3.5*1.0	5*0.3	6.5*0.25	8.5*0.5	13.5*0.5	4*0.3	17*2.0
0.8*0.25	1.6*0.4	2.5*0.35	3.5*1.15	5*0.35	6.5*0.3	8.5*1.0	14*0.25	4*0.5	18*1.5
0.9*0.1	1.65*0.3	2.5*0.4	3.6*0.15	5*0.4	6.5*0.4	8.5*1.3	14*0.3	4*1	18*2.0
0.9*0.15	1.7*0.1	2.5*0.45	3.7*0.15	5*0.45	6.5*0.5	8.5*1.5	14*0.5	4.8*0.15	19*1.5
0.9*0.2	1.7*0.15	2.5*0.5	3.7*0.2	5*0.5	6.5*0.6	8.9*1.4	14*1	5*0.5	19*2.0
0.9*0.25	1.7*0.2	2.5*0.6	3.7*0.5	5*0.6	6.5*0.7	9*0.2	14.2*0.2	5*1	20*1.0
1.0*0.1	1.7*0.25	2.5*0.65	3.8*0.2	5*0.7	6.5*0.8	9*0.25	15*0.3	5.5*1.75	20*1.5
1.0*0.125	1.7*0.3	2.5*0.7	3.8*0.25	5*0.75	6.5*0.9	9*0.3	15*0.5	6*0.15	20*2.0
1.0*0.15	1.8*0.1	2.5*0.85	3.8*0.3	5*0.8	6.5*1	9*0.4	15*1	6*0.25	20*2.5
1.0*0.2	1.8*0.15	2.6*0.15	3.9*0.2	5*0.9	6.5*1.3	9*0.5	16*0.5	6*0.3	21*1.0
1.0*0.25	1.8*0.2	2.6*0.2	4*0.1	5*1.0	6.7*0.5	9*0.6	16*1	6*0.5	22*1.5
1.0*0.3	1.8*0.25	2.6*0.3	4*0.15	5*1.2	6.8*0.15	9*0.7	17*0.5	6*0.85	25*1.5
1.0*0.35	1.8*0.3	2.6*0.5	4*0.2	5*1.5	7*0.15	9*0.8	17*1	6*1	28.6*1.5
1.1*0.1	1.8*0.35	2.65*0.15	4*0.25	5.2*0.2	7*0.2	9*0.9	18*0.5	7*0.3
1.1*0.12	1.8*0.4	2.7*0.15	4*0.3	5.2*0.3	7*0.25	9*1	18*1.0	7*0.5
1.1*0.125	1.9*0.1	2.7*0.2	4*0.35	5.2*0.45	7*0.3	9*1.5	19*0.5	7*1.0
1.1*0.15	1.9*0.15	2.7*0.3	4*0.4	5.2*0.5	7*0.35	9*2	19*1.0	8*0.5
1.1*0.2	1.9*0.2	2.8*0.15	4*0.45	5.4*0.2	7*0.4	9.5*0.25	20*0.5	8*1
1.1*0.25	1.9*0.25	2.8*0.2	4*0.5	5.45*0.275	7*0.45	9.5*0.3	21*0.5	9*0.5
1.2*0.1	2*0.1	2.8*0.25	4*0.6	5.5*0.15	7*0.5	9.5*0.5		9*1
1.2*0.12	2*0.125	2.8*0.3	4*0.7	5.5*0.2	7*0.6	9.5*0.7		10*0.5
1.2*0.125	2*0.15	2.8*0.5	4*0.75	5.5*0.25	7*0.7	9.5*1		10*1
1.2*0.15	2*0.2	2.8*0.7	4*0.8	5.5*0.3	7*0.8	9.5*1.5
1.2*0.2	2*0.25	2.9*0.3	4*0.9	5.5*0.4	7*0.9	10*0.2
1.2*0.25	2*0.3	3*0.1	4*1.0	5.5*0.5	7*1.0	10*0.25
1.2*0.3	2*0.35	3*0.15	4*1.25	5.5*0.6	7*1.2	10*0.3
1.2*0.4	2*0.4	3*0.2	4*1.5	5.5*0.7	7*1.5	10*0.4
1.3*0.1	2*0.45	3*0.25	4.2*0.2	5.5*0.75	7*2	10*0.5
1.3*0.12	2*0.5	3*0.3	4.2*0.25	5.5*0.8	7.5*0.2	10*0.6
1.3*0.125	2*0.6	3*0.35	4.2*0.3	5.5*1	7.5*0.25	10*0.7
1.3*0.135	2*0.7	3*0.4	4.2*0.4	5.6*0.85	7.5*0.3	10*0.8
1.3*0.15	2.1*0.15	3*0.5	4.2*0.5	5.7*0.2	7.5*0.4	10*0.9
1.3*0.175	2.1*0.2	3*0.6	4.3*0.9	5.7*0.3	7.5*0.5	10*1.0
1.3*0.2	2.1*0.25	3*0.7	4.4*0.45	5.8*0.15	7.5*0.6	10*1.5
1.3*0.25	2.1*0.65	3*0.75	4.4*0.5	5.8*0.2	7.5*0.7	10*2
1.3*0.3	2.2*0.15	3*0.8	4.5*0.15	5.8*0.5	7.5*0.8	10*2.5
1.4*0.1	2.2*0.2	3*0.9	4.5*0.2	5.8*0.7	7.5*0.9	10.3*0.2
1.4*0.15	2.2*0.25	3*1.0	4.5*0.25	6*0.15	7.5*1.0	10.8*0.2			soft bright
1.4*0.2	2.2*0.3	3*1.1	4.5*0.3	6*0.2	7.8*0.5	11*0.2			1.5*0.15
1.4*0.25	2.2*0.5	3*1.2	4.5*0.4	6*0.25	8*0.15	11*0.25			2*0.5
1.4*0.3	2.3*0.125	3.2*0.15	4.5*0.5	6*0.3	8*0.2	11*0.3			2.5*0.5
1.4*0.35	2.3*0.15	3.2*0.2	4.5*0.6	6*0.4	8*0.25	11*0.4			5*0.5

Stainless Steel Coil Tube Application:

Refrigeration equipment
Evaporator
Gas-liquid delivery
Condenser
Beverage machine

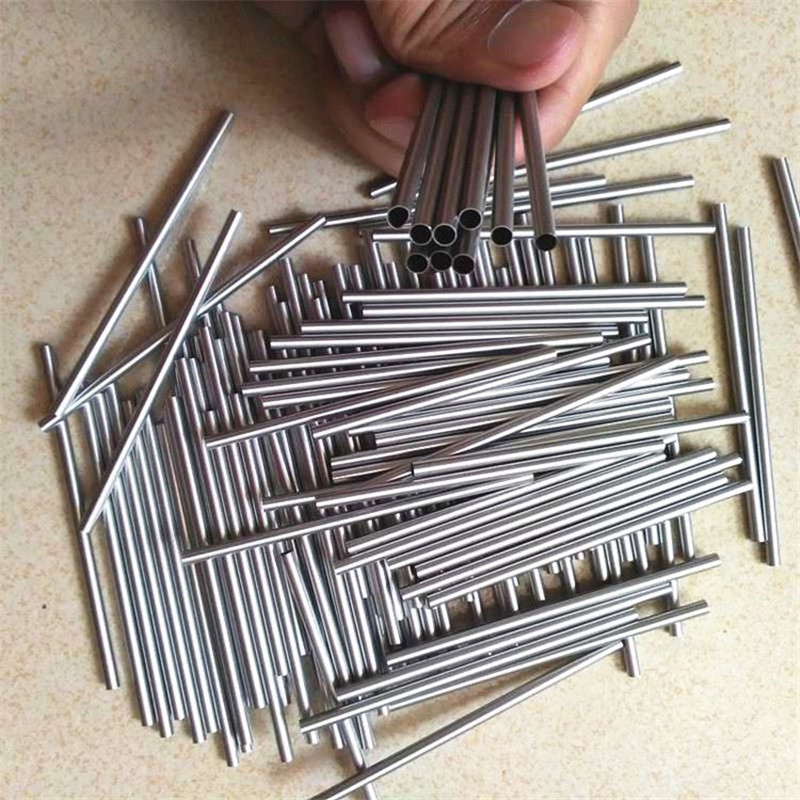

Stainless steel coil tube refrigeration application

Frequently Asked Questions (FAQ)

What steel grades are available for your coiled tubing?

We manufacture coiled tubing in standard grades such as 304, 304L, 316L, Duplex 2205, Super Duplex 2507, Incoloy 825, and Inconel 625. Other duplex, superduplex, and nickel alloy grades are available upon request.

What dimensions can you supply for stainless steel coiled tubing?

Our coiled tubing is available in outer diameters (OD) ranging from 3mm (0.118’’) to 25.4mm (1.00’’), and wall thicknesses from 0.5mm (0.020’’) to 3mm (0.118’’).

How is the inside surface quality of the capillary tubes ensured?

The inside surfaces of our precision capillary tubes are kept completely free from oil, grease, and other particles. This guarantees tight tolerances and an optimized, consistent flow of gases or liquids.

What quality tests do your control line tubes undergo?

We perform comprehensive quality testing on our products, including non-destructive testing, hydrostatic testing, surface finish control, dimensional accuracy checks, flare & coning tests, and full mechanical/chemical property evaluations.

What is the standard packaging and length for coiled tubes?

We typically package coiled tubing in woven bags or plastic bags. Lengths range from 200m to 1500m per coil, and we can also customize lengths to fit specific customer requirements.
