Why Titanium Stabilization and Higher Carbon Content are Crucial for Extreme Thermal Systems
Grade 321H is an austenitic stainless steel stabilized with Titanium. The "H" denotes a higher carbon content (0.04% - 0.10%), specifically engineered to provide superior high-temperature creep strength. Standard grades struggle above 800°F (427°C) due to chromium carbide precipitation at the grain boundaries, which triggers intergranular corrosion. Titanium addition forms harmless titanium carbides instead, preserving structural integrity up to 1500°F (816°C).
Heat exchanger applications subject tubes to severe thermal cycling and high internal pressures. The mechanical integrity of 321H prevents deformation, cracking, and premature fatigue. Standard compliance to ASTM A213 or ASME SA213 ensures these pipes survive rigorous thermal stresses while maintaining maximum heat transfer efficiency.
In high-pressure boilers, chemical processing plants, and petrochemical piping systems, selecting 321H instead of standard 304 or 321 provides up to a 30% increase in design stress limits at operating temperatures exceeding 550°C. This translates to thinner tube wall requirements, leading to optimized heat exchange, lower weight, and reduced raw material costs.
The Ecosystem Edge: Liaocheng Sihe Stainless Steel Material LTD
Liaocheng Sihe is situated within China's primary metallurgical cluster, allowing direct access to premium, highly refined raw materials (billets of 321H, 316L, 310S, and exotic alloys like Inconel 625 and Incoloy 825). This physical proximity keeps production overheads low and guarantees prompt scheduling, bypassing the supply disruptions common in Western manufacturing centers.
Our facility has deployed advanced online bright annealing technology. This process treats the stainless steel tubes under controlled hydrogen and nitrogen atmospheres, preventing oxidation on the tube's inner and outer surfaces. The result is a smooth, clean finish that improves fluid flow, minimizes fouling, and enhances corrosion resistance in challenging liquid-gas exchangers.

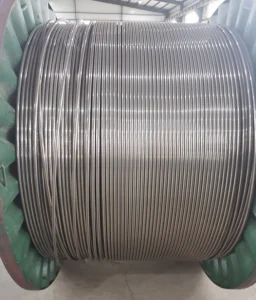

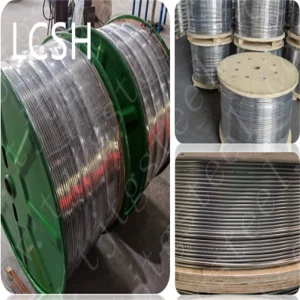

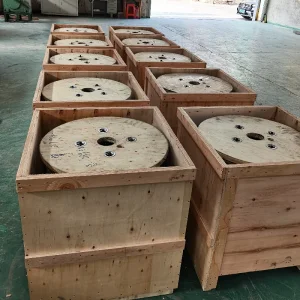

We supply seamless coiled tubing spanning lengths up to 32,800 feet (10,000 meters). In oil, gas, and chemical plants, reducing weld joints is critical. Minimizing welds eliminates risk areas for stress corrosion cracking (SCC) and localized pitting, dramatically lowering installation costs and operational downtime.
Quality assurance is not optional. Every production run at Liaocheng Sihe is subjected to a battery of tests: compression, flaring, bending, 100% hardness tests, tensile testing, pneumatic testing, and eddy current detection, conforming directly to international certifications.
A clear breakdown of key alloys utilized in global heat exchanger systems
| Alloy Grade | UNS Designation | Stabilizing Elements | Max Temp (°C) | Primary Industrial Use-Case |
|---|---|---|---|---|
| 321H | UNS S32109 | Titanium (5x(C+N) min - 0.70% max) | 815°C | High-temperature heat exchangers, superheaters, and chemical reactors. |
| 304 / 304L | UNS S30400 / S30403 | None | 425°C | General food processing, refrigeration, low-temperature utilities. |
| 316L | UNS S31603 | Molybdenum (2.0% - 3.0%) | 450°C | Marine environments, pharmaceutical biotech, high-purity hydraulics. |
| 310S / 310 | UNS S31008 / S31000 | High Chromium & Nickel | 1035°C | Boiler baffles, kiln components, high-temperature thermal exchangers. |
| Duplex 2205 | UNS S32205 | Nitrogen Balanced Duplex | 300°C | Offshore oil & gas, seawater desalination, chloride-rich chemical pipes. |
Over a decade of manufacturing high-precision tubing for critical global sectors
Liaocheng Sihe Stainless Steel Material LTD is a leading manufacturer specializing in stainless steel coiled tubing, polishing tubes, and high-performance seamless coiled pipes. Operating under tight quality controls, our production processes strictly match GB, ASTM, ASME, JIS, and EN standards.
Our structural capabilities cover key grades including 304/304L, 316L, 321, 317L, 309S, 310S, and INCOLOY 800, alongside specialty alloys like Austenitic 316L, Duplex 2205, Super Duplex 2507, Incoloy 825, and Inconel 625.
Coiled tubing dimensions range from 0.125 inch (3.175 mm) to 1 inch (25.4 mm) outer diameter, with wall thicknesses up to 0.165 inch (3 mm). Our product range is exported to over 30 countries and regions including the US, Germany, Spain, South America, Southeast Asia, the Middle East, and Eastern Europe.
As offshore exploration progresses into deeper and more demanding waters, ensuring physical safety is vital. Our mission is to engineer and manufacture corrosion-resistant coiled tubing that keeps processing facilities running safely. Whether it is umbilical lines or petrochemical heat exchangers, we prioritize tailored requirements to meet tight customer specifications.
With three lines dedicated specifically to long-length stainless steel coils, our facilities are equipped with the advanced technology needed for online bright annealing, tube softening, flaring, compression, and mechanical testing.
We deliver customized processing services to transform raw tubing into high-performance exchanger assemblies
Supporting a wide range of materials (e.g., 304, 316L, 2205, 321H) and key heat exchanger outer diameters ranging from 6.35mm up to 19mm.

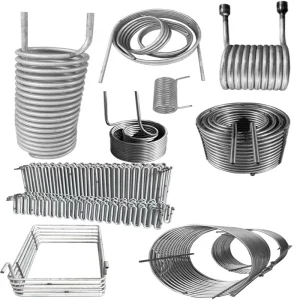

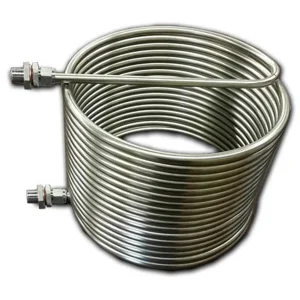

Our specialists handle bending, high-precision drawing, and tight spiral forming to generate space-saving, highly efficient heat exchanger coils.
We employ laser cutting, advanced mechanical saws, and precise flame cutting systems for clean, burr-free end cuts with tight tolerances.
We are dedicated to developing new products with state-of-the-art technologies, providing bright annealing, mechanical polishing, and passivation.
Designed for secure installations in automotive exhaust systems, high-pressure chemical transfer pipelines, and delicate precision instrument manifolds.
Where Sihe Stainless Steel products excel under demanding thermal and mechanical conditions
Ensure project compliance by following standard verification frameworks
Always verify the chemical makeup of incoming 321H stainless steel. The alloy must have a titanium content of at least five times the carbon plus nitrogen levels (Ti ≥ 5×(C+N)). Standard 321 grades will fail creep rupture minimums if carbon falls below the critical 0.04% threshold.
Pipes utilized in dense shell-and-tube configurations need precise outer diameter (OD) and wall thickness (WT) profiles to ensure clean installation. Sihe Steel ensures continuous outer diameter compliance from 0.125" up to 1" using real-time laser monitoring.
High-integrity components must ship with mill test certificates (MTC) conforming to EN 10204 3.1. Procurement agents must verify results for chemical breakdown, mechanical yields, ultrasonic verification, and non-destructive hydrostatic testing.
