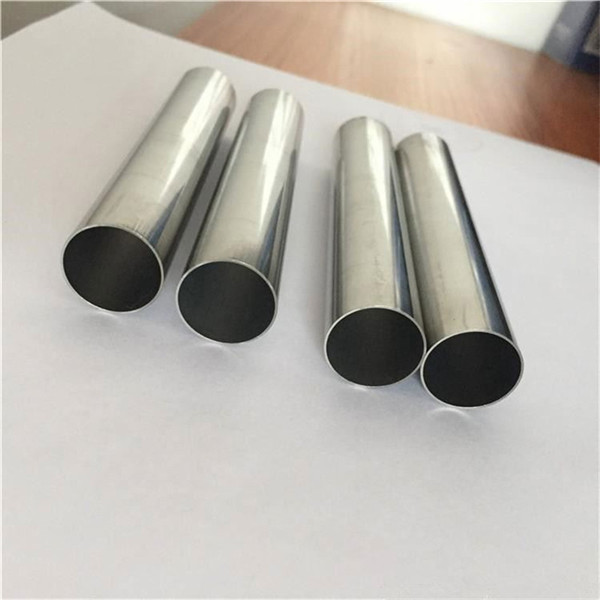

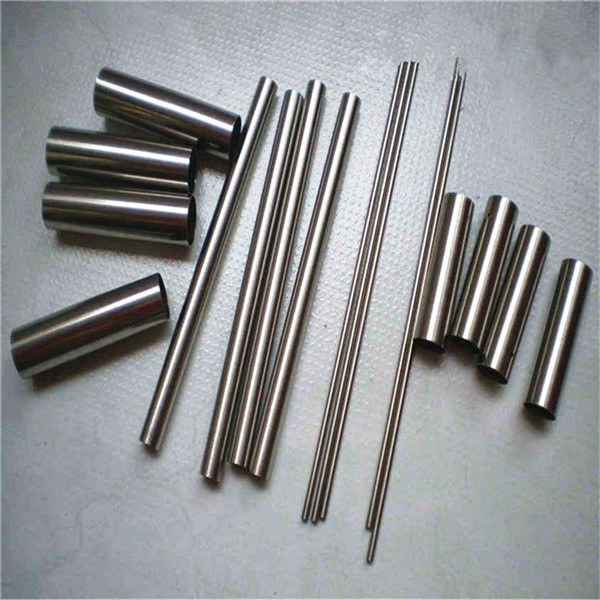

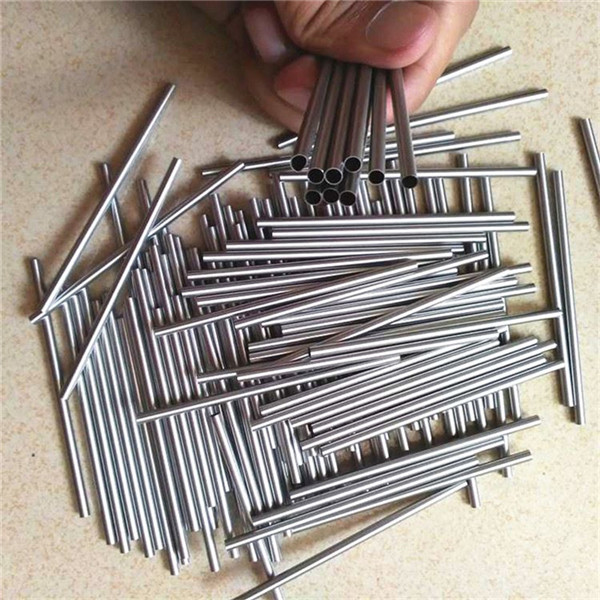

Wholesale Inconel 625 (UNS N06625) stainless steel capillary tubing Manufacturers, Supplier

1.Production standards: ASTM A269/A249 2.Stainless steel material :304 304L 316L(UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) 3. Size range: diameter 3MM(0.118”-25.4(1.0”)MM 4. Wall thicknesses: 0.5mm (0.020’’) to 3mm (0.118’’) 5.General delivery pipe status: half hard / soft bright annealing 6.The tolerance range: diameter: + 0.1mm, wall thickness: + 10%, length: -0/+6mm 7.Coil lengthsup to: 500MM-13500MM (45000feet)(can be adjusted according to customer requirements)

Send Inquiry

Product Description

Stainless Steel Coil Tube Stainless Steel Tube Coil Stainless Steel Coil Tubing Stainless Steel Coil Pipe Stainless Steel Coil Tube Suppliers Stainless Steel Coil Tube Manufacturers Stainless Steel Pipe Coil

Stainless steel capillary and stainless steel small tubes are widely used in medical treatment, fiber-optics, pen making, electronic welding products, light cable joints, food, vintage, dairy, drinks, pharmacy, and biochemistry. Different lengths can be provided according to specific requests.

Capillary tubes with a maximum bore of 0.0158 in. are available in a wide range of stainless steels. These capillary tubes are characterized by tight tolerances, and the inside surface of the tubes is free from oil, grease, and other particles. This ensures, for example, an optimized and even flow of liquids and gases from the sensor to the measuring instrument.

Stainless steel coiled tubing is available in a range of different product forms depending on the customer requirements. Both welded and seamless tube products are manufactured. The standard grades are 304, 304L, 316L (UNS S31603), Duplex 2205 (UNS S32205 & S31803), Super Duplex 2507 (UNS S32750), Incoloy 825 (UNS N08825), and Inconel 625 (UNS N06625). Other grades of stainless steel in duplex, superduplex, and nickel alloy are available on request.

Diameter ranges from 3mm (0.118’’) to 25.4mm (1.00’’) OD. Wall thickness ranges from 0.5mm (0.020’’) to 3mm (0.118’’). Tubing can be supplied in the annealed or cold-worked stainless steel control line pipe condition.

Specifications

Property	Details
Thickness	0.1-2.0mm
Diameter	0.3-20mm (tolerance: ±0.01mm)
Stainless Grade	201, 202, 304, 304L, 316L, 317L, 321, 310s, 254mso, 904L, 2205, 625, etc.
Surface Finish	Inside and outside are both bright annealing, cleaning, and seamless, no leaks.
Standard	ASTM A269-2002, JIS G4305 / GB/T 12770-2002, GB/T12771-2002
Length	200-1500m per coil, or as customer required
Stock Size	61mm, 80.5mm, 80.6mm, 80.8mm, 80.9mm, 81mm, 9.51mm, 101mm, etc.
Certificate	ISO & BV
Packing Way	Woven bags, plastic bags, etc.
Application Range	Widely used in food industry, beverage equipment, beer machine, heat exchanger, milk/water supply system, medical equipment, solar energy, aviation, aerospace, communications, oil, and other industries.
Note	OEM / ODM / Buyer Label accepted.

Size of Stainless Steel Coil Tube

ITEM	Grade	Size (MM)	Pressure (Mpa)	Length (M)
1	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/8″ × 0.025″	3200	500 - 35000
2	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/8″ × 0.035″	3200	500 - 35000
3	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/4″ × 0.035″	2000	500 - 35000
4	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/4″ × 0.049″	2000	500 - 35000
5	316L, 304L, 304, alloy 625, 825, 2205, 2507	3/8″ × 0.035″	1500	500 - 35000
6	316L, 304L, 304, alloy 625, 825, 2205, 2507	3/8″ × 0.049″	1500	500 - 35000
7	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/2″ × 0.049″	1000	500 - 35000
8	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/2″ × 0.065″	1000	500 - 35000
9	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ3mm × 0.7mm	3200	500 - 35000
10	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ3mm × 0.9mm	3200	500 - 35000
11	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ4mm × 0.9mm	3000	500 - 35000
12	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ4mm × 1.1mm	3000	500 - 35000
13	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ6mm × 0.9mm	2000	500 - 35000
14	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ6mm × 1.1mm	2000	500 - 35000
15	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ8mm × 1mm	1800	500 - 35000
16	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ8mm × 1.2mm	1800	500 - 35000
17	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ10mm × 1mm	1500	500 - 35000
18	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ10mm × 1.2mm	1500	500 - 35000
19	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ10mm × 2mm	500	500 - 35000
20	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ12mm × 1.5mm	500	500 - 35000

Pressure Tables

Selection of the appropriate material for any given control or chemical injection line is subject to the prevailing operational and site conditions. In order to assist in the selection, the following tables provide internal pressure ratings and the adjustment factors for a range of common grades and sizes of seamless and laser welded stainless tubing.

Maximum pressure (P) for TP 316L at 100°F (38°C)¹

Please refer to grade and product form adjustment factors below.

Outside diameter (in.)	Wall thickness (in.)	Working pressure² psi (MPa)	Burst pressure³ psi (MPa)	Collapse pressure⁴ psi (MPa)
1/4	0.035	6,600 (46)	22,470 (155)	6,600 (46)
1/4	0.049	9,260 (64)	27,400 (189)	8,710 (60)
1/4	0.065	12,280 (85)	34,640 (239)	10,750 (74)
3/8	0.035	4,410 (30)	19,160 (132)	4,610 (32)
3/8	0.049	6,170 (43)	21,750 (150)	6,220 (43)
3/8	0.065	8,190 (56)	25,260 (174)	7,900 (54)
3/8	0.083	10,450 (72)	30,050 (207)	9,570 (66)
1/2	0.049	4,630 (32)	19,460 (134)	4,820 (33)
1/2	0.065	6,140 (42)	21,700 (150)	6,200 (43)
1/2	0.083	7,840 (54)	24,600 (170)	7,620 (53)
5/8	0.049	3,700 (26)	18,230 (126)	3,930 (27)
5/8	0.065	4,900 (34)	19,860 (137)	5,090 (35)
5/8	0.083	6,270 (43)	26,910 (151)	6,310 (44)
3/4	0.049	3,080 (21)	17,470 (120)	3,320 (23)
3/4	0.065	4,090 (28)	18,740 (129)	4,310 (30)
3/4	0.083	5,220 (36)	20,310 (140)	5,380 (37)

1) Estimates only. Actual pressures should be calculated considering all stress factors in the system.
2) Based on calculations from API 5C3, using a wall tolerance of +/-10%
3) Based on ultimate strength burst calculations from API 5C3
4) Based on yield strength collapse calculations from API 5C3

Adjustment factors for working pressure limits¹

Pw = reference working pressure rating for TP 316L at 100°F (38°C). To determine working pressure for grade/temperature combination, multiply Pw by adjustment factor.

Grade	100°F (38°C)	200°F (93°C)	300°F (149°C)	400°F (204°C)
TP 316L, seamless	1	0.87	0.7	0.63
TP 316L, welded	0.85	0.74	0.6	0.54
Alloy 825, seamless	1.33	1.17	1.1	1.03
Alloy 825, welded	1.13	1.99	1.94	0.88

1) Adjustment factors based on allowable stress in ASME.

Adjustment factors for burst pressure limits¹

Pb = reference burst pressure for TP 316L at 100°F. To determine burst pressure for grade/temperature combination, multiply Pb by adjustment factor.

Grade	100°F (38°C)	200°F (93°C)	300°F (149°C)	400°F (204°C)
TP 316L, seamless	1	0.93	0.87	0.8
TP 316L, welded	0.85	0.79	0.74	0.68
Alloy 825, seamless	1.13	1.07	1	0.87
Alloy 825, welded	0.96	0.91	0.85	0.74

1) Adjustment factors based on ultimate strength in ASME.

Stainless Steel Coiled Tubing Material Grades

U.S.A.	GERMANY	GERMANY	FRANCE	JAPAN	ITALY	SWEDEN	U.K.	E.U.	SPAIN	RUSSIA
AISI	DIN 17006	W.N. 17007	AFNOR	JIS	UNI	SIS	BSI	EURONORM	-	-
201	-	-	-	SUS 201	-	-	-	-	-	-
301	X 12 CrNi 17 7	1.4310	Z 12 CN 17-07	SUS 301	X 12 CrNi 1707	23 31	301S21	X 12 CrNi 17 7	X 12 CrNi 17-07	-
302	X 5 CrNi 18 7	1.4319	Z 10 CN 18-09	SUS 302	X 10 CrNi 1809	23 31	302S25	X 10 CrNi 18 9	X 10 CrNi 18-09	12KH18N9
303	X 10 CrNiS 18 9	1.4305	Z 10 CNF 18-09	SUS 303	X 10 CrNiS 1809	23 46	303S21	X 10 CrNiS 18 9	X 10 CrNiS 18-09	-
303 Se	-	-	Z 10 CNF 18-09	SUS 303 Se	X 10 CrNiS 1809	-	303S41	-	X 10 CrNiS 18-09	12KH18N10E
304	X 5 CrNi 18 10 X 5 CrNi 18 12	1.4301 1.4303	Z 6 CN 18-09	SUS 304	X 5 CrNi 1810	23 32	304S15 304S16	X 6 CrNi 18 10	X 6 CrNi 19-10	08KH18N10 06KH18N11
304 N	-	-	-	SUS 304N1	X 5 CrNiN 1810	-	-	-	-	-
304 H	-	-	-	SUS F 304H	X 8 CrNi 1910	-	-	-	X 6 CrNi 19-10	-
304 L	X 2 CrNi 18 11	1.4306	Z 2 CN 18-10	SUS 304L	X 2 CrNi 1911	23 52	304S11	X 3 CrNi 18 10	X 2 CrNi 19-10	03KH18N11
-	X 2 CrNiN 18 10	1.4311	Z 2 CN 18-10-Az	SUS 304LN	X 2 CrNiN 1811	23 71	-	-	-	-
305	-	-	Z 8 CN 18-12	SUS 305	X 8 CrNi 1812	23 33	305S19	X 8 CrNi 18 12	X 8 CrNi 18-12	-
-	-	-	Z 6 CNU 18-10	SUS XM7	-	-	-	X 6 CrNiCu 18 10 4 Kd	-	-
309	X 15 CrNiS 20 12	1.4828	Z 15 CN 24-13	SUH 309	X 16 CrNi 2314	-	309S24	X 15 CrNi 23 13	-	-
309 S	-	-	-	SUS 309S	X 6 CrNi 2314	-	-	X 6 CrNi 22 13	-	-
310	X 12 CrNi 25 21	1.4845	-	SUH 310	X 22 CrNi 2520	-	310S24	-	-	20KH23N18
310 S	X 12 CrNi 25 20	1.4842	Z 12 CN 25-20	SUS 310S	X 5 CrNi 2520	23 61	-	X 6 CrNi 25 20	-	10KH23N18
314	X 15 CrNiSi 25 20	1.4841	Z 12 CNS 25-20	-	X 16 CrNiSi 2520	-	-	X 15 CrNiSi 25 20	-	20KH25N20S2
316	X 5 CrNiMo 17 12 2	1.4401	Z 6 CND 17-11	SUS 316	X 5 CrNiMo 1712	23 47	316S31	X 6 CrNiMo 17 12 2	X 6 CrNiMo 17-12-03	-
316	X 5 CrNiMo 17 13 3	1.4436	Z 6 CND 17-12	SUS 316	X 5 CrNiMo 1713	23 43	316S33	X 6 CrNiMo 17 13 3	X 6 CrNiMo 17-12-03	-
316 F	X 12 CrNiMoS 18 11	1.4427	-	-	-	-	-	-	-	-
316 N	-	-	-	SUS 316N	-	-	-	-	-	-
316 H	-	-	-	SUS F 316H	X 8 CrNiMo 1712	-	-	-	X 5 CrNiMo 17-12	-
316 H	-	-	-	-	X 8 CrNiMo 1713	-	-	-	X 6 CrNiMo 17-12-03	-
316 L	X 2 CrNiMo 17 13 2	1.4404	Z 2 CND 17-12	SUS 316L	X 2 CrNiMo 1712	23 48	316S11	X 3 CrNiMo 17 12 2	X 2 CrNiMo 17-12-03	03KH17N14M2
-	X 2 CrNiMoN 17 12 2	1.4406	Z 2 CND 17-12-Az	SUS 316LN	X 2 CrNiMoN 1712	-	-	-	-	-
316 L	X 2 CrNiMo 18 14 3	1.4435	Z 2 CND 17-13	-	X 2 CrNiMo 1713	23 53	316S13	X 3 CrNiMo 17 13 3	X 2 CrNiMo 17-12-03	03KH16N15M3
-	X 2 CrNiMoN 17 13 3	1.4429	Z 2 CND 17-13-Az	-	X 2 CrNiMoN 1713	23 75	-	-	-	-
-	X 6 CrNiMoTi 17 12 2	1.4571	Z6 CNDT 17-12	-	X 6 CrNiMoTi 1712	23 50	320S31	X 6 CrNiMoTi 17 12 2	X 6 CrNiMoTi 17-12-03	08KH17N13M2T 10KH17N13M2T
-	X 10 CrNiMoTi 18 12	1.4573	-	-	X 6 CrNiMoTi 1713	-	320S33	X 6 CrNiMoTI 17 13 3	X 6 CrNiMoTi 17-12-03	08KH17N13M2T 10KH17N13M2T
-	X 6 CrNiMoNb 17 12 2	1.4580	Z 6 CNDNb 17-12	-	X 6 CrNiMoNb 1712	-	-	X 6 CrNiMoNb 17 12 2	-	08KH16N13M2B
-	X 10 CrNiMoNb 18 12	1.4583	-	-	X 6 CrNiMoNb 1713	-	-	X 6 CrNiMoNb 17 13 3	-	09KH16N15M3B
317	-	-	-	SUS 317	X 5 CrNiMo 1815	23 66	317S16	-	-	-
317 L	X 2 CrNiMo 18 16 4	1.4438	Z 2 CND 19-15	SUS 317L	X 2 CrNiMo 1815	23 67	317S12	X 3 CrNiMo 18 16 4	-	-
317 L	X 2 CrNiMo 18 16 4	1.4438	Z 2 CND 19-15	SUS 317L	X 2 CrNiMo 1816	23 67	317S12	X 3 CrNiMo 18 16 4	-	-
330	X 12 NiCrSi 36 16	1.4864	Z 12NCS 35-16	SUH 330	-	-	-	-	-	-
321	X 6 CrNiTi 18 10 X 12 CrNiTi 18 9	1.4541 1.4878	Z 6 CNT 18-10	SUS 321	X 6 CrNiTi 1811	23 37	321S31	X 6 CrNiTi 18 10	X 6 CrNiTi 18-11	08KH18N10T
321 H	-	-	-	SUS 321H	X 8 CrNiTi 1811	-	321S20	-	X 7 CrNiTi 18-11	12KH18N10T
329	X 8 CrNiMo 27 5	1.4460	-	SUS 329J1	-	23 24	-	-	-	-
347	X 6 CrNiNb 18 10	1.4550	Z 6 CNNb 18-10	SUS 347	X 6 CrNiNb 1811	23 38	347S31	X 6 CrNiNb 18 10	X 6 CrNiNb 18-11	08KH18N12B
347 H	-	-	-	SUS F 347H	X 8 CrNiNb 1811	-	-	-	X 7 CrNiNb 18-11	-
904L	-	1.4939	Z 12 CNDV 12-02	-	-	-	-	-	-	-
UNS31803	X 2 CrNiMoN 22 5	1.4462	-	-	-	-	-	-	-	-
UNS32760	X 3 CrNiMoN 25 7	1.4501	Z 3 CND 25-06Az	-	-	-	-	-	-	-
403	X 6 Cr 13 X 10 Cr 13 X 15 Cr 13	1.4000 1.4006 1.4024	Z 12 C 13	SUS 403	X 12 Cr 13	23 02	403S17	X 10 Cr 13 X 12 Cr 13	X 6 Cr 13	12Kh13
405	X 6 CrAl 13	1.4002	Z 6 CA 13	SUS 405	X 6 CrAl 13	-	405S17	X 6 CrAl 13	X 6 CrAl 13	-
-	X 10 CrAl 7	1.4713	Z 8 CA 7	-	-	-	-	X 10 CrAl 7	-	-
-	X 10 CrAl 13	1.4724	-	-	X 10 CrAl 12	-	-	-	-	10Kh13SYu
-	X 10 CrAl 18	1.4742	-	-	-	-	-	X 10 CrSiAl 18	-	15Kh18SYu
409	X 6 CrTi 12	1.4512	Z 6 CT 12	SUH 409	X 6 CrTi 12	-	409S19	X 5 CrTi 12	-	-
-	-	-	-	-	X 2 CrTi 12	-	-	-	-	-
410	X 6 Cr 13 X 10 Cr 13 X 15 Cr 13	1.4000 1.4006 1.4024	Z 10 C 13 Z 12 C 13	SUS 410	X 12 Cr 13	23 02	410S21	X 12 Cr 13	X 12 Cr 13	12Kh13
410 S	X 6 Cr 13	1.4000	Z 6 C 13	SUS 410S	X 6 Cr 13	23 01	403S17	X 6 Cr 13	-	08Kh13

Factory Overview

Quality Advantage

The quality of our products for the control line in the oil and gas sector is assured not just during the controlled manufacturing process but also by way of finished product testing. Typical tests include:

1. Non-destructive tests
2. Hydrostatic tests
3. Surface finish controls
4. Dimensional accuracy measurements
5. Flare and coning tests
6. Mechanical and chemical property testing

Application of Capillary Tube

1) Medical device industry
2) Temperature-guided industrial temperature control, sensor tubes, thermometer tubes
3) Pen care industry core tubes
4) Micro-tube antennas, various types of small precision stainless steel antennas
5) Electronic small-diameter stainless steel capillaries
6) Jewelry needle punches
7) Watches, picture tubes
8) Car antenna tubes, bar antenna tubes, antenna tubes
9) Laser engraving equipment stainless steel tubes
10) Fishing gear, accessories, rod components
11) Diet industry stainless steel capillaries
12) All types of mobile phone and computer styluses
13) Heating pipe industry, oil industry
14) Printers, silent box needles
15) Double-melt stainless steel tubes used in window couplers
16) Various industrial small-diameter precision stainless steel tubes
17) Precision dispensing stainless steel needles
18) Microphone, headphone and communication instrument tubes, etc.

Frequently Asked Questions (FAQ)

Q1: What are the main applications of stainless steel capillary tubes?

A1: Capillary tubes are widely used in medical treatments, fiber-optics, pen making, electronics welding, heat exchangers, temperature control sensors, watchmaking, and precision instrumentation.

Q2: Which material grades are available for coiled tubing?

A2: Standard grades include 304, 304L, 316L (UNS S31603), Duplex 2205 (UNS S32205 & S31803), Super Duplex 2507 (UNS S32750), Incoloy 825 (UNS N08825), and Inconel 625 (UNS N06625). Other custom nickel alloys and duplex grades are available on request.

Q3: How are working pressure limits adjusted for high-temperature environments?

A3: Working pressure limits are adjusted by multiplying the reference pressure rating (at 100°F/38°C) by a specific grade and temperature adjustment factor. For example, seamless TP 316L has an adjustment factor of 0.87 at 200°F (93°C) and 0.70 at 300°F (149°C).

Q4: What dimensional sizes and tolerances do you provide for coiled tubing?

A4: Outer diameters range from 3mm (0.118’’) to 25.4mm (1.00’’) with wall thicknesses from 0.5mm (0.020’’) to 3mm (0.118’’). Precision tolerance ranges down to ±0.01mm for specific diameters.

Q5: What tests are performed to ensure the quality of control line tubing?

A5: To guarantee high performance, the tubing undergoes non-destructive tests, hydrostatic tests, surface finish controls, dimensional accuracy measurements, flare/coning tests, as well as mechanical and chemical property testing.

Q6: What makes the capillary tubes optimized for sensor and measurement applications?

A6: The capillary tubes feature exceptionally clean inner surfaces free from oil, grease, and other particulates. This ensures an optimized, even, and unobstructed flow of liquids and gases to the measuring instruments.
