China AISI Inconel 625 stainless steel capillary tubing Factories, Pricelist

1.Production standards: ASTM A269/A249 2.Stainless steel material :304 304L 316L(UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) 3. Size range: diameter 3MM(0.118”-25.4(1.0”)MM 4. Wall thicknesses: 0.5mm (0.020’’) to 3mm (0.118’’) 5.General delivery pipe status: half hard / soft bright annealing 6.The tolerance range: diameter: + 0.1mm, wall thickness: + 10%, length: -0/+6mm 7.Coil lengthsup to: 500MM-13500MM (45000feet)(can be adjusted according to customer requirements)

Send Inquiry

Product Description

Manufacturing Range

Stainless Steel Coil Tube Stainless Steel Tube Coil Stainless Steel Coil Tubing Stainless Steel Coil Pipe Stainless Steel Coil Tube Suppliers Stainless Steel Coil Tube Manufacturers Stainless Steel Pipe Coil

Stainless steel capillary and stainless steel small tubes are widely used in medical treatment, fiber-optic, pen making, electronic welding products, light cable joints, food, vintage, dairy, drinks, pharmacy, and biochemistry. Different lengths can be provided according to specific requests.

Key Feature: Capillary tubes with a maximum bore of 0.0158 in. are available in a wide range of stainless steels. These capillary tubes are characterized by tight tolerances, and the inside surface of the tubes is free from oil, grease, and other particles. This ensures an optimized and even flow of liquids and gases from the sensor to the measuring instrument.

Stainless steel coiled tubing is available in a range of different product forms depending on customer requirements. We manufacture welded and seamless tube products. The standard grades include 304, 304L, 316L (UNS S31603), Duplex 2205 (UNS S32205 & S31803), Super Duplex 2507 (UNS S32750), Incoloy 825 (UNS N08825), Inconel 625 (UNS N06625). Other grades of stainless steel in duplex, superduplex, and nickel alloy are available on request.

Diameter from 3mm (0.118’’) to 25.4mm (1.00’’) OD. Wall thickness from 0.5mm (0.020’’) to 3mm (0.118’’). Tubing can be supplied in the annealed or cold worked stainless steel control line pipe condition.

Specification

Thickness	0.1-2.0mm
Diameter	0.3-20mm (tolerance: ±0.01mm)
Stainless Grade	201, 202, 304, 304L, 316L, 317L, 321, 310s, 254mso, 904L, 2205, 625, etc.
Surface Finish	Inside and outside are both bright annealing, cleaning, and seamless, no leaks.
Standard	ASTM A269-2002, JIS G4305, GB/T 12770-2002, GB/T12771-2002
Length	200-1500m per coil, or as customer required
Stock size	61mm, 80.5mm, 80.6mm, 80.8mm, 80.9mm, 81mm, 9.51mm, 101mm, etc.
Certificate	ISO & BV
Packing way	Woven bags, plastic bags, etc.
Application range	Widely used in the food industry, beverage equipment, beer machines, heat exchangers, milk/water supply systems, medical equipment, solar energy, aviation, aerospace, communications, oil, and other industries.
Note	OEM / ODM / Buyer Label accepted.

Size of Stainless Steel Coil Tube

ITEM	Grade	Size (MM)	Pressure (Mpa)	Length (M)
1	316L, 304L, 304 alloy 625 825 2205 2507	1/8″×0.025″	3200	500-35000
2	316L, 304L, 304 alloy 625 825 2205 2507	1/8″×0.035″	3200	500-35000
3	316L, 304L, 304 alloy 625 825 2205 2507	1/4″×0.035″	2000	500-35000
4	316L, 304L, 304 alloy 625 825 2205 2507	1/4″×0.049″	2000	500-35000
5	316L, 304L, 304 alloy 625 825 2205 2507	3/8″×0.035″	1500	500-35000
6	316L, 304L, 304 alloy 625 825 2205 2507	3/8″×0.049″	1500	500-35000
7	316L, 304L, 304 alloy 625 825 2205 2507	1/2″×0.049″	1000	500-35000
8	316L, 304L, 304 alloy 625 825 2205 2507	1/2″×0.065″	1000	500-35000
9	316L, 304L, 304 alloy 625 825 2205 2507	φ3mm×0.7mm	3200	500-35000
10	316L, 304L, 304 alloy 625 825 2205 2507	φ3mm×0.9mm	3200	500-35000
11	316L, 304L, 304 alloy 625 825 2205 2507	φ4mm×0.9mm	3000	500-35000
12	316L, 304L, 304 alloy 625 825 2205 2507	φ4mm×1.1mm	3000	500-35000
13	316L, 304L, 304 alloy 625 825 2205 2507	φ6mm×0.9mm	2000	500-35000
14	316L, 304L, 304 alloy 625 825 2205 2507	φ6mm×1.1mm	2000	500-35000
15	316L, 304L, 304 alloy 625 825 2205 2507	φ8mm×1mm	1800	500-35000
16	316L, 304L, 304 alloy 625 825 2205 2507	φ8mm×1.2mm	1800	500-35000
17	316L, 304L, 304 alloy 625 825 2205 2507	φ10mm×1mm	1500	500-35000
18	316L, 304L, 304 alloy 625 825 2205 2507	φ10mm×1.2mm	1500	500-35000
19	316L, 304L, 304 alloy 625 825 2205 2507	φ10mm×2mm	500	500-35000
20	316L, 304L, 304 alloy 625 825 2205 2507	φ12mm×1.5mm	500	500-35000

Pressure Tables

Selection of the appropriate material for any given control or chemical injection line is subject to the prevailing operational and site conditions. In order to assist in the selection, the following tables provide internal pressure ratings and the adjustment factors for a range of common grades and sizes of seamless and laser welded stainless tubing.

Maximum pressure (P) for TP 316L at 100°F (38°C)

Please refer to grade and product form adjustment factors below.

Outside diameter, in.	Wall thickness, in.	Working pressure, psi (MPa)	Burst pressure, psi (MPa)	Collapse pressure, psi (MPa)
1/4	0.035	6,600 (46)	22,470 (155)	6,600 (46)
1/4	0.049	9,260 (64)	27,400 (189)	8,710 (60)
1/4	0.065	12,280 (85)	34,640 (239)	10,750 (74)
3/8	0.035	4,410 (30)	19,160 (132)	4,610 (32)
3/8	0.049	6,170 (43)	21,750 (150)	6,220 (43)
3/8	0.065	8,190 (56)	25,260 (174)	7,900 (54)
3/8	0.083	10,450 (72)	30,050 (207)	9,570 (66)
1/2	0.049	4,630 (32)	19,460 (134)	4,820 (33)
1/2	0.065	6,140 (42)	21,700 (150)	6,200 (43)
1/2	0.083	7,840 (54)	24,600 (170)	7,620 (53)
5/8	0.049	3,700 (26)	18,230 (126)	3,930 (27)
5/8	0.065	4,900 (34)	19,860 (137)	5,090 (35)
5/8	0.083	6,270 (43)	26,910 (151)	6,310 (44)
3/4	0.049	3,080 (21)	17,470 (120)	3,320 (23)
3/4	0.065	4,090 (28)	18,740 (129)	4,310 (30)
3/4	0.083	5,220 (36)	20,310 (140)	5,380 (37)

1) Estimates only. Actual pressures should be calculated considering all stress factors in the system.
2) Based on calculations from API 5C3, using a wall tolerance of +/-10%
3) Based on ultimate strength burst calculations from API 5C3
4) Based on yield strength collapse calculations from API 5C3

Adjustment factors for working pressure limits

Pw = reference working pressure rating for TP 316L at 100°F (38°C). To determine working pressure for grade/temperature combination, multiply Pw by adjustment factor.

Grade	100°F (38°C)	200°F (93°C)	300°F (149°C)	400°F (204°C)
TP 316L, seamless	1	0.87	0.7	0.63
TP 316L, welded	0.85	0.74	0.6	0.54
Alloy 825, seamless	1.33	1.17	1.1	1.03
Alloy 825, welded	1.13	1.99	1.94	0.88

1) Adjustment factors based on allowable stress in ASME.

Adjustment factors for burst pressure limits

Pb = reference burst pressure for TP 316L at 100°F. To determine burst pressure for grade/temperature combination, multiply Pb by adjustment factor.

Grade	100°F (38°C)	200°F (93°C)	300°F (149°C)	400°F (204°C)
TP 316L, seamless	1	0.93	0.87	0.8
TP 316L, welded	0.85	0.79	0.74	0.68
Alloy 825, seamless	1.13	1.07	1	0.87
Alloy 825, welded	0.96	0.91	0.85	0.74

1) Adjustment factors based on ultimate strength in ASME.

Stainless Steel Coiled Tubing / Coiled Tubes Material Grade

U.S.A. AISI	GERMANY DIN 17006	GERMANY W.N. 17007	FRANCE AFNOR	JAPAN JIS	ITALY UNI	SWEDEN SIS	U.K. BSI	E.U. EURONORM
201	-	-	-	SUS 201	-	-	-	-
301	X 12 CrNi 17 7	1.4310	Z 12 CN 17-07	SUS 301	X 12 CrNi 1707	23 31	301S21	X 12 CrNi 17 7
302	X 5 CrNi 18 7	1.4319	Z 10 CN 18-09	SUS 302	X 10 CrNi 1809	23 31	302S25	X 10 CrNi 18 9
303	X 10 CrNiS 18 9	1.4305	Z 10 CNF 18-09	SUS 303	X 10 CrNiS 1809	23 46	303S21	X 10 CrNiS 18 9
303 Se	-	-	Z 10 CNF 18-09	SUS 303 Se	X 10 CrNiS 1809	-	303S41	-
304	X 5 CrNi 18 10 / X 5 CrNi 18 12	1.4301 / 1.4303	Z 6 CN 18-09	SUS 304	X 5 CrNi 1810	23 32	304S15 / 304S16	X 6 CrNi 18 10
304 N	-	-	-	SUS 304N1	X 5 CrNiN 1810	-	-	-
304 H	-	-	-	SUS F 304H	X 8 CrNi 1910	-	-	-
304 L	X 2 CrNi 18 11	1.4306	Z 2 CN 18-10	SUS 304L	X 2 CrNi 1911	23 52	304S11	X 3 CrNi 18 10
-	X 2 CrNiN 18 10	1.4311	Z 2 CN 18-10-Az	SUS 304LN	X 2 CrNiN 1811	23 71	-	-
305	-	-	Z 8 CN 18-12	SUS 305	X 8 CrNi 1812	23 33	305S19	X 8 CrNi 18 12
-	-	-	Z 6 CNU 18-10	SUS XM7	-	-	-	X 6 CrNiCu 18 10 4 Kd
309	X 15 CrNiS 20 12	1.4828	Z 15 CN 24-13	SUH 309	X 16 CrNi 2314	-	309S24	X 15 CrNi 23 13
309 S	-	-	-	SUS 309S	X 6 CrNi 2314	-	-	X 6 CrNi 22 13
310	X 12 CrNi 25 21	1.4845	-	SUH 310	X 22 CrNi 2520	-	310S24	-
310 S	X 12 CrNi 25 20	1.4842	Z 12 CN 25-20	SUS 310S	X 5 CrNi 2520	23 61	-	X 6 CrNi 25 20
314	X 15 CrNiSi 25 20	1.4841	Z 12 CNS 25-20	-	X 16 CrNiSi 2520	-	-	X 15 CrNiSi 25 20
316	X 5 CrNiMo 17 12 2	1.4401	Z 6 CND 17-11	SUS 316	X 5 CrNiMo 1712	23 47	316S31	X 6 CrNiMo 17 12 2
316L	X 2 CrNiMo 17 13 2	1.4404	Z 2 CND 17-12	SUS 316L	X 2 CrNiMo 1712	23 48	316S11	X 3 CrNiMo 17 12 2
321	X 6 CrNiTi 18 10	1.4541	Z 6 CNT 18-10	SUS 321	X 6 CrNiTi 1811	23 37	321S31	X 6 CrNiTi 18 10
904L	-	1.4939	Z 12 CNDV 12-02	-	-	-	-	-

Factory Overview

Quality Advantage

The quality of our products for the control line in the oil and gas sector is assured not just during the controlled manufacturing process but also by way of finished product testing. Typical tests include:

Non-destructive tests
Hydrostatic tests
Surface finish controls
Dimensional accuracy measurements
Flare and coning tests
Mechanical and chemical property testing

Application of Capillary Tube

1) Medical device industry	10) Fishing gear, accessories, Yugan out with possession of
2) Temperature-guided industrial temperature control, sensors used pipe, tube thermometer	11) Diet with stainless steel capillary
3) Pens care industry core tube	12) All types of mobile phone stylus and computer stylus
4) Micro-tube antenna, various types of small precision stainless steel antenna	13) Heating pipe industry, oil industry
5) With a variety of electronic small-diameter stainless steel capillary	14) Printers, silent box needle
6) Jewelry needle punch	15) Pull a double-melt stainless steel tube used in window-coupled
7) Watches, picture	16) A variety of industrial small diameter precision stainless steel tubes
8) Car antenna tube, bar antennas using tubes, antenna tube	17) Precision dispensing with stainless steel needles
9) Laser engraving equipment to use stainless steel tube	18) Microphone, headphones and microphone to use stainless steel tube, etc.

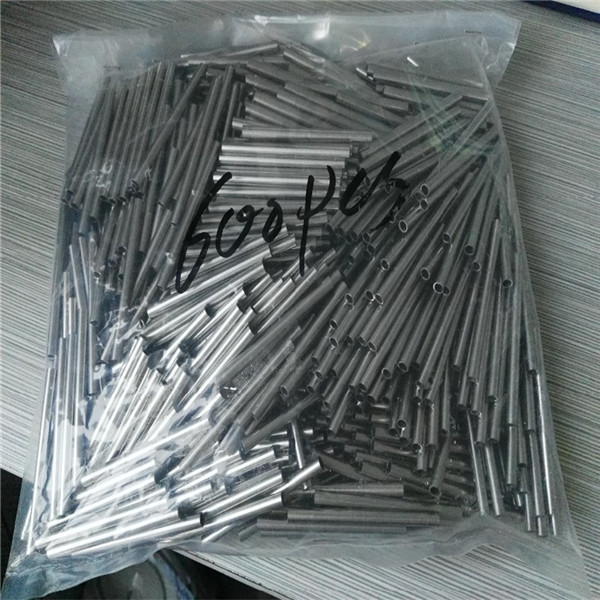

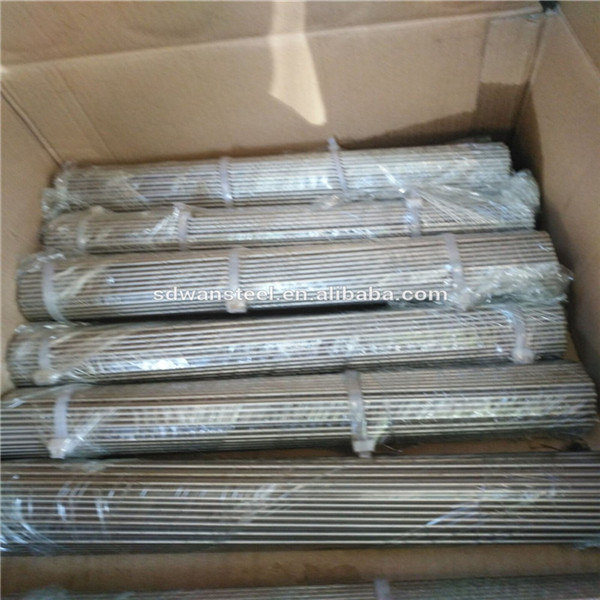

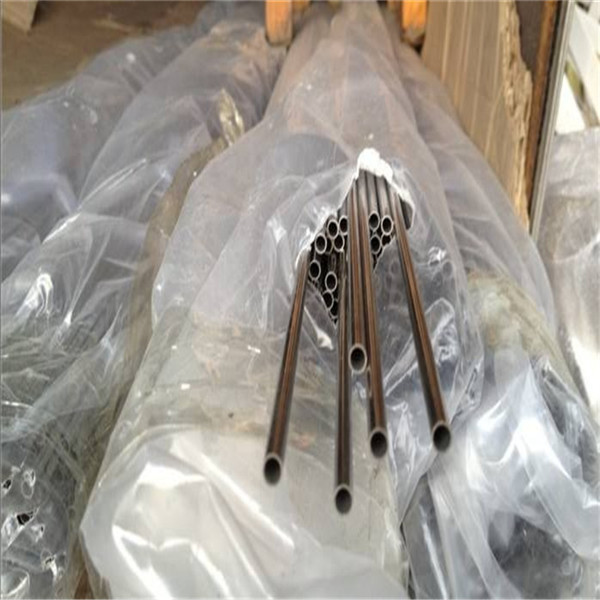

Packaging & Delivery

Frequently Asked Questions (FAQ)

What are the main application areas for stainless steel capillary tubes?

Stainless steel capillary tubes are widely utilized in high-precision fields such as medical instruments, temperature control sensors, industrial thermometers, electronic components, pen making, communication antennas, micro-dispensing needles, and micro-flow systems for liquids and gases.

Which material grades are available for your coiled tubing?

We offer coiled tubing in a wide selection of grades, including standard Austenitic stainless steels like 304, 304L, 316L, 317L, 321, and 310S, Duplex/Super Duplex options like 2205 and 2507, and high-performance nickel alloys such as Incoloy 825 and Inconel 625.

What size ranges can you produce for coiled control lines?

Our production capacity covers outside diameters (OD) from 3mm (0.118’’) to 25.4mm (1.00’’) with wall thicknesses ranging from 0.5mm (0.020’’) up to 3mm (0.118’’). Lengths can be customized from 200m to 1500m per coil, and up to 35,000m for special requirements.

How does temperature affect the working pressure limits of TP 316L tubing?

As temperatures rise, the allowable working pressure of the tubing decreases. For example, using the standard adjustment factors, seamless TP 316L retains 100% of its rated pressure at 100°F (38°C), but it drops to 87% at 200°F (93°C) and down to 63% at 400°F (204°C).

What quality testing procedures do the finished tubes undergo?

To ensure complete safety and accuracy, we conduct a variety of critical evaluations on finished products. These include Non-destructive testing (NDT), Hydrostatic pressure tests, surface finish checks, dimensional tolerance accuracy verification, flare/coning tests, and full mechanical and chemical property analyses.
