Stainless steels are known as high-alloy steels. They are classified into ferritic, austenitic, and martensitic steels based on their crystalline structure.
Grade 310S stainless steel is superior to 304 or 309 stainless steel in most environments because it has high nickel and chromium content. It exhibits high corrosion resistance and strength in temperatures up to 1149°C (2100°F). The following datasheet provides more details about grade 310S stainless steel.
The following table shows the chemical composition of grade 310S stainless steel.
| Element | Content (%) |
|---|---|
| Iron, Fe | 54 |
| Chromium, Cr | 24-26 |
| Nickel, Ni | 19-22 |
| Manganese, Mn | 2 |
| Silicon, Si | 1.50 |
| Carbon, C | 0.080 |
| Phosphorous, P | 0.045 |
| Sulfur, S | 0.030 |
The physical properties of grade 310S stainless steel are displayed in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8 g/cm³ | 0.289 lb/in³ |
| Melting point | 1455°C | 2650°F |
The following table outlines the mechanical properties of grade 310S stainless steel.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 515 MPa | 74695 psi |
| Yield strength | 205 MPa | 29733 psi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Poisson's ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation | 40% | 40% |
| Reduction of area | 50% | 50% |
| Hardness | 95 | 95 |
The thermal properties of grade 310S stainless steel are given in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Thermal conductivity (for stainless 310) | 14.2 W/mK | 98.5 BTU in/hr ft².°F |
Other designations equivalent to grade 310S stainless steel are listed in the following table.
| AMS 5521 | ASTM A240 | ASTM A479 | DIN 1.4845 |
| AMS 5572 | ASTM A249 | ASTM A511 | QQ S763 |
| AMS 5577 | ASTM A276 | ASTM A554 | ASME SA240 |
| AMS 5651 | ASTM A312 | ASTM A580 | ASME SA479 |
| ASTM A167 | ASTM A314 | ASTM A813 | SAE 30310S |
| ASTM A213 | ASTM A473 | ASTM A814 | SAE J405 (30310S) |

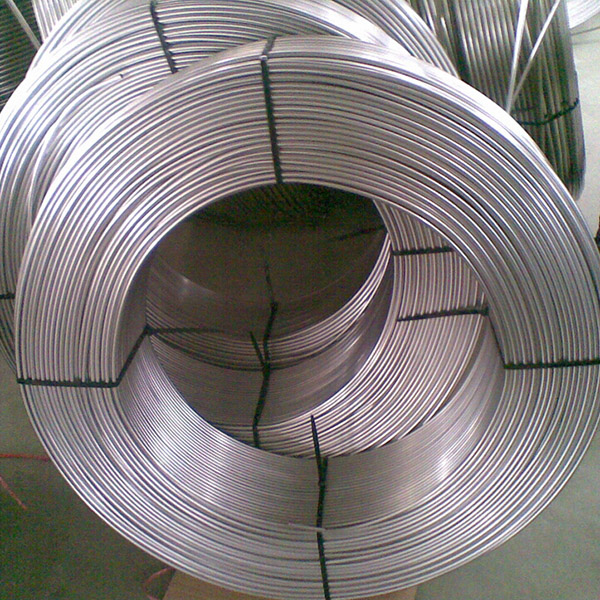

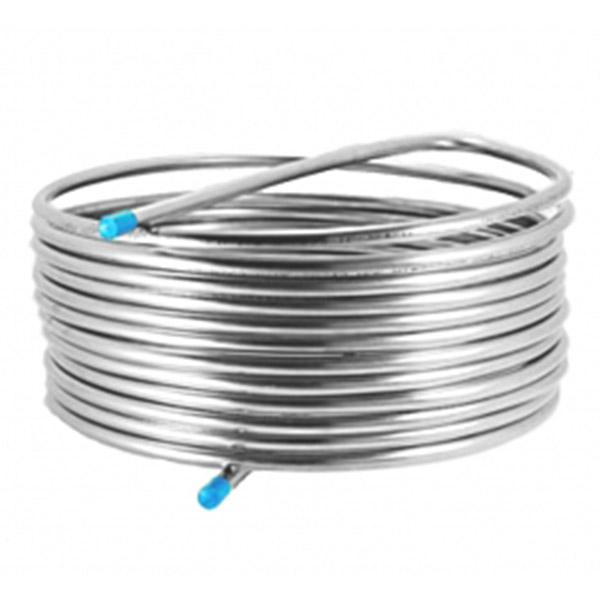

We are a professional manufacturer specializing in the direct marketing of stainless steel coiled tubes, stainless steel pipes, stainless steel condensers, and precision pipes. Our facility features two advanced production lines capable of manufacturing continuous tubing with state-of-the-art equipment.
| ITEM | Grade | Size (MM) | Pressure (Mpa) | Length (M) |
|---|---|---|---|---|
| 1 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | 1/8″ × 0.025″ | 3200 | 500-2000 |
| 2 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | 1/8″ × 0.035″ | 3200 | 500-2000 |
| 3 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | 1/4″ × 0.035″ | 2000 | 500-2000 |
| 4 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | 1/4″ × 0.049″ | 2000 | 500-2000 |
| 5 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | 3/8″ × 0.035″ | 1500 | 500-2000 |
| 6 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | 3/8″ × 0.049″ | 1500 | 500-2000 |
| 7 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | 1/2″ × 0.049″ | 1000 | 500-2000 |
| 8 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | 1/2″ × 0.065″ | 1000 | 500-2000 |
| 9 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | φ3mm × 0.7mm | 3200 | 500-2000 |
| 10 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | φ3mm × 0.9mm | 3200 | 500-2000 |
| 11 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | φ4mm × 0.9mm | 3000 | 500-2000 |
| 12 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | φ4mm × 1.1mm | 3000 | 500-2000 |
| 13 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | φ6mm × 0.9mm | 2000 | 500-2000 |
| 14 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | φ6mm × 1.1mm | 2000 | 500-2000 |
| 15 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | φ8mm × 1mm | 1800 | 500-2000 |
| 16 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | φ8mm × 1.2mm | 1800 | 500-2000 |
| 17 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | φ10mm × 1mm | 1500 | 500-2000 |
| 18 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | φ10mm × 1.2mm | 1500 | 500-2000 |
| 19 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | φ10mm × 2mm | 500 | 500-2000 |
| 20 | 316L, 304L, 304, Alloy 625, 825, 2205, 2507 | φ12mm × 1.5mm | 500 | 500-2000 |
Seamless coiled tubing is the preferred choice in critical applications, eliminating the risk of impurities often associated with welded alternatives.
With more than a decade of experience exporting stainless steel tube products globally, our production history spans over ten years. We utilize two continuous production lines equipped with advanced manufacturing systems. By incorporating world-class online bright annealing technology, we perform inline softening treatments on stainless steel pipes. Furthermore, our strict quality control process covers compression testing, flaring, bending tests, 100% hardness validation, tensile testing, and airtightness testing to ensure reliable quality for global distribution.
Grade 310S contains higher nickel and chromium content, giving it exceptional corrosion resistance and high strength at elevated service temperatures up to 1149°C (2100°F).
Our stainless steel coiled tubes are produced strictly in accordance with ASTM A269 and ASTM A249 standards, ensuring high quality and safety for instrumentation and pressure applications.
We manufacture coiled tubing with outer diameters ranging from 6.52mm up to 20mm, and wall thicknesses from 0.2mm up to 2mm, with custom lengths spanning from 300 to 3500 meters per coil.
Seamless coiled tubing is the optimal choice for critical environments because it lacks welded seams, reducing the risk of impurities, improving system reliability, enhancing corrosion resistance, and minimizing connection fittings to prevent leakage.
All tubes undergo rigorous quality testing, including inline bright annealing, compression tests, flaring and bending tests, 100% hardness validation, tensile strength tests, and airtightness verification.
They are widely applied in petrochemical systems, geothermal and desalination plants, food and beverage processing, boilers, heat exchangers, refrigeration equipment, and oil and gas piping systems.
