China S 31008 stainless steel coil pipe price Manufacturers, Factories

1 / 2

China S 31008 stainless steel coil pipe price Manufacturers, Factories

Specification:stainless steel coiled tube/pipe Grade:201 304 304L 316 316L 2205 2507 625 825 ect Size:6-25.4MM Length:600-3500M/coil Standard:ASTM A269 A249 SUS DIN JIS GB Surface :2B 8k Bright anneald Test :Yield strength, Tensile strength, Hardness ,Hydrapress Measurement Guarantee&Inspection :The Third Party &Cetification Advantage: We are a manufacturer . Lowest Price and Good Quantity

Send Inquiry

Product Description

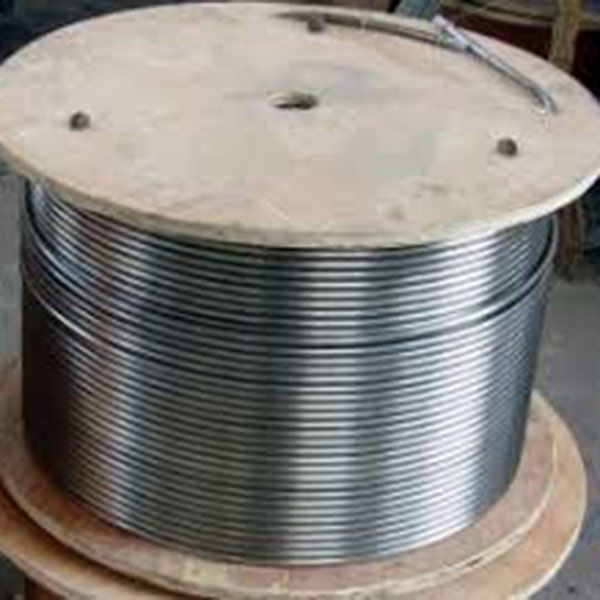

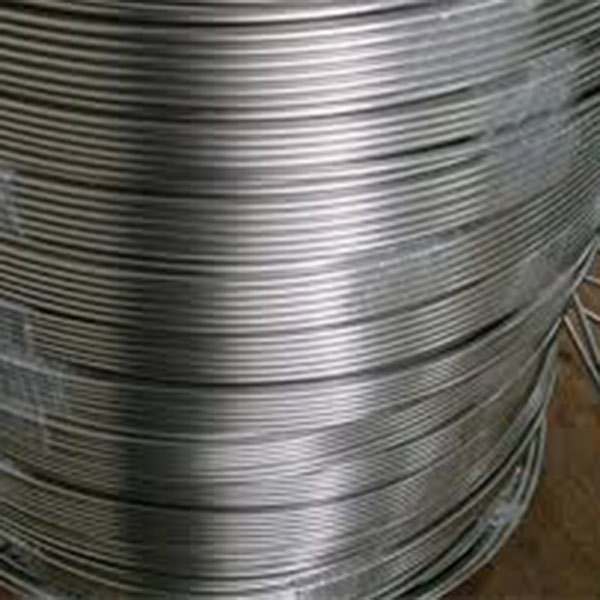

ASTM A269 Alloy 310s Stainless Steel Coil Tubing

Stainless steels are known as high-alloy steels. They are classified into ferritic, austenitic, and martensitic steels based on their crystalline structure.

Grade 310S stainless steel is superior to 304 or 309 stainless steel in most environments because it has high nickel and chromium content. It offers high corrosion resistance and strength in temperatures up to 1149°C (2100°F).

stainless steel coil tube stainless steel tube coil stainless steel coil tubing stainless steel coil pipe alloy 310s stainless steel

Stainless Steel Coiled Tubes & Tubing Specifications

Standards: ASTM A269/A249 standard
Grade: TP304, TP316L, 304, 316, 310S, 2205, 825, 625
Trade Name: SS304 Coiled Tubes, SS316 Coiled Tubes, Duplex Coiled Tubes, Monel 400 Coiled Tubes, Hastelloy Coiled Tubes, Inconel coiled Tubes, 904L Coiled Tubes, Seamless Coiled Tubes, Welded Coiled Tubing
Out diameter: 6.52 - 19.05mm
Wall Thickness: 0.2 - 2MM
Tolerance: OD ± 0.1mm, wall thickness: ±10%, length: ±5mm
Length: 300 - 3500M/coil
Packaging: Iron pallet, wooden pallet, poly bag
Application: Refrigeration equipment, evaporator, gas liquid delivery, condenser, beverage machine
State: Soft / half hard / soft bright annealing
Specifications: Outer diameter 6.52mm - 20mm, wall thickness: 0.40mm - 1.5mm
Tolerance Range: Diameter: +0.1mm, wall thickness: +10%, length: -0/+6mm
Length Options: 800 - 3500M or customizable
Product Advantages: Polished surface, fine finish, uniform wall thickness, high tolerance precision

Chemical Composition of Stainless Steel 310/310S Coiled Tubing

Element	Content (%)
Iron, Fe	54
Chromium, Cr	24-26
Nickel, Ni	19-22
Manganese, Mn	2
Silicon, Si	1.50
Carbon, C	0.080
Phosphorous, P	0.045
Sulfur, S	0.030

Physical Properties

Properties	Metric	Imperial
Density	8 g/cm³	0.289 lb/in³
Melting point	1455°C	2650°F

Thermal Properties

Properties	Metric	Imperial
Thermal conductivity (for stainless 310)	14.2 W/mK	98.5 BTU in/hr ft².°F

Mechanical Properties of Grade 310S

Properties	Metric	Imperial
Tensile strength	515 MPa	74695 psi
Yield strength	205 MPa	29733 psi
Elastic modulus	190-210 GPa	27557-30458 ksi
Poisson's ratio	0.27-0.30	0.27-0.30
Elongation	40%	40%
Reduction of area	50%	50%
Hardness	95	95

Equivalent Designations

Standard 1	Standard 2	Standard 3	Standard 4
AMS 5521	ASTM A240	ASTM A479	DIN 1.4845
AMS 5572	ASTM A249	ASTM A511	QQ S763
AMS 5577	ASTM A276	ASTM A554	ASME SA240
AMS 5651	ASTM A312	ASTM A580	ASME SA479
ASTM A167	ASTM A314	ASTM A813	SAE 30310S
ASTM A213	ASTM A473	ASTM A814	SAE J405 (30310S)

Export & Production Capability

With experience in exporting stainless steel tube products for more than ten years, the production of stainless steel coil has a ten-year history. Equipped with two production lines that can produce continuous welded pipe, the production equipment is perfect and utilizes leading technology.

By introducing world first-class bright annealing technology, online stainless steel pipe softening treatment is achievable. Comprehensive quality tests are performed, including compressed, flaring, bending tests, 100% hardness tests, stretch tests, and air tightness tests, ensuring reliable quality and exports worldwide.

Common Sizes of Stainless Steel Coiled Tubes

ITEM	Grade	Size (MM)	Pressure (Mpa)	Length (M)
1	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/8″×0.025″	3200	500-2000
2	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/8″×0.035″	3200	500-2000
3	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/4″×0.035″	2000	500-2000
4	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/4″×0.049″	2000	500-2000
5	316L, 304L, 304, alloy 625, 825, 2205, 2507	3/8″×0.035″	1500	500-2000
6	316L, 304L, 304, alloy 625, 825, 2205, 2507	3/8″×0.049″	1500	500-2000
7	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/2″×0.049″	1000	500-2000
8	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/2″×0.065″	1000	500-2000
9	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ3mm×0.7mm	3200	500-2000
10	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ3mm×0.9mm	3200	500-2000
11	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ4mm×0.9mm	3000	500-2000
12	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ4mm×1.1mm	3000	500-2000
13	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ6mm×0.9mm	2000	500-2000
14	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ6mm×1.1mm	2000	500-2000
15	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ8mm×1mm	1800	500-2000
16	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ8mm×1.2mm	1800	500-2000
17	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ10mm×1mm	1500	500-2000
18	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ10mm×1.2mm	1500	500-2000
19	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ10mm×2mm	500	500-2000
20	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ12mm×1.5mm	500	500-2000

Key Advantages

Direct manufacturer control over tubing quality and specifications.
Continuous pipe lengths exceeding 3500M per coil.
In-house bright annealing for precise softening treatments.

Applications of Stainless Steel Coiled Tubing

Food & Beverage Industry
Petrochemical Industry
CNG Piping Installations
Boiler Systems
Desalination Plants
Geothermal Energy Systems
Heat Exchanger Fabrication
Instrumentation Systems
Mechanical Operations
Oil and Gas Equipment and Piping Works

Other Available Grades of Coiled Tubing

Stainless Steel 304, 304L, 304H
Stainless Steel 316, 316L, 316H, 316Ti
Stainless Steel 317L
Stainless Steel 321, 321H
Stainless Steel 347, 347H
Stainless Steel 410
Stainless Steel 904L
Stainless Steel 310, 310S, 310H

Seamless coiled tubing is the premium choice for critical applications as it eliminates the risks of impurities associated with welded tubing options.

Made available in custom lengths
Improved system safety and reliability
Greater overall corrosion resistance
Reduces fitting connections to prevent leaks and long-term joint failures
Lowers total installation costs, requiring less time and manual effort

Frequently Asked Questions (FAQ)

What are the advantages of Grade 310S stainless steel coiled tubing?

Grade 310S contains high nickel and chromium contents, making it superior to 304 or 309 grades. It provides outstanding corrosion resistance and maintains high strength in high-temperature environments up to 1149°C (2100°F).

Why is seamless coiled tubing preferred over welded coiled tubing?

Seamless coiled tubing eliminates the risk of impurities that can occur in welded seams. This improves reliability, enhances corrosion resistance, reduces the number of fittings needed (which minimizes leak risks), and simplifies installation.

What standard and size ranges are available for the coiled pipes?

The coiled pipes comply with ASTM A269 and ASTM A249 standards. Available outer diameters range from 6.52mm to 20mm with wall thicknesses between 0.2mm and 2.0mm. Lengths can reach up to 3500M per coil.

In which industries are stainless steel coiled tubes applied?

They are widely applied in the food and beverage industry, petrochemical processing, CNG piping, boilers, geothermal systems, heat exchangers, instrumentation installations, and oil & gas equipment.

What quality control testing processes are conducted on the tubing?

To guarantee performance, the tubing undergoes compressed testing, flaring tests, bending tests, 100% hardness tests, stretch tests, and air tightness testing.

What alloys and grades are customizable for coiled tubing?

Commonly supplied grades include 304, 304L, 316, 316L, 310S, 321, 347, 904L, duplex 2205, and nickel alloys like Inconel 625, Incoloy 825, and Monel 400.
