China stainless steel coiled tubing Pricelist, Quotes

STAINLESS STEEL TUBING IN COILS stainless steel tubing coil AND ON SPOOLS USED FOR CONTROL LINES, CHEMICAL INJECTION LINES, UMBILICALS AS WELL AS HYDRAULIC AND INSTRUMENTATION SYSTEMS.

SHORT DESCRIPTION:

Specification: stainless steel coiled tube/pipe stainless steel tubing coil Grade: 201 304 304L 316 316L 2205 2507 625 825 ect Size: 6-25.4MM Thickness : 0.2-3MM Length: 600-3500M/coil Standard: ASTM A269 A249 SUS DIN JIS GB Surface : 2B 8k Bright anneald Test : Yield strength, Tensile strength, Hardness ,Hydrapress Measurement Guarantee&Inspection : The Third Party &Cetification Advantage: We are a manufacturer . Lowest Price and Good Quantity

Send Inquiry

Product Description

Stainless steel tubing in coils and on spools used for control lines, chemical injection lines, umbilicals as well as hydraulic and instrumentation systems.

Products Seamless stainless steel coil tube, stainless steel tubing coil

Grade 304, 304L, 316, 316L, alloy 625, alloy 825, 2205, 2507, etc.

Length 300 - 3500M / Coil

Process Method Cold Drawn / Cold Rolled

Surface Finish Bright Annealed / Pickling / 180#, 240#, 320#, 400#, 600# Manual Polished / Mechanical Polished

Standard ASTM (ASME) SA / A312 / A213 / A269 and DIN, GB, JIS

Size O.D. 3/16″ - 1 1/2″ (6mm-38mm), W.T. 0.028″ - 0.118″ (0.7mm-3mm)

Tolerance Outer Diameter: ±0.08mm (0.00315″), Wall Thickness: ±10%

Marking Stainless steel tubing coil as customer's requirement

Certification ISO9001:2000, GB/T19001-2000

Delivery Time In Time As Per Agreement (e.g., 40 Days)

Packing Wrapped with plastic bags and protected with wooden case or iron case (max 1000 kgs per case)

Transportation FOB, CIF, BY SEA, BY AIR

These products are widely used in petrol, chemical, pharmacy, foodstuff, machinery, spaceflight, war industry, hardware, boiler gas, hot-water heating parts, shipping, power and other industries. We can offer stainless steel pipes according to customers' requirements.

304L 304 Stainless Steel Coiled Tubing Sizes

Item	Grade	Size (MM)	Pressure (Mpa)	Length (M)
1	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/8″ × 0.025″	3200	500 - 2000
2	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/8″ × 0.035″	3200	500 - 2000
3	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/4″ × 0.035″	2000	500 - 2000
4	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/4″ × 0.049″	2000	500 - 2000
5	316L, 304L, 304, alloy 625, 825, 2205, 2507	3/8″ × 0.035″	1500	500 - 2000
6	316L, 304L, 304, alloy 625, 825, 2205, 2507	3/8″ × 0.049″	1500	500 - 2000
7	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/2″ × 0.049″	1000	500 - 2000
8	316L, 304L, 304, alloy 625, 825, 2205, 2507	1/2″ × 0.065″	1000	500 - 2000
9	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ3mm × 0.7mm	3200	500 - 2000
10	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ3mm × 0.9mm	3200	500 - 2000
11	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ4mm × 0.9mm	3000	500 - 2000
12	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ4mm × 1.1mm	3000	500 - 2000
13	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ6mm × 0.9mm	2000	500 - 2000
14	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ6mm × 1.1mm	2000	500 - 2000
15	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ8mm × 1mm	1800	500 - 2000
16	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ8mm × 1.2mm	1800	500 - 2000
17	316L, 304L, 304, alloy 625, 825, 2205, 2507, stainless steel coiled tubing	φ10mm × 1mm	1500	500 - 2000
18	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ10mm × 1.2mm	1500	500 - 2000
19	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ10mm × 2mm	500	500 - 2000
20	316L, 304L, 304, alloy 625, 825, 2205, 2507	φ12mm × 1.5mm	500	500 - 200

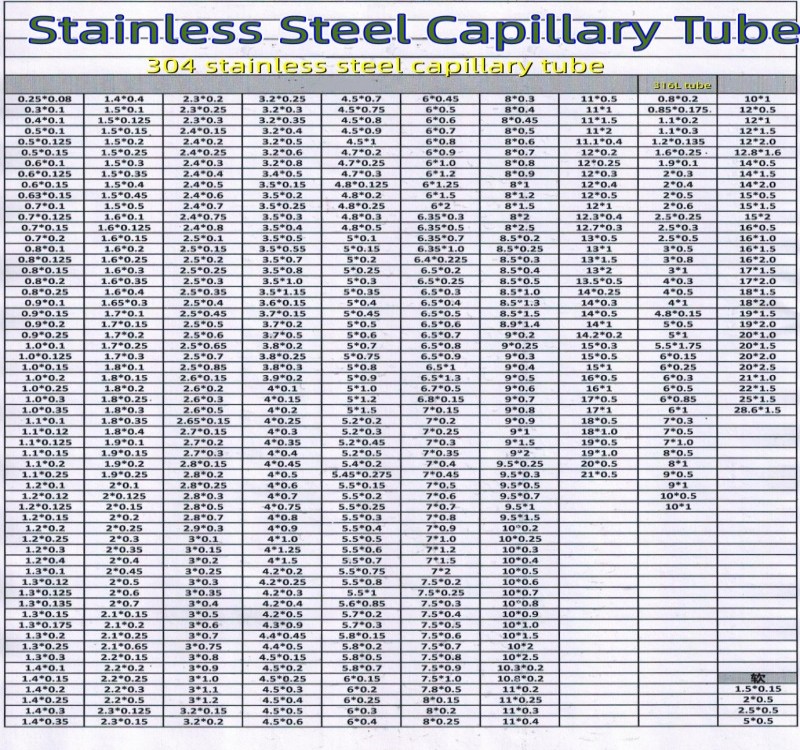

Stainless Steel Capillary Tube Size & Gallery

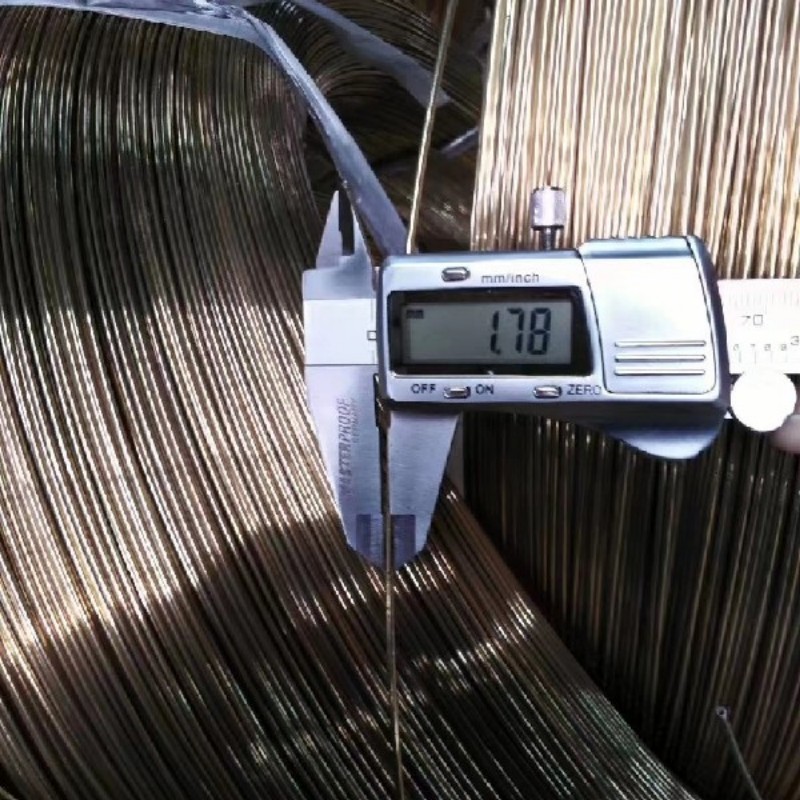

316 stainless steel capillary tubing coils

Stainless steel capillary tubing related products:
304 grade Downhole Chemical Injection Tubing, Stainless steel Capillary Pipe trader, stainless steel Capillary Pipe astm, stainless steel capillary tubing cutter, hplc stainless steel capillary tubing, cutting stainless steel capillary tubing, stainless steel 1/16 in. capillary tubing, weight of stainless steel Capillary pipe per foot, weight of stainless steel Capillary pipe, stainless steel Capillary pipe for sale, stainless steel Capillary Tube weight per foot, Stainless Steel Capillary pipe Suppliers, stainless steel Capillary tubing grades, stainless steel Capillary pipe hs code, stainless steel Capillary pipe weight chart india, stainless steel Capillary tubing metric, stainless steel Capillary tubing properties, stainless steel Capillary pipe section properties, stainless steel Capillary Tube supplier in china, exporter of stainless steel Capillary pipe 304 stainless steel Capillary pipes, stainless steel Capillary pipes distributor, stainless steel Capillary Tube manufacturer in china, ss seamless Capillary Tube stockholder in China, Stainless Steel Capillary Tube Suppliers, seamless Capillary Pipe exporter.

Stainless Steel Coiled Tubing Encapsulation Specifications

Stainless steel coiled tubing can be used as encapsulation tube:
Available materials: Austenitic steel 304L, 316L, Duplex 2205, Super Duplex 2507, Incoloy 825, Inconel 625
OD size: 1/8″; 3/16″; 1/4″; 5/16″; 3/8″; 1/2″
Wall thickness: 0.02″, 0.028″, 0.035″, 0.049″, 0.065″, 0.083″
Encapsulation materials: Santoprene, F40, F46, FEP (Fluorinated Ethylene Propylene), PVC (Polyvinyl chloride), Nylon Encapsulated, etc.
Available Encapsulation shapes: Round Type, Square type, Flatpack

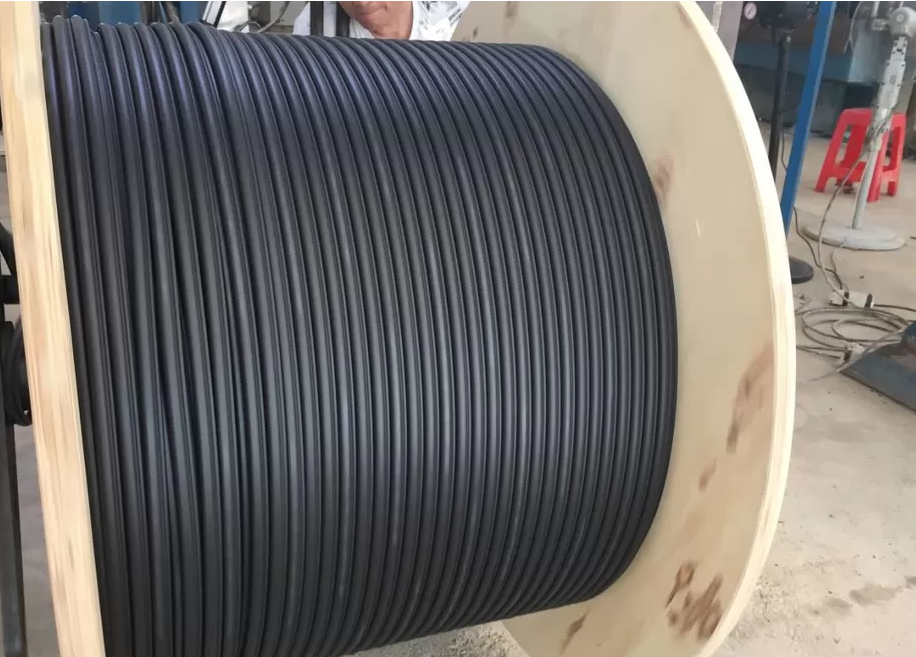

Encapsulated stainless steel coiled tubing

Core Tube Material	Encapsulation Material	OD (inch)	Wall Thickness (inch)	Working Pressure (MPa)	Length (M/Pcs)
Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625)	F40 F46 FEP (Fluorinated Ethylene Propylene) PVC (Polyvinyl chloride) Nylon Encapsulated etc.	1/8”	0.025”, 0.035”, 0.049”	80 – 120	50 – 4000
		1/4”	0.035”, 0.049”, 0.065”	60 – 120	50 – 3000
		3/8”	0.035”, 0.049”, 0.065”	60 – 120	50 – 2500
		1/2”	0.035”, 0.049”, 0.065”	60 – 120	50 – 2000

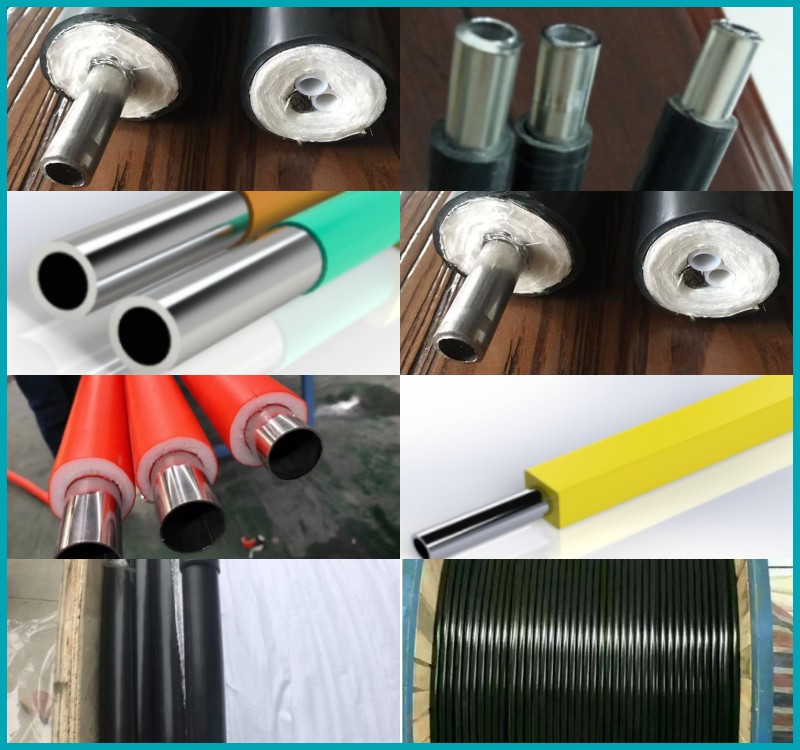

Coiled tubing specifications and dimensions

OD	Wall (inch)	Materials	Standard	Working Pressure (MPa)	Length
1/8″	0.02, 0.028, 0.035	Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625)	ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704	60-120 Mpa	Customized
3/16″	0.02, 0.028, 0.035, 0.049
1/4″	0.02, 0.028, 0.035, 0.049, 0.065, 0.083
5/16″
3/8″
1/2″
OD: Up to 1 Inch. The specification and length per coil can be customized according to customer's requirements.

Industrial Applications

Downhole hydraulic control lines.
Downhole chemical control lines.

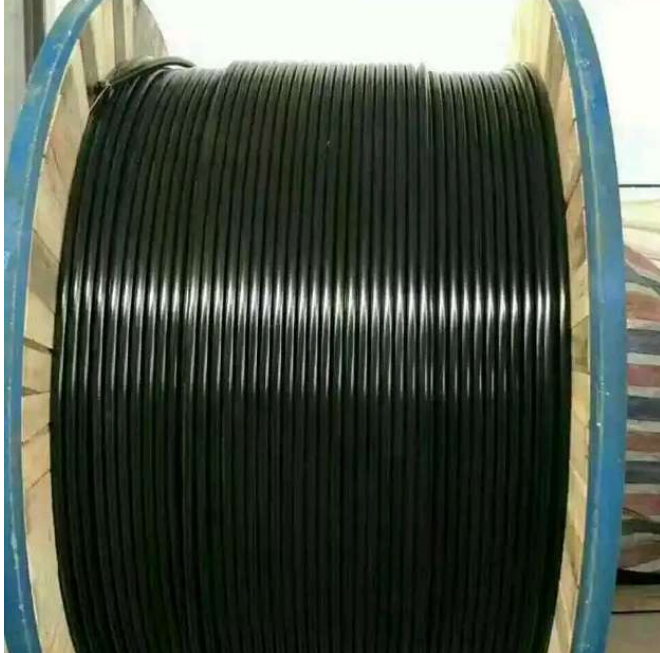

Subsea control lines for hydraulic power and chemical injection.
Smoothbore control lines used in fibre optic applications.
Chemical Injection Lines.
Capillary Tubing.
Electrical Lines.
Tubing Encapsulated Conductor.
Intelligent Well Completions.
Multi-Line Flat Packs.

Frequently Asked Questions (FAQ)

1. What materials are available for the stainless steel coiled tubing?

We offer coiled tubing in various grades including Austenitic steel (304, 304L, 316, 316L), Duplex 2205, Super Duplex 2507, Incoloy 825, and Inconel 625.

2. What are the key applications of encapsulated coiled tubing?

Encapsulated coiled tubing is commonly used for downhole hydraulic/chemical control lines, subsea control lines for chemical injection, tubing encapsulated conductors, intelligent well completions, and multi-line flat packs.

3. What encapsulation materials and shapes do you provide?

Available encapsulation materials include Santoprene, F40, F46, FEP, PVC, and Nylon. These can be custom-shaped into Round, Square, or Flatpack structures.

4. What size ranges can be manufactured for these coiled tubes?

For standard coiled tubing, outer diameters range from 3/16″ to 1 1/2″ (6mm to 38mm) with wall thicknesses between 0.028″ and 0.118″ (0.7mm to 3mm). Custom sizes up to 1 inch OD are also available.

5. What standard and surface specifications do the tubes follow?

Our tubes comply with ASTM (ASME) SA/A312/A213/A269, DIN, GB, and JIS standards. Surface finishes include Bright Annealed, Pickling, and manual or mechanical polishing ranging from 180# to 600#.

6. Can the length of the coiled tubing be customized per reel?

Yes, we can customize the length per coil based on your specific requirements. Standard single coil lengths typically range from 300 to 3500 meters.
