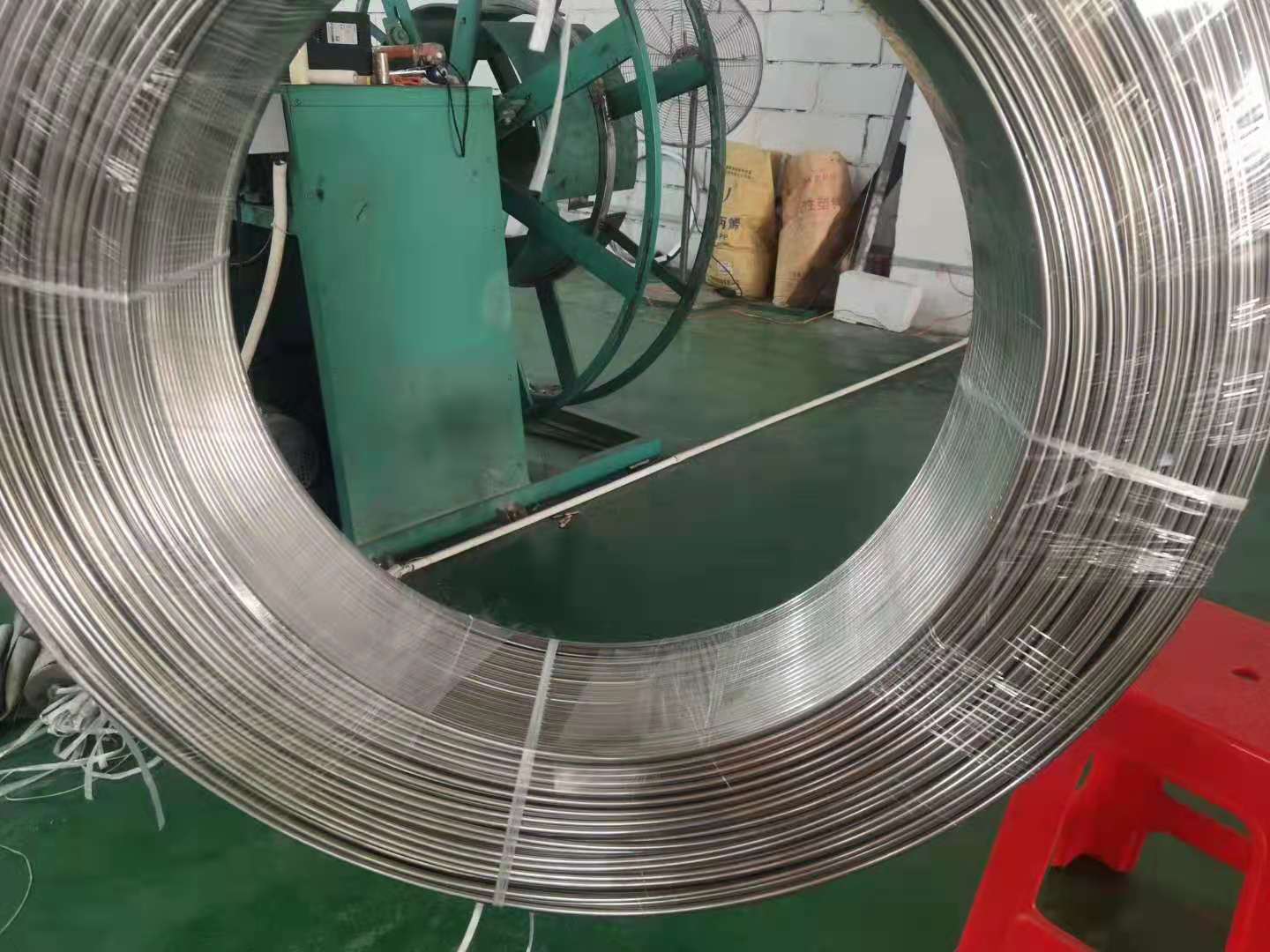

China coil tube stainless steel 6.35*0.89 Manufacturers, Quotes

Descreption: stainless steel coil tube Grade: 201 304 304L 316 316L 2205 2507 625 825 ect Size: 6-25.4mm Thickness:0.2-2mm Length: 600-3500M/coil Standard: ASTM A269 A249 SUS DIN JIS GB Surface : 2B 8k Bright anneald Test : Yield strength, Tensile strength, Hardness ,Hydrapress Measurement Guarantee&Inspection : The Third Party &Cetification Advantage: We are a manufacturer . Lowest Price and Good Quantity

Send Inquiry

Product Description

Stainless Steel Coiled Tubes Specification

Standards ASTM A269/A249 standard
Grades TP304, TP316L, 304, 316, 310S, 2205, 825, 625
Trade Name SS304 Coiled Tubes, SS316 Coiled Tubes, Duplex Coiled Tubes, Monel 400 Coiled Tubes, Hastelloy Coiled Tubes, Inconel coiled Tubes, 904L Coiled Tubes, Seamless Coiled Tubes, Welded Coiled Tubing
Outer Diameter Range 6.52mm - 20.00mm
Thickness Range 0.2mm - 2.0mm
Tolerances OD: ±0.1mm, Wall Thickness: ±10%, Length: -0/+6mm
Length 300m - 3500m per coil (or according to customer requirements)
Packaging Iron pallet, wooden pallet, poly bag
State Soft / Half hard / Soft bright annealing
Common Size 6.35 * 0.89 (customizable upon request)
Applications Refrigeration equipment, evaporator, gas liquid delivery, condenser, beverage machine
Product Advantages Surface polishing and fine, uniform wall thickness, tolerance precision

Composition Ranges & Mechanical Properties

Chemical Composition Ranges for 316L Stainless Steel Coiled Tubing

Grade	Condition	Chemical Composition (%)
Grade	Condition	C	Mn	Si	P	S	Cr	Mo	Ni	N
316L	Min	-	-	-	-	-	16.0	2.00	10.0	-
316L	Max	0.03	2.0	0.75	0.045	0.03	18.0	3.00	14.0	0.10

Table 2. Mechanical Properties of 316L Stainless Steel Coiled Tubing / Coiled Tubes

Grade	Tensile Str (MPa) Min	Yield Str 0.2% Proof (MPa) Min	Elongation (% in 50mm) Min	Hardness
Grade	Tensile Str (MPa) Min	Yield Str 0.2% Proof (MPa) Min	Elongation (% in 50mm) Min	Rockwell B (HR B) Max	Brinell (HB) Max
316L	485	170	40	95	217

Physical Properties

Table 3. Typical Physical Properties for 316 Grade Stainless Steels

Grade	Density (kg/m³)	Elastic Modulus (GPa)	Mean Co-eff of Thermal Expansion (µm/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100°C (J/kg.K)	Elec Resistivity (nΩ.m)
Grade	Density (kg/m³)	Elastic Modulus (GPa)	0-100°C	0-315°C	0-538°C	At 100°C	At 500°C	Specific Heat 0-100°C (J/kg.K)	Elec Resistivity (nΩ.m)
316/L/H	8000	193	15.9	16.2	17.5	16.3	21.5	500	740

Grade Specification Comparison

Table 4. Grade specifications for 316L stainless steels.

Frequently Asked Questions (FAQ)

What standards do the stainless steel coiled tubes comply with?

The stainless steel coiled tubes are manufactured in accordance with the ASTM A269 and ASTM A249 standards, ensuring high quality and reliability for heat-exchanger and general service applications.

What grade options are available for the coiled tubing?

We support a wide range of steel grades including TP304, TP316L, 304, 316, 310S, 2205, 825, and 625, fitting various corrosion-resistant and high-temperature environment requirements.

What are the common applications for stainless steel coiled tubing?

Due to their uniform wall thickness and excellent tolerance precision, these coiled tubes are widely used in refrigeration equipment, evaporators, gas-liquid delivery systems, condensers, and beverage machines.

What are the typical size ranges and dimensional tolerances?

The outer diameter ranges from 6.52mm to 20mm, with wall thicknesses between 0.2mm and 2mm. The tolerances are tightly managed with OD at ±0.1mm, wall thickness at ±10%, and length tolerance at -0/+6mm.

What are the physical and mechanical properties of 316L coiled tubing?

316L stainless steel has a density of 8000 kg/m³ and an elastic modulus of 193 GPa. Mechanically, it features a minimum tensile strength of 485 MPa, minimum yield strength of 170 MPa, and maximum hardness of 95 HRB / 217 HB.

How are these coiled tubes packaged for shipping?

To ensure safety during transit, the coiled tubes (available in lengths of 300 to 3500 meters per coil) are securely packed using iron pallets, wooden pallets, or robust poly bags depending on requirements.
