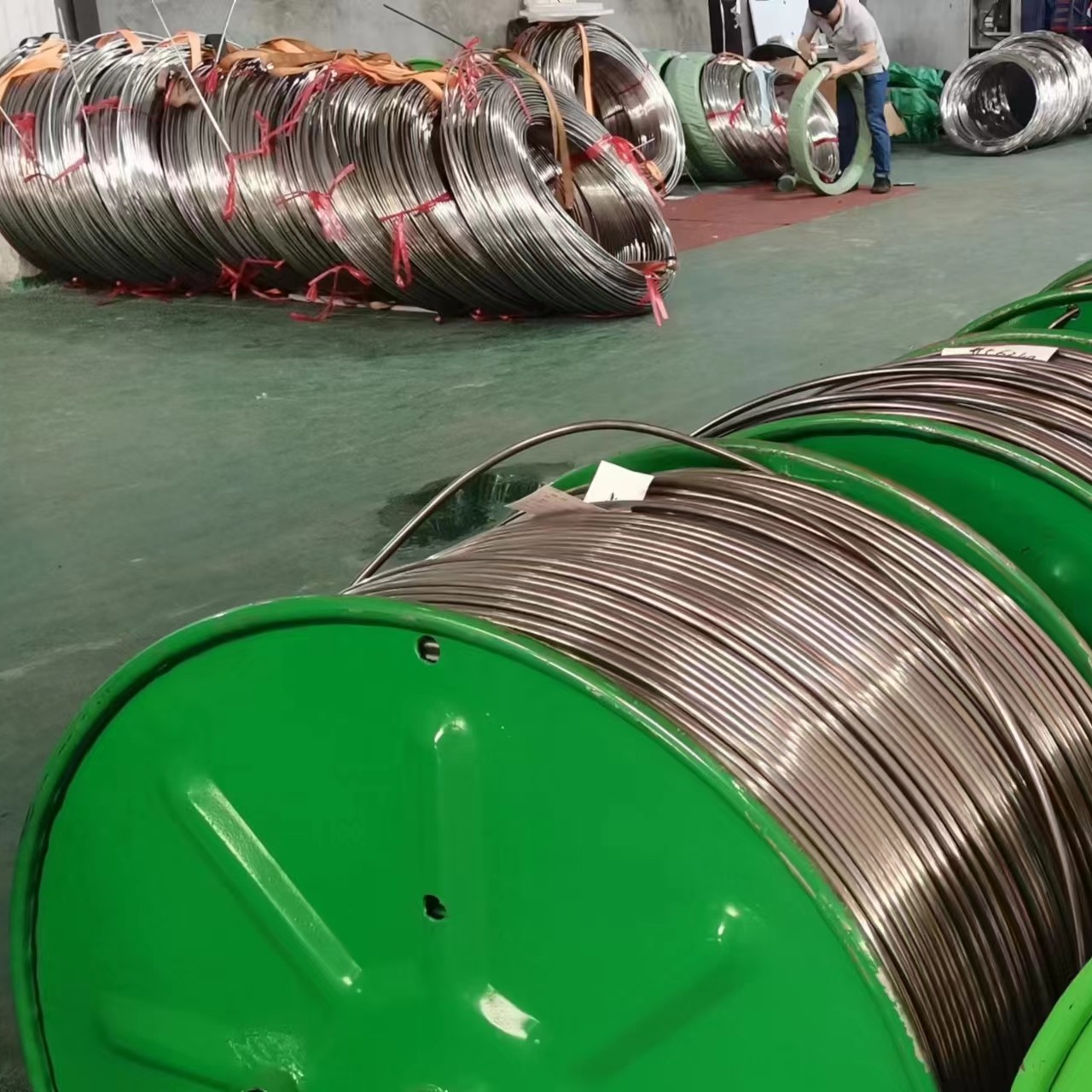

China ASTM 1/2" Stainless Steel coil tube for oil Manufacturer, Factory

1 / 1

China ASTM 1/2" Stainless Steel coil tube for oil Manufacturer, Factory

Specification: 1/2" Stainless Steel Coil Tubing Size :1/2" OD Thickness :0.035" 0.049" 0.028" Surface: Bright and annealed Length:50-4000m/Coil Type: Seamless or Welded

Send Inquiry

Product Description

ASTM 1/2" Stainless Steel coil tube, 316 Stainless Steel Coil, Stainless Steel Tubing Coils, Stainless Steel Coil Tubing, Coil Stainless Steel Tubing, 316l Stainless Steel Coil, 304l Stainless Steel Coil.

Stainless steel coiled tubing is a compact type of tubing used in many different industries including chemical, petrochemical and food production. It is made of high-quality stainless steel, which has excellent corrosion resistance, heat resistance and pressure resistance. The piping is designed as a coil, making it very flexible and easy to install in tight spaces. Additionally, its small diameter means it can be used in applications where large pipes are impractical.

Stainless steel coils are commonly used in heat exchangers to transfer heat from one fluid to another. It is also used in the production of high-performance vehicles, such as racing cars and aircraft, where strength and durability are critical. Overall, stainless steel coiled tubing is a versatile and reliable material that can be used in a variety of applications.

📏 1/2" Stainless Steel Coil Tubing Size Specification

Stainless Steel Capillary Tubing
304 Stainless Steel Capillary Tubing
Available Grades: 316L, 304, 304L, 2205, 904L, 2507, 625, 825 \| MOQ: 500kgs
0.25*0.08	1.4*0.4	2.3*0.2	3.2*0.25	4.5*0.7	6*0.45	8*0.3	11*0.5	0.8*0.2	10*1
0.3*0.1	1.5*0.1	2.3*0.25	3.2*0.3	4.5*0.75	6*0.5	8*0.4	11*1	0.85*0.175	12*0.5
0.4*0.1	1.5*0.125	2.3*0.3	3.2*0.35	4.5*0.8	6*0.6	8*0.45	11*1.5	1.1*0.2	12*1
0.5*0.1	1.5*0.15	2.4*0.15	3.2*0.4	4.5*0.9	6*0.7	8*0.5	11*2	1.1*0.3	12*1.5
0.5*0.125	1.5*0.2	2.4*0.2	3.2*0.5	4.5*1	6*0.8	8*0.6	11.1*0.4	1.2*0.135	12*2.0
0.5*0.15	1.5*0.25	2.4*0.25	3.2*0.6	4.7*0.2	6*0.9	8*0.7	12*0.2	1.6*0.25	12.8*1.6
0.6*0.1	1.5*0.3	2.4*0.3	3.2*0.8	4.7*0.25	6*1.0	8*0.8	12*0.25	1.9*0.1	14*0.5
0.6*0.125	1.5*0.35	2.4*0.4	3.4*0.5	4.7*0.3	6*1.2	8*0.9	12*0.3	2*0.3	14*1.5
0.6*0.15	1.5*0.4	2.4*0.5	3.5*0.15	4.8*0.125	6*1.25	8*1	12*0.4	2*0.4	14*2.0
0.63*0.15	1.5*0.45	2.4*0.6	3.5*0.2	4.8*0.2	6*1.5	8*1.2	12*0.5	2*0.5	15*0.5
0.7*0.1	1.5*0.5	2.4*0.7	3.5*0.25	4.8*0.25	6*2	8*1.5	12*1	2*0.6	15*1.5
0.7*0.125	1.6*0.1	2.4*0.75	3.5*0.3	4.8*0.3	6.35*0.3	8*2	12.3*0.4	2.5*0.25	15*2
0.7*0.15	1.6*0.125	2.4*0.8	3.5*0.4	4.8*0.5	6.35*0.5	8*2.5	12.7*0.3	2.5*0.3	16*0.5
0.7*0.2	1.6*0.15	2.5*0.1	3.5*0.5	5*0.1	6.35*0.7	8.5*0.2	13*0.5	2.5*0.5	16*1.0
0.8*0.1	1.6*0.2	2.5*0.15	3.5*0.55	5*0.15	6.35*1.0	8.5*0.25	13*1	3*0.5	16*1.5
0.8*0.125	1.6*0.25	2.5*0.2	3.5*0.7	5*0.2	6.4*0.225	8.5*0.3	13*1.5	3*0.8	16*2.0
0.8*0.15	1.6*0.3	2.5*0.25	3.5*0.8	5*0.25	6.5*0.2	8.5*0.4	13*2	3*1	17*1.5
0.8*0.2	1.6*0.35	2.5*0.3	3.5*1.0	5*0.3	6.5*0.25	8.5*0.5	13.5*0.5	4*0.3	17*2.0
0.8*0.25	1.6*0.4	2.5*0.35	3.5*1.15	5*0.35	6.5*0.3	8.5*1.0	14*0.25	4*0.5	18*1.5
0.9*0.1	1.65*0.3	2.5*0.4	3.6*0.15	5*0.4	6.5*0.4	8.5*1.3	14*0.3	4*1	18*2.0
0.9*0.15	1.7*0.1	2.5*0.45	3.7*0.15	5*0.45	6.5*0.5	8.5*1.5	14*0.5	4.8*0.15	19*1.5
0.9*0.2	1.7*0.15	2.5*0.5	3.7*0.2	5*0.5	6.5*0.6	8.9*1.4	14*1	5*0.5	19*2.0
0.9*0.25	1.7*0.2	2.5*0.6	3.7*0.5	5*0.6	6.5*0.7	9*0.2	14.2*0.2	5*1	20*1.0
1.0*0.1	1.7*0.25	2.5*0.65	3.8*0.2	5*0.7	6.5*0.8	9*0.25	15*0.3	5.5*1.75	20*1.5
1.0*0.125	1.7*0.3	2.5*0.7	3.8*0.25	5*0.75	6.5*0.9	9*0.3	15*0.5	6*0.15	20*2.0
1.0*0.15	1.8*0.1	2.5*0.85	3.8*0.3	5*0.8	6.5*1	9*0.4	15*1	6*0.25	20*2.5
1.0*0.2	1.8*0.15	2.6*0.15	3.9*0.2	5*0.9	6.5*1.3	9*0.5	16*0.5	6*0.3	21*1.0
1.0*0.25	1.8*0.2	2.6*0.2	4*0.1	5*1.0	6.7*0.5	9*0.6	16*1	6*0.5	22*1.5
1.0*0.3	1.8*0.25	2.6*0.3	4*0.15	5*1.2	6.8*0.15	9*0.7	17*0.5	6*0.85	25*1.5
1.0*0.35	1.8*0.3	2.6*0.5	4*0.2	5*1.5	7*0.15	9*0.8	17*1	6*1	28.6*1.5
1.1*0.1	1.8*0.35	2.65*0.15	4*0.25	5.2*0.2	7*0.2	9*0.9	18*0.5	7*0.3
1.1*0.12	1.8*0.4	2.7*0.15	4*0.3	5.2*0.3	7*0.25	9*1	18*1.0	7*0.5
1.1*0.125	1.9*0.1	2.7*0.2	4*0.35	5.2*0.45	7*0.3	9*1.5	19*0.5	7*1.0
1.1*0.15	1.9*0.15	2.7*0.3	4*0.4	5.2*0.5	7*0.35	9*2	19*1.0	8*0.5
1.1*0.2	1.9*0.2	2.8*0.15	4*0.45	5.4*0.2	7*0.4	9.5*0.25	20*0.5	8*1
1.1*0.25	1.9*0.25	2.8*0.2	4*0.5	5.45*0.275	7*0.45	9.5*0.3	21*0.5	9*0.5
1.2*0.1	2*0.1	2.8*0.25	4*0.6	5.5*0.15	7*0.5	9.5*0.5		9*1
1.2*0.12	2*0.125	2.8*0.3	4*0.7	5.5*0.2	7*0.6	9.5*0.7		10*0.5
1.2*0.125	2*0.15	2.8*0.5	4*0.75	5.5*0.25	7*0.7	9.5*1		10*1
1.2*0.15	2*0.2	2.8*0.7	4*0.8	5.5*0.3	7*0.8	9.5*1.5
1.2*0.2	2*0.25	2.9*0.3	4*0.9	5.5*0.4	7*0.9	10*0.2
1.2*0.25	2*0.3	3*0.1	4*1.0	5.5*0.5	7*1.0	10*0.25
1.2*0.3	2*0.35	3*0.15	4*1.25	5.5*0.6	7*1.2	10*0.3
1.2*0.4	2*0.4	3*0.2	4*1.5	5.5*0.7	7*1.5	10*0.4
1.3*0.1	2*0.45	3*0.25	4.2*0.2	5.5*0.75	7*2	10*0.5
1.3*0.12	2*0.5	3*0.3	4.2*0.25	5.5*0.8	7.5*0.2	10*0.6
1.3*0.125	2*0.6	3*0.35	4.2*0.3	5.5*1	7.5*0.25	10*0.7
1.3*0.135	2*0.7	3*0.4	4.2*0.4	5.6*0.85	7.5*0.3	10*0.8
1.3*0.15	2.1*0.15	3*0.5	4.2*0.5	5.7*0.2	7.5*0.4	10*0.9
1.3*0.175	2.1*0.2	3*0.6	4.3*0.9	5.7*0.3	7.5*0.5	10*1.0
1.3*0.2	2.1*0.25	3*0.7	4.4*0.45	5.8*0.15	7.5*0.6	10*1.5
1.3*0.25	2.1*0.65	3*0.75	4.4*0.5	5.8*0.2	7.5*0.7	10*2
1.3*0.3	2.2*0.15	3*0.8	4.5*0.15	5.8*0.5	7.5*0.8	10*2.5
1.4*0.1	2.2*0.2	3*0.9	4.5*0.2	5.8*0.7	7.5*0.9	10.3*0.2
1.4*0.15	2.2*0.25	3*1.0	4.5*0.25	6*0.15	7.5*1.0	10.8*0.2			soft bright
1.4*0.2	2.2*0.3	3*1.1	4.5*0.3	6*0.2	7.8*0.5	11*0.2			1.5*0.15
1.4*0.25	2.2*0.5	3*1.2	4.5*0.4	6*0.25	8*0.15	11*0.25			2*0.5
1.4*0.3	2.3*0.125	3.2*0.15	4.5*0.5	6*0.3	8*0.2	11*0.3			2.5*0.5
1.4*0.35	2.3*0.15	3.2*0.2	4.5*0.6	6*0.4	8*0.25	11*0.4			5*0.5

📈 Working Pressure Charts (PSI)

⚠️ Technical Guidelines & Pressure Factors

ASME Code Standard: The ASME code suggests a safety factor of four when determining working pressures.

Applicable Material Standards: T304/L, T316/L, & T317L A269 Tubing for temperatures between -20˚F and 100˚F.

Example Calculation: For a 1/4” OD x .035” Tube = 21,000 PSI rating. Actual Safe Working Pressure = 21,000 PSI ÷ 4 = 5,250 PSI.

Temperature Multipliers: For higher temperatures, multiply working pressures by: T316/L & T317/L (at 900˚F: 0.853, at 1000˚F: 0.764).

OD Size	.016”	.020”	.028”	.035”	.049”	.065”	.083”	.095”	.109”	.120”	.134”	.156”	.188”	.250”	.313”	.375”	.500”	.750”
OD 1/16”	38,000	48,000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1/8”	19,200	24,000	39,000	42,000	58,800	-	-	-	-	-	-	-	-	-	-	-	-	-
3/16”	12,800	15,998	22,403	29,498	39,203	51,863	-	-	-	-	-	-	-	-	-	-	-	-
1/4”	-	12,000	16,800	21,000	29,400	39,000	49,800	57,000	-	-	-	-	-	-	-	-	-	-
5/16”	-	9,600	13,440	16,800	23,520	31,200	39,780	45,750	-	-	-	-	-	-	-	-	-	-
3/8”	-	8,003	11,998	14,003	19,598	26,003	33,203	38,003	43,598	48,000	-	-	-	-	-	-	-	-
7/16”	-	6,857	9,600	12,000	16,800	22,285	28,457	32,571	37,371	41,143	-	-	-	-	-	-	-	-
1/2”	-	6,000	8,400	10,500	14,700	19,500	24,900	28,500	32,700	36,000	-	-	-	-	-	-	-	-
9/16”	-	5,333	7,467	9,333	13,067	17,333	22,123	25,333	29,066	32,000	-	-	-	-	-	-	-	-
5/8”	-	4,800	6,720	8,400	11,760	15,600	19,920	22,888	26,160	28,800	32,160	37,440	44,880	-	-	-	-	-
3/4”	-	3,998	5,603	6,998	9,803	12,997	16,598	18,998	21,803	24,000	26,800	31,200	37,403	-	-	-	-	-
7/8”	-	3,428	4,800	6,000	8,400	11,145	14,228	16,283	18,683	20,573	22,971	26,745	32,055	-	-	-	-	-
1”	-	3,000	4,200	5,250	7,350	9,750	12,450	14,250	16,350	18,000	20,100	23,400	28,050	37,500	-	-	-	-
1-1/8”	-	2,663	3,735	4,665	6,533	8,670	11,070	12,668	14,535	15,998	17,866	20,798	24,930	33,330	-	-	-	-
1-1/4”	-	2,400	3,360	4,200	5,880	7,800	9,960	11,400	13,080	14,400	16,080	18,720	22,440	30,000	-	-	-	-
1-3/8”	-	-	3,053	3,818	5,348	7,087	9,053	10,365	11,888	13,088	14,618	17,018	20,400	27,270	-	-	-	-
1-1/2”	-	-	2,948	3,503	4,898	6,503	8,303	9,503	10,890	12,000	13,400	15,600	18,698	24,998	-	-	-	-
1-5/8”	-	-	-	3,230	4,523	6,000	7,662	8,769	10,062	11,077	12,369	14,400	17,354	23,077	-	-	-	-
1-3/4”	-	-	-	3,000	4,200	5,573	7,118	8,145	9,345	10,283	11,486	13,373	16,028	21,428	-	-	-	-
2”	-	-	-	2,625	3,675	4,875	6,225	7,125	8,175	9,000	10,050	11,700	14,025	18,750	23,475	28,125	37,500	-
2-1/4”	-	-	-	2,333	3,270	4,335	5,535	6,330	7,268	8,003	8,933	10,403	12,465	16,665	20,865	24,998	33,330	-
2-1/2”	-	-	-	2,100	2,940	3,900	4,980	5,700	6,540	7,200	8,040	9,360	11,220	15,000	18,780	22,500	30,000	-
2-3/4”	-	-	-	1,913	2,670	3,548	4,530	5,183	5,948	6,548	7,309	8,513	10,200	13,636	17,070	20,453	27,270	40,913
3”	-	-	-	1,748	2,453	3,248	4,148	4,748	5,453	6,000	6,700	7,800	9,353	12,503	15,653	18,750	24,998	37,500
3-1/4”	-	-	-	-	-	3,000	3,833	4,388	5,033	5,535	6,185	7,200	8,633	11,535	14,445	17,310	23,078	34,613
3-1/2”	-	-	-	-	-	2,783	3,555	4,073	4,673	5,145	5,743	6,683	8,018	10,718	13,418	16,073	21,428	32,146
3-3/4”	-	-	-	-	-	2,603	3,323	3,803	4,358	4,800	5,360	6,240	7,478	9,998	12,518	15,000	20,003	30,000
4”	-	-	-	-	-	2,438	3,113	3,563	4,088	4,500	5,025	5,850	7,013	9,375	11,738	14,063	18,750	28,125

Frequently Asked Questions (FAQ)

What are the primary applications of stainless steel coiled tubing?

Stainless steel coiled tubing is widely used in chemical, petrochemical, and food production industries. It is commonly implemented in heat exchangers to transfer heat and in high-performance racing cars and aircraft where reliable strength and durability are critical.

Why is coiled tubing preferred over traditional straight piping in tight spaces?

Its compact, coiled design makes the tubing highly flexible and easy to route and install in limited spaces. Additionally, its small diameter allows it to be used in complex layouts where traditional large, rigid pipes are impractical.

What material properties make this tubing highly durable?

It is manufactured from high-quality stainless steel, which provides excellent corrosion resistance, heat resistance, and pressure resistance, ensuring long-term reliability in harsh environments.

What grades and minimum order quantities are available for capillary tubing?

We produce capillary tubing in grades including 316L, 304, 304L, 2205, 904L, 2507, 625, and 825. The standard Minimum Order Quantity (MOQ) for production is 500 kgs.

How is the safe working pressure calculated for these stainless steel tubes?

Following the ASME code guidelines, a safety factor of four is applied to determine safe working pressures. For instance, a tube with a rated pressure capability of 21,000 PSI is assigned a safe working pressure of 5,250 PSI (21,000 PSI divided by 4).
