ASTM A312 Stainless Steel 316L Exchanger Pipe
Heat exchanger tube in an extensive range of austenitic stainless steels, duplex stainless steels, nickel alloys, titanium and zirconium, suitable for all types of heat exchangers, such as seawater coolers, condensers, evaporators, heaters and reheaters.
Heat exchanger Tubes are used in all types of process industries. Characteristic requirements are: bead worked weld, fixed lengths and extensive testing.
Our commitment to on-time delivery and supply of high-quality material has enabled us to build lasting relationships with engineering companies and end users right across the global.
Each U bend tube of our range is rigorously quality checked by our team of talented professionals on every stage of production to deliver the clients defect free best quality products.
Types of Stainless Steel Exchanger Pipe
Stainless Steel Heat Exchanger Tubes
Stainless Steel Seamless Heat Exchanger Tubes
SS Heat Exchanger Tubes
SS Seamless Heat Exchanger Tubes
Heat Exchanger Tubes
ASME Heat Exchanger Tubes
Steel Heat Exchanger Tubes
DIN Stainless Steel Heat Exchanger Tubes
ASTM A213 Stainless Steel Heat Exchanger Tubes
ASTM A269 Stainless Steel Heat Exchanger Tubes
Stainless steel 316 316L Heat Exchanger Tubes that are being designed as per the national and international standard quality or raw materials are produce under the strict supervision of the strict supervision of the professional and exper team.The product is found widely used in numbers of industries for fulfilling critical application requirements.
Stainless Steel 316L Exchanger Pipe Specification
Grade
Commonly ASTM A213 S304/304L, 316/316L, 317L, 321/321H, 410, Duplex 2205 (UNS S31803)
Standard
ASTM A312, ASTM A269, 213
Process
Method Cold Drawn/ Cold Rolled
Surface Finish
Annealed/ Polished
Package
Woven bag for each piece, then packed in seaworthy wooden cases
Delivery Time
20-60 Days after receiving the deposit (Normally according to the order quantity)
Price Item
FOB, CIF or as negotiation
Payment
T/T(30% in advance, 70% against the BL Copy) or as negotiation
Quality Requirement
Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable
Surface Protection
Unless otherwise stated in order tubes are delivered with inner and outer surfaces temporarily protected with a film of light mineral oil.
Tubes Ends
The tubes are supplied plain, square cut and on request the tubes can be deburred.
Manufacturing Process Details
- 1We use Cold Drawn techonology to produce U bend tube
- 2U bend tubes produce will accordance to customer's drawings
- 3To avoid oxidation , inert gas (Argon) is passed through tubes ID at the required flow rate
- 4The radius is checked for its OD and wall thinning with the recommended specification
- 5We'll choose three different position or as customer's require to make sure tubes quality. We'll do physical properties and micro-structure test
- 6Visual inspection for waviness and cracks is done with Dye Penetrant Test
- 7Each tube is then hydro tested at the recommended pressure to check for leakage
Chemical Composition for Stainless Steel Exchanger Pipe (Raw Material)
| ASTM/UNS |
C (max) |
Si (max) |
Mn (max) |
P (max) |
S (max) |
Cr |
Ni |
Mo |
Ti |
| TP304/S30400 |
0.080 |
1.00 |
2.00 |
0.045 |
0.03 |
18.0-20.0 |
8.0-10.5 |
- |
- |
| TP304L/S30403 |
0.035 |
1.00 |
2.00 |
0.045 |
0.03 |
18.0-20.0 |
8.0-13.0 |
- |
- |
| TP304H/S30409 |
0.04-0.10 |
1.00 |
2.00 |
0.045 |
0.03 |
18.0-20.0 |
8.0-11.0 |
- |
- |
| TP316/S31600 |
0.080 |
1.00 |
2.00 |
0.045 |
0.03 |
16.0-18.0 |
11.0-14.0 |
2.0-3.0 |
- |
| TP316L/S31603 |
0.035 |
1.00 |
2.00 |
0.045 |
0.03 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |
- |
| TP316Ti/S31635 |
0.080 |
1.00 |
2.00 |
0.045 |
0.03 |
16.0-18.0 |
10.0-14.0 |
2.0-3.0 |
0.7>5x(C+N) |
| TP321/S32100 |
0.080 |
1.00 |
2.00 |
0.045 |
0.03 |
17.0-19.0 |
9.0-12.0 |
- |
0.7>5x(C+N) |
| TP317L/S31703 |
0.035 |
1.00 |
2.00 |
0.045 |
0.03 |
18.0-20.0 |
11.0-15.0 |
3.0-4.0 |
- |
| TP347H/S34709 |
0.04-0.10 |
1.00 |
2.00 |
0.045 |
0.03 |
17.0-19.0 |
9.0-13.0 |
- |
- |
| TP309S/S30908 |
0.080 |
1.00 |
2.00 |
0.045 |
0.03 |
22.0-24.0 |
12.0-15.0 |
0.75 |
- |
| TP310S/S31008 |
0.080 |
1.00 |
2.00 |
0.045 |
0.03 |
24.0-26.0 |
19.0-22.0 |
0.75 |
- |
Application
a) Petroleum, chemical enterprise, super heater of boiler and heat exchanger
b) High temperature-resistant transmission fluid pipe in power station
c) Ship with pressure pipe
d) Exhaust purification device
e) Construction and ornament
f) Solar industry, military, semiconductor etc
▼ Stainless Steel Coiled Tubing / Coiled Tubes Material Grade Comparison
| U.S.A. |
GERMANY (DIN) |
GERMANY (W.N.) |
FRANCE |
JAPAN |
ITALY |
SWEDEN |
U.K. |
E.U. |
| 201 |
- |
- |
- |
SUS 201 |
- |
- |
- |
- |
| 301 |
X 12 CrNi 17 7 |
1.4310 |
Z 12 CN 17-07 |
SUS 301 |
X 12 CrNi 1707 |
23 31 |
301S21 |
X 12 CrNi 17 7 |
| 302 |
X 5 CrNi 18 7 |
1.4319 |
Z 10 CN 18-09 |
SUS 302 |
X 10 CrNi 1809 |
23 31 |
302S25 |
X 10 CrNi 18 9 |
| 303 |
X 10 CrNiS 18 9 |
1.4305 |
Z 10 CNF 18-09 |
SUS 303 |
X 10 CrNiS 1809 |
23 46 |
303S21 |
X 10 CrNiS 18 9 |
| 303 Se |
- |
- |
Z 10 CNF 18-09 |
SUS 303 Se |
X 10 CrNiS 1809 |
- |
303S41 |
- |
| 304 |
X 5 CrNi 18 10 / 18 12 |
1.4301 / 1.4303 |
Z 6 CN 18-09 |
SUS 304 |
X 5 CrNi 1810 |
23 32 |
304S15 / 304S16 |
X 6 CrNi 18 10 |
| 304 N |
- |
- |
- |
SUS 304N1 |
X 5 CrNiN 1810 |
- |
- |
- |
| 304 H |
- |
- |
- |
SUS F 304H |
X 8 CrNi 1910 |
- |
- |
- |
| 304 L |
X 2 CrNi 18 11 |
1.4306 |
Z 2 CN 18-10 |
SUS 304L |
X 2 CrNi 1911 |
23 52 |
304S11 |
X 3 CrNi 18 10 |
| 305 |
- |
- |
Z 8 CN 18-12 |
SUS 305 |
X 8 CrNi 1812 |
23 33 |
305S19 |
X 8 CrNi 18 12 |
| 309 |
X 15 CrNiS 20 12 |
1.4828 |
Z 15 CN 24-13 |
SUH 309 |
X 16 CrNi 2314 |
- |
309S24 |
X 15 CrNi 23 13 |
| 309 S |
- |
- |
- |
SUS 309S |
X 6 CrNi 2314 |
- |
- |
X 6 CrNi 22 13 |
| 310 |
X 12 CrNi 25 21 |
1.4845 |
- |
SUH 310 |
X 22 CrNi 2520 |
- |
310S24 |
- |
| 310 S |
X 12 CrNi 25 20 |
1.4842 |
Z 12 CN 25-20 |
SUS 310S |
X 5 CrNi 2520 |
23 61 |
- |
X 6 CrNi 25 20 |
| 314 |
X 15 CrNiSi 25 20 |
1.4841 |
Z 12 CNS 25-20 |
- |
X 16 CrNiSi 2520 |
- |
- |
X 15 CrNiSi 25 20 |
| 316 |
X 5 CrNiMo 17 12 2 |
1.4401 |
Z 6 CND 17-11 |
SUS 316 |
X 5 CrNiMo 1712 |
23 47 |
316S31 |
X 6 CrNiMo 17 12 2 |
| 316 L |
X 2 CrNiMo 17 13 2 |
1.4404 |
Z 2 CND 17-12 |
SUS 316L |
X 2 CrNiMo 1712 |
23 48 |
316S11 |
X 3 CrNiMo 17 12 2 |
| 317 L |
X 2 CrNiMo 18 16 4 |
1.4438 |
Z 2 CND 19-15 |
SUS 317L |
X 2 CrNiMo 1815 |
23 67 |
317S12 |
X 3 CrNiMo 18 16 4 |
| 321 |
X 6 CrNiTi 18 10 |
1.4541 |
Z 6 CNT 18-10 |
SUS 321 |
X 6 CrNiTi 1811 |
23 37 |
321S31 |
X 6 CrNiTi 18 10 |
| 347 |
X 6 CrNiNb 18 10 |
1.4550 |
Z 6 CNNb 18-10 |
SUS 347 |
X 6 CrNiNb 1811 |
23 38 |
347S31 |
X 6 CrNiNb 18 10 |
| UNS31803 |
X 2 CrNiMoN 22 5 |
1.4462 |
- |
- |
- |
- |
- |
- |
| 410 |
X 10 Cr 13 |
1.4006 |
Z 10 C 13 |
SUS 410 |
X 12 Cr 13 |
23 02 |
410S21 |
X 12 Cr 13 |
Factory Overview
Quality Advantage
The quality of our products for the control line in oil and gas sector is assured not just during the controlled manufacturing process but also by way of finished product testing. Typical tests include:
- 1Non-destructive tests
- 2Hydrostatic tests
- 3Surface finish controls
- 4Dimensional accuracy measurements
- 5Flare and coning tests
- 6Mechanical and chemical property testing
Application Capillary Tube
1) Medical device industry
2) Temperature-guided industrial temperature control, sensors used pipe, tube thermometer
3) Pens care industry core tube
4) Micro-tube antenna, various types of small precision stainless steel antenna
5) With a variety of electronic small-diameter Stainless steel capillary
6) Jewelry needle punch
7) Watches, picture
8) Car antenna tube, bar antennas using tubes, antenna tube
9) Laser engraving equipment to use stainless steel tube
10) Fishing gear, accessories, Yugan out with possession of
11) Diet with stainless steel capillary
12) All types of mobile phone stylus a computer stylus
13) Heating pipe industry, oil industry
14) Printers, silent box needle
15) Pull a double-melt stainless steel tube used in window-coupled
16) A variety of industrial small diameter Precision stainless steel tubes
17) Precision dispensing with stainless steel needles
18) Microphone, headphones and microphone to use stainless steel tube, and so on

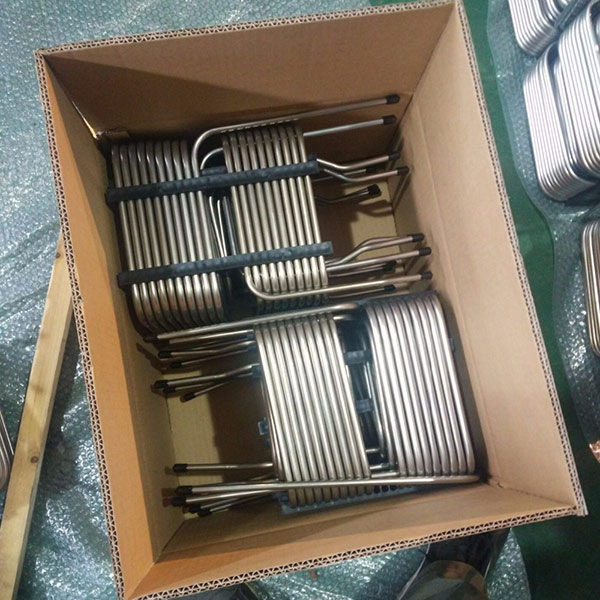

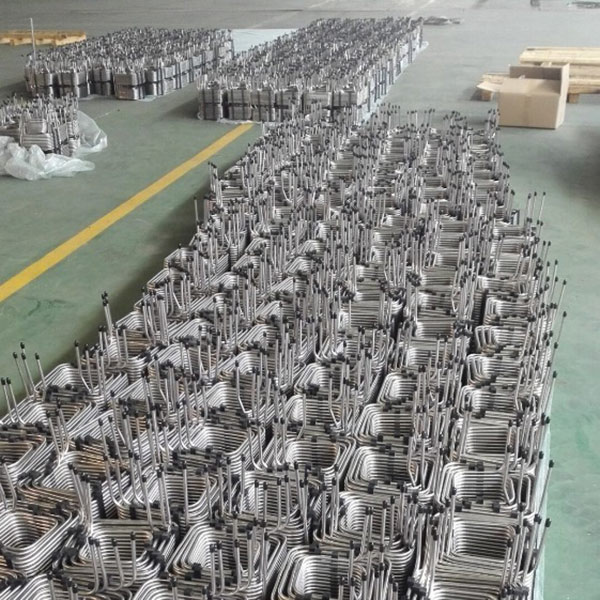

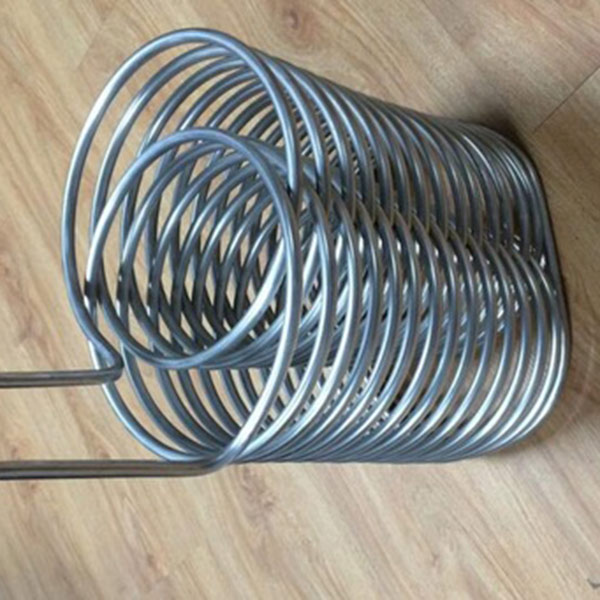

Product and Packaging Gallery
Frequently Asked Questions (FAQ)
What are the primary applications of ASTM A312 316L stainless steel exchanger pipes?
They are highly suitable for various heat exchangers including seawater coolers, condensers, evaporators, heaters, and reheaters. They are widely utilized in petroleum, chemical processing, power station transmission fluids, and pressure-piped ship systems.
Which material grades and standards are available for these coiled tubes?
Our tubes comply with standards such as ASTM A312, ASTM A269, and ASTM A213. Available grades include ASTM A213 S304/304L, 316/316L, 317L, 321/321H, 410, and Duplex 2205 (UNS S31803), along with various international grade standards.
What production technologies and testing methods are used for U-bend tubes?
We employ Cold Drawn and Cold Rolled technologies. Quality is assured via physical property tests, micro-structure checks, visual inspection using Dye Penetrant Tests for cracks, and hydrostatic testing to confirm leak-free integrity.
How are the surfaces of the exchanger pipes protected during transport?
Unless specified otherwise, all tubes are delivered with their inner and outer surfaces temporarily protected using a light mineral oil film. Additionally, each piece is wrapped in a woven bag and packed in seaworthy wooden cases.
What is the chemical composition requirement for TP316L exchanger raw material?
TP316L (UNS S31603) requires a carbon content maximum of 0.035%, silicon maximum of 1.00%, manganese maximum of 2.00%, chromium content between 16.0% and 18.0%, nickel content between 10.0% and 14.0%, and molybdenum between 2.0% and 3.0%.
What are the common industrial uses for precision capillary tubes?
Capillary tubes are widely used in medical devices, industrial temperature sensors, thermometers, electronics requiring small-diameter protection, watch parts, antenna components, laser engraving systems, printers, and precision dispensing needles.
