China 304 seamless stainless steel coiled tube for oil field Factory, Pricelist

1 / 2

China 304 seamless stainless steel coiled tube for oil field Factory, Pricelist

Specification:stainless steel coiled tube/pipe Grade:201 304 304L 316 316L 2205 2507 625 825 ect Size:6-25.4MM Length:600-3500M/coil Standard:ASTM A269 A249 SUS DIN JIS GB Surface :2B 8k Bright anneald Test :Yield strength, Tensile strength, Hardness ,Hydrapress Measurement Guarantee&Inspection :The Third Party &Cetification Advantage: We are a manufacturer . Lowest Price and Good Quantity

Send Inquiry

Product Description

📋 Key Specifications & Special Features

Standards ASTM, AISI, DIN, EN, GB, JIS

Type Seamless

Steel Grade 300 series, 600 series, 800 series

Application Used in precision instruments, refrigeration equipment, evaporator, gas liquid delivery, condenser, beverage machine

Thickness Range 0.05-6.5mm / 0.2-3mm

Outer Diameter 3.18mm-51mm / 6-50.8mm

Welding Line Type BV

Max Continuous Length 3500M per piece (according to customer requirements)

Tolerance & Precision OD ±0.1mm, wall thickness: ±10%, length: -0/+6mm

Material State Soft / half hard / soft bright annealing

Product Advantages Fine surface polishing, uniform wall thickness, high precision tolerance

Packaging Options Wooden case for stainless steel tube, wrapped in shaft and packed with plastic or custom packaging

📐 High Precision Stainless Steel Capillary Tube Specifications

Property	Details
Name	High precision stainless steel capillary tube
Standards	ASTM A554, A312, A249, A269 and A270
Material Grade	304, 304L, 316, 316L, 202, 2010, 825, 625, 2507, 2205, 25mm-6mm
Outer Diameter	6-25.4mm
Thickness	0.2-3mm
Length	6m or as customers' request
Tolerance	a) Outer diameter: +/- 0.1mm b) Thickness: +/- 0.01mm c) Length: +/- 6mm
Surface Finish	180G, 320G satin/hairline (matt finish, brush, dull finish), 400G, 600G Mirror finish
Application	1) Scientific research 2) Medical device: Injection needles 3) Chemical industry 4) Thermal conductivity temperature control device 5) Telecom device: miniature antenna tube
Testing	Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
Payment	30% T/T as deposit, the balance before shipment or L/C
Delivery Time	10~30 days, according to the order quantity
Packing	Bundled with knitted plastic bag, wooden cases or according to customers' request

📊 Stainless Steel Coiled Tubes/Coil Tubing Common Size Range

ITEM	Grade	Size (MM)	Pressure (Mpa)	Length (M)
1	316L, 304L, 304, 625, 825, 2205, 2507	1/8″×0.025″	3200	500-2000
2	316L, 304L, 304, 625, 825, 2205, 2507	1/8″×0.035″	3200	500-2000
3	316L, 304L, 304, 625, 825, 2205, 2507	1/4″×0.035″	2000	500-2000
4	316L, 304L, 304, 625, 825, 2205, 2507	1/4″×0.049″	2000	500-2000
5	316L, 304L, 304, 625, 825, 2205, 2507	3/8″×0.035″	1500	500-2000
6	316L, 304L, 304, 625, 825, 2205, 2507	3/8″×0.049″	1500	500-2000
7	316L, 304L, 304, 625, 825, 2205, 2507	1/2″×0.049″	1000	500-2000
8	316L, 304L, 304, 625, 825, 2205, 2507	1/2″×0.065″	1000	500-2000
9	316L, 304L, 304, 625, 825, 2205, 2507	φ3mm×0.7mm	3200	500-2000
10	316L, 304L, 304, 625, 825, 2205, 2507	φ3mm×0.9mm	3200	500-2000
11	316L, 304L, 304, 625, 825, 2205, 2507	φ4mm×0.9mm	3000	500-2000
12	316L, 304L, 304, 625, 825, 2205, 2507	φ4mm×1.1mm	3000	500-2000
13	316L, 304L, 304, 625, 825, 2205, 2507	φ6mm×0.9mm	2000	500-2000
14	316L, 304L, 304, 625, 825, 2205, 2507	φ6mm×1.1mm	2000	500-2000
15	316L, 304L, 304, 625, 825, 2205, 2507	φ8mm×1mm	1800	500-2000
16	316L, 304L, 304, 625, 825, 2205, 2507	φ8mm×1.2mm	1800	500-2000
17	316L, 304L, 304, 625, 825, 2205, 2507	φ10mm×1mm	1500	500-2000
18	316L, 304L, 304, 625, 825, 2205, 2507	φ10mm×1.2mm	1500	500-2000
19	316L, 304L, 304, 625, 825, 2205, 2507	φ10mm×2mm	500	500-2000
20	316L, 304L, 304, 625, 825, 2205, 2507	φ12mm×1.5mm	500	500-2000

✨ Our Advantages

We are a professional stainless steel coiled tube/pipe manufacturer. We provide the widest range of Stainless Steel 304 Seamless, Welded Pipes & Tubes.

Schedule 9.52mm Type 304 Stainless Steel Pipe

Schedule 40 Type 304 Stainless Steel Pipe

ASTM 5564 1/8” Seamless Tubing coiled tubing

Polished 304 Stainless Steel Tubing

304 Stainless Steel Threaded Pipe

Susd 30304 Stainless Steel Rectangular Tube

JIS SUS304 Seamless Tubes

304 SS Round Tube suppliers

SS 304 Welded Tubes for oil and Gas

AMTM 5560 Seamless Tube suppliers

ASTM A312 TP304 Coiled Tubing

Stainless Steel Inox 304 Capillary Tubing

ASTM A312 Gr TP 304 Aerospace tubes

AMS 5566 High Pressure Tube

SA213 TP 304 Sighting Tube

Type 304 Stainless Steel Polished Pipes

ASTM A312 TP304 Elliptical and Oval Tubes

AMS 5567 Rectangular Tube

ASTM A213 TP304 Condenser Tube

AMS 5563 1/4” *0089 Seamless steel tubes

ASTM A269 TP304 straight tube boiler

AMS 5563 Welded furnace tube

ASTM A249 TP304 Mirror Tube

AMS 5564 1/8” Welded Tubing, High-Pressure Hydraulic

UNS S30400 Pitot Tube stockist

Stainless Steel 304 Seamless Round Tubing

ASTM A358 TP304 Polished Tubing

304 Stainless Steel Ornamental Tube

Stainless Steel 304 Exhaust Pipe

304 Stainless Steel Spiral Pipe

ASME SA213 TP304 Perforated Tube

WERKSTOFF NR. 1.4301 Flexible Tube

SA 688 TP304 Finned Tube

SS 304 seamless steel coiled Tube

Din 1.4301 AISI 304 Perforated Exhaust Tube

Stainless Steel 304 Hypodermic Tubing

Din W.-Nr. 1.4301 Aisi 304 Corrugated Tube

SS 304 Honed Tube

Material 1.4301 Aisi 304 Slotted Handrail Tube

SS 304 Thin Wall Tube

ASTM 3/8”*0.035” stainless steel coiled tube

304 Stainless Steel Threaded Pipe

Stainless Steel 304 Ornamental Pipe

Stainless Steel 304 Fin Tube / Finned Tube

S30400 Stainless Steel U Shaped Tube

304 Stainless Steel Square Tube Mirror Finish

Din 1.4301 Material Vacuum Tube

ASTM 6.35*1.24 stainless steel coiled tubing

304 Stainless Steel Rectangular Pipe

304 Stainless Steel Hypodermic Tubing for Medical Needle

Ultra-High Purity Electropolished Stainless Steel 304 Tube

Thin Wall Stainless Steel 304 Tube

Din 1.4301 Stainless Steel Annealed Tubing

304 Stainless Steel Coil Tubing Heat Exchanger

SAE J405 Uns S30400 Thin Wall Tubing

304 Stainless Steel Metric Tubing

304 Stainless Steel Seamless Square Tubing

Large Diameter 304 Stainless Steel Tube

304 Stainless Steel Lined Pipe

Corrugated 304 Stainless Steel Tube for Gas and oil

ASTM A269 stainless steel coiled tubing

304 Stainless Steel Instrumentation Tubing

9.52*1.24MM Coiled Tubing

304 Stainless Steel Square Tubing

High-pressure 304 Stainless Steel Water Pipe

Stainless Steel 304 Hexagonal Pipe

Jis 304 Stainless Steel Coil Tubing

Stainless Steel 304 Boiler Tube

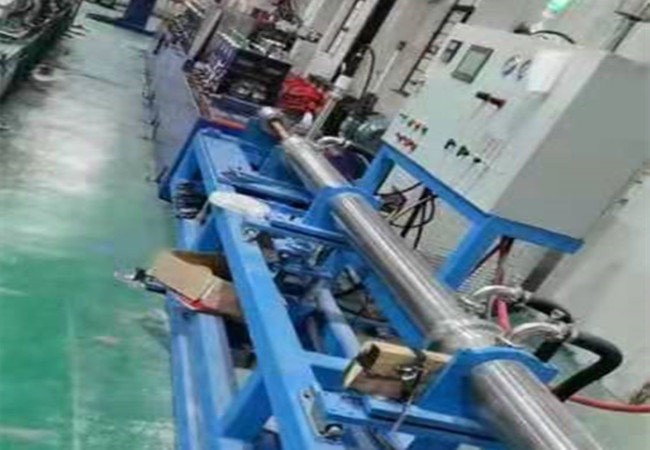

⚙️ Production Gallery

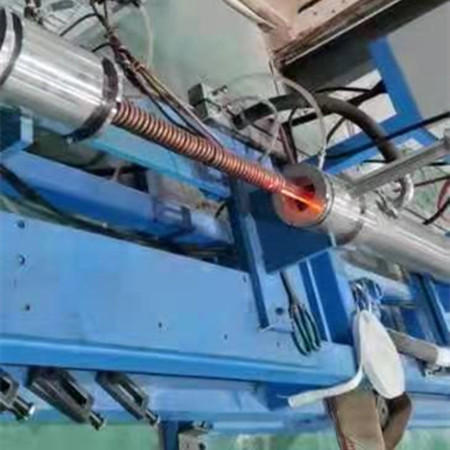

stainless steel coil tubing welded machine

❓ Frequently Asked Questions

What steel grades and standards do your coiled tubes support?

Our tubes comply with major international standards including ASTM, AISI, DIN, EN, GB, and JIS. We manufacture in multiple steel grades across the 300, 600, and 800 series, including 304, 304L, 316, 316L, 202, 2205, 2507, 625, and 825.

What is the typical size and thickness range of your stainless steel tubing?

The standard thickness range is 0.05-6.5mm, and the outer diameter ranges from 3.18mm to 51mm. Custom dimensions within these specifications are available upon request to fit your design requirements.

What applications are these stainless steel coiled and capillary tubes suitable for?

These tubes are widely used in precision instruments, refrigeration equipment, evaporators, condensers, gas-liquid delivery, beverage machines, medical devices (such as injection needles), scientific research setups, chemical industries, and telecom device miniature antenna tubes.

What is the maximum continuous length available for coiled tubes?

We can produce up to 3500 meters of continuous tubing per piece, matching exact customer requests and layout specifications.

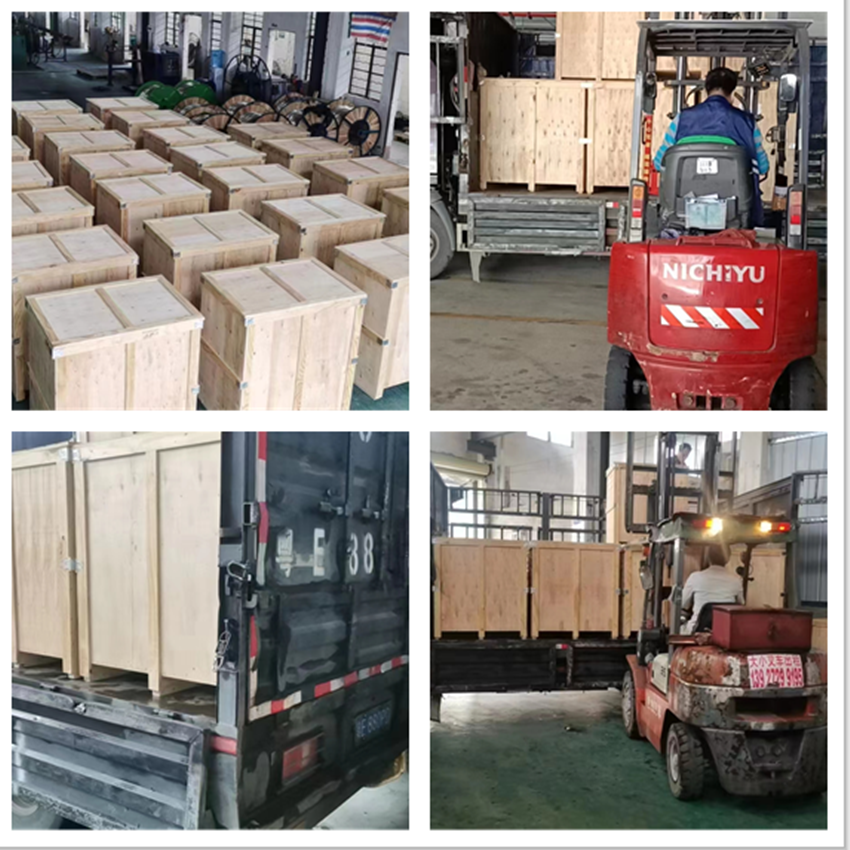

How are the tubes packaged to prevent damage during shipping?

We wrap the tubes in shafts and pack them with plastic or place them in custom-made wooden cases, ensuring maximum protection for safe international transit.

What testing processes do your high precision capillary tubes undergo?

To guarantee the highest quality and safety, our tubes undergo various tests including squash test, extended test, water pressure test, crystal rot test, heat treatment, and Non-Destructive Testing (NDT).
