Sihe Steel
Sihe Steel
Stainless steel Super Duplex 2507 is designed to handle highly corrosive conditions and situations were high strength is required. High molybdenum, chromium and nitrogen content in Super Duplex 2507 help the material withstand pitting and crevice corrosion. The material is also resistant to chloride stress corrosion cracking, to erosion corrosion, to corrosion fatigue, to general corrosion in acids. This alloy has good weldability and very high mechanical strength.

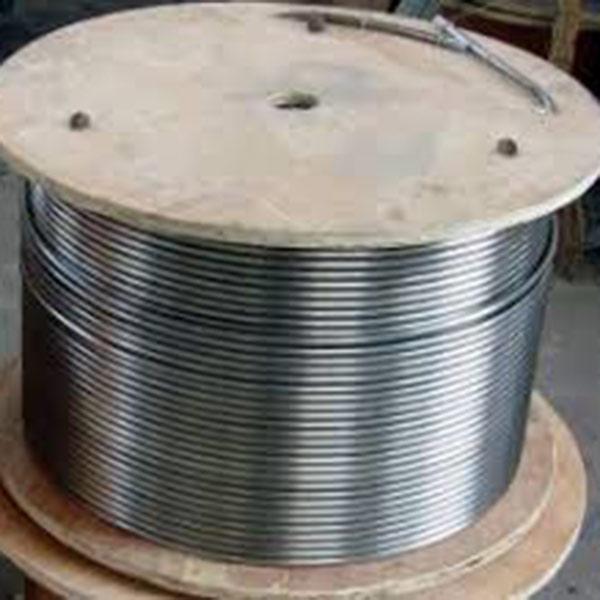

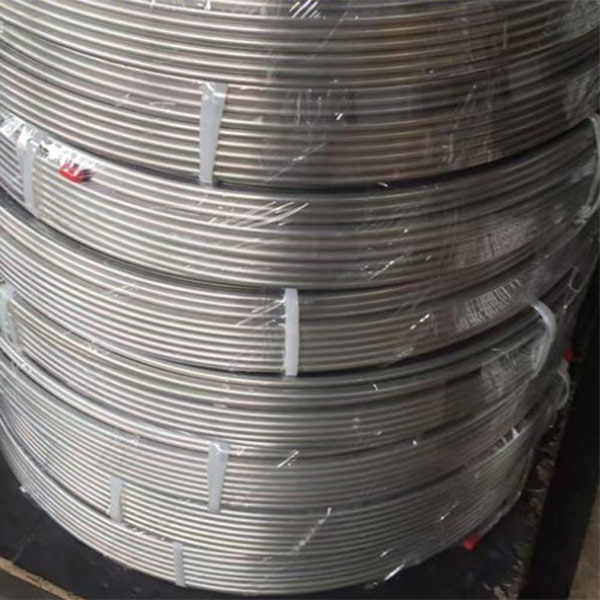

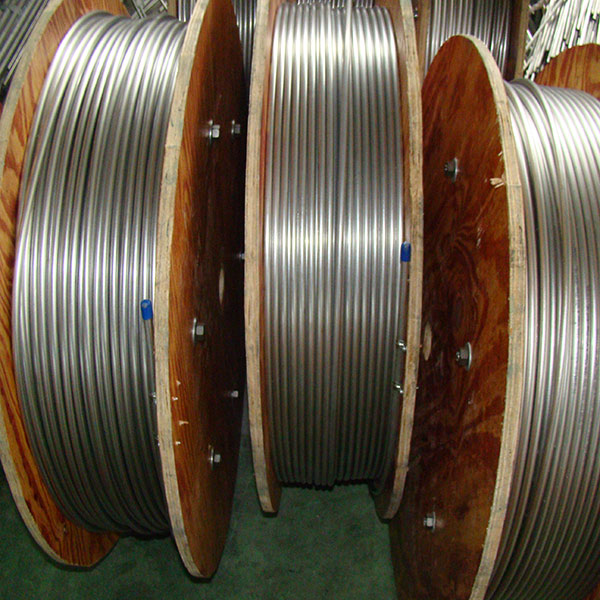

stainless steel grade Super Duplex 2507 stainless steel coiled tubing /coil tubes
The chemical composition of stainless steel grade Super Duplex 2507 is outlined in the following table.
| Element | Content (%) |
|---|---|
| Chromium, Cr | 24 – 26 |
| Nickel, Ni | 6 – 8 |
| Molybdenum, Mo | 3 – 5 |
| Manganese, Mn | 1.20 max |
| Silicon, Si | 0.80 max |
| Copper, Cu | 0.50 max |
| Nitrogen, N | 0.24 – 0.32 |
| Phosphorous, P | 0.035 max |
| Carbon, C | 0.030 max |
| Sulfur, S | 0.020 max |
| Iron, Fe | Balance |
The physical properties of stainless steel grade Super Duplex 2507 are tabulated below.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.8 g/cm³ | 0.281 lb/in³ |
| Melting point | 1350°C | 2460°F |
| Size of Stainless steel Coil Tube | ||||
|---|---|---|---|---|
| ITEM | Grade | Size (MM) | Pressure (Mpa) | Length (M) |
| 1 | 316L、304L、304 alloy 625 825 2205 2507 | 1/8″×0.025″ | 3200 | 500-2000 |
| 2 | 316L、304L、304 alloy 625 825 2205 2507 | 1/8″×0.035″ | 3200 | 500-2000 |
| 3 | 316L、304L、304 alloy 625 825 2205 2507 | 1/4″×0.035″ | 2000 | 500-2000 |
| 4 | 316L、304L、304 alloy 625 825 2205 2507 | 1/4″×0.049″ | 2000 | 500-2000 |
| 5 | 316L、304L、304 alloy 625 825 2205 2507 | 3/8″×0.035″ | 1500 | 500-2000 |
| 6 | 316L、304L、304 alloy 625 825 2205 2507 | 3/8″×0.049″ | 1500 | 500-2000 |
| 7 | 316L、304L、304 alloy 625 825 2205 2507 | 1/2″×0.049″ | 1000 | 500-2000 |
| 8 | 316L、304L、304 alloy 625 825 2205 2507 | 1/2″×0.065″ | 1000 | 500-2000 |
| 9 | 316L、304L、304 alloy 625 825 2205 2507 | φ3mm×0.7mm | 3200 | 500-2000 |
| 10 | 316L、304L、304 alloy 625 825 2205 2507 | φ3mm×0.9mm | 3200 | 500-2000 |
| 11 | 316L、304L、304 alloy 625 825 2205 2507 | φ4mm×0.9mm | 3000 | 500-2000 |
| 12 | 316L、304L、304 alloy 625 825 2205 2507 | φ4mm×1.1mm | 3000 | 500-2000 |
| 13 | 316L、304L、304 alloy 625 825 2205 2507 | φ6mm×0.9mm | 2000 | 500-2000 |
| 14 | 316L、304L、304 alloy 625 825 2205 2507 | φ6mm×1.1mm | 2000 | 500-2000 |
| 15 | 316L、304L、304 alloy 625 825 2205 2507 | φ8mm×1mm | 1800 | 500-2000 |
| 16 | 316L、304L、304 alloy 625 825 2205 2507 | φ8mm×1.2mm | 1800 | 500-2000 |
| 17 | 316L、304L、304 alloy 625 825 2205 2507 | φ10mm×1mm | 1500 | 500-2000 |
| 18 | 316L、304L、304 alloy 625 825 2205 2507 | φ10mm×1.2mm | 1500 | 500-2000 |
| 19 | 316L、304L、304 alloy 625 825 2205 2507 | φ10mm×2mm | 500 | 500-2000 |
| 20 | 316L、304L、304 alloy 625 825 2205 2507 | φ12mm×1.5mm | 500 | 500-2000 |
| Item / W.T (mm) | O.D (mm) | 3.0-4.0 | 4.01-6.00 | 6.01-8.00 | 8.01-10.0 | 10.01-12.7 | 12.71-19.05 | 19.05-25.4 |
|---|---|---|---|---|---|---|---|---|
| Stainless Steel Coiled Tubes/ Coil Tubing | 0.30-0.40 | √ | √ | √ | ||||
| Stainless Steel Coiled Tubes/ Coil Tubing | 0.41-0.50 | √ | √ | √ | √ | |||
| Stainless Steel Coiled Tubes/ Coil Tubing | 0.51-0.60 | √ | √ | √ | √ | √ | ||
| Stainless Steel Coiled Tubes/ Coil Tubing | 0.61-0.70 | √ | √ | √ | √ | √ | √ | |
| Stainless Steel Coiled Tubes/ Coil Tubing | 0.71-1.00 | √ | √ | √ | √ | √ | √ | √ |
| Stainless Steel Coiled Tubes/ Coil Tubing | 1.01-1.20 | √ | √ | √ | √ | √ | √ | |
| Stainless Steel Coiled Tubes/ Coil Tubing | 1.21-1.50 | √ | √ | √ | √ | |||
| Stainless Steel Coiled Tubes/ Coil Tubing | 1.51-2.0 | √ | √ | √ |
| U.S.A (AISI) | GERMANY (DIN) | GERMANY (W.N.) | FRANCE (AFNOR) | JAPAN (JIS) | ITALY (UNI) | SWEDEN (SIS) | U.K. (BSI) | E.U. (EURONORM) | SPAIN | RUSSIA |
|---|---|---|---|---|---|---|---|---|---|---|
| 201 | - | - | - | SUS 201 | - | - | - | - | - | - |
| 301 | X 12 CrNi 17 7 | 1.4310 | Z 12 CN 17-07 | SUS 301 | X 12 CrNi 1707 | 23 31 | 301S21 | X 12 CrNi 17 7 | X 12 CrNi 17-07 | - |
| 302 | X 5 CrNi 18 7 | 1.4319 | Z 10 CN 18-09 | SUS 302 | X 10 CrNi 1809 | 23 31 | 302S25 | X 10 CrNi 18 9 | X 10 CrNi 18-09 | 12KH18N9 |
| 303 | X 10 CrNiS 18 9 | 1.4305 | Z 10 CNF 18-09 | SUS 303 | X 10 CrNiS 1809 | 23 46 | 303S21 | X 10 CrNiS 18 9 | X 10 CrNiS 18-09 | - |
| 303 Se | - | - | Z 10 CNF 18-09 | SUS 303 Se | X 10 CrNiS 1809 | - | 303S41 | - | X 10 CrNiS 18-09 | 12KH18N10E |
| 304 | X 5 CrNi 18 10 / X 5 CrNi 18 12 | 1.4301 / 1.4303 | Z 6 CN 18-09 | SUS 304 | X 5 CrNi 1810 | 23 32 | 304S15 / 304S16 | X 6 CrNi 18 10 | X 6 CrNi 19-10 | 08KH18N10 / 06KH18N11 |
| 304 N | - | - | - | SUS 304N1 | X 5 CrNiN 1810 | - | - | - | - | - |
| 304 H | - | - | - | SUS F 304H | X 8 CrNi 1910 | - | - | - | X 6 CrNi 19-10 | - |
| 304 L | X 2 CrNi 18 11 | 1.4306 | Z 2 CN 18-10 | SUS 304L | X 2 CrNi 1911 | 23 52 | 304S11 | X 3 CrNi 18 10 | X 2 CrNi 19-10 | 03KH18N11 |
| - | X 2 CrNiN 18 10 | 1.4311 | Z 2 CN 18-10-Az | SUS 304LN | X 2 CrNiN 1811 | 23 71 | - | - | - | - |
| 305 | - | - | Z 8 CN 18-12 | SUS 305 | X 8 CrNi 1812 | 23 33 | 305S19 | X 8 CrNi 18 12 | X 8 CrNi 18-12 | - |
| - | - | - | Z 6 CNU 18-10 | SUS XM7 | - | - | - | X 6 CrNiCu 18 10 4 Kd | - | - |
| 309 | X 15 CrNiS 20 12 | 1.4828 | Z 15 CN 24-13 | SUH 309 | X 16 CrNi 2314 | - | 309S24 | X 15 CrNi 23 13 | - | - |
| 309 S | - | - | - | SUS 309S | X 6 CrNi 2314 | - | - | X 6 CrNi 22 13 | - | - |
| 310 | X 12 CrNi 25 21 | 1.4845 | - | SUH 310 | X 22 CrNi 2520 | - | 310S24 | - | - | 20KH23N18 |
| 310 S | X 12 CrNi 25 20 | 1.4842 | Z 12 CN 25-20 | SUS 310S | X 5 CrNi 2520 | 23 61 | - | X 6 CrNi 25 20 | - | 10KH23N18 |
| 314 | X 15 CrNiSi 25 20 | 1.4841 | Z 12 CNS 25-20 | - | X 16 CrNiSi 2520 | - | - | X 15 CrNiSi 25 20 | - | 20KH25N20S2 |
| 316 | X 5 CrNiMo 17 12 2 | 1.4401 | Z 6 CND 17-11 | SUS 316 | X 5 CrNiMo 1712 | 23 47 | 316S31 | X 6 CrNiMo 17 12 2 | X 6 CrNiMo 17-12-03 | - |
| 316 | X 5 CrNiMo 17 13 3 | 1.4436 | Z 6 CND 17-12 | SUS 316 | X 5 CrNiMo 1713 | 23 43 | 316S33 | X 6 CrNiMo 17 13 3 | X 6 CrNiMo 17-12-03 | - |
| 316 F | X 12 CrNiMoS 18 11 | 1.4427 | - | - | - | - | - | - | - | - |
| 316 N | - | - | - | SUS 316N | - | - | - | - | - | - |
| 316 H | - | - | - | SUS F 316H | X 8 CrNiMo 1712 | - | - | - | X 5 CrNiMo 17-12 | - |
| 316 L | X 2 CrNiMo 17 13 2 | 1.4404 | Z 2 CND 17-12 | SUS 316L | X 2 CrNiMo 1712 | 23 48 | 316S11 | X 3 CrNiMo 17 12 2 | X 2 CrNiMo 17-12-03 | 03KH17N14M2 |
| - | X 2 CrNiMoN 17 12 2 | 1.4406 | Z 2 CND 17-12-Az | SUS 316LN | X 2 CrNiMoN 1712 | - | - | - | - | - |
| 316 L | X 2 CrNiMo 18 14 3 | 1.4435 | Z 2 CND 17-13 | - | X 2 CrNiMo 1713 | 23 53 | 316S13 | X 3 CrNiMo 17 13 3 | X 2 CrNiMo 17-12-03 | 03KH16N15M3 |
| - | X 6 CrNiMoTi 17 12 2 | 1.4571 | Z6 CNDT 17-12 | - | X 6 CrNiMoTi 1712 | 23 50 | 320S31 | X 6 CrNiMoTi 17 12 2 | X 6 CrNiMoTi 17-12-03 | 08KH17N13M2T |
| 317 | - | - | - | SUS 317 | X 5 CrNiMo 1815 | 23 66 | 317S16 | - | - | - |
| 317 L | X 2 CrNiMo 18 16 4 | 1.4438 | Z 2 CND 19-15 | SUS 317L | X 2 CrNiMo 1815 | 23 67 | 317S12 | X 3 CrNiMo 18 16 4 | - | - |
| 321 | X 6 CrNiTi 18 10 | 1.4541 | Z 6 CNT 18-10 | SUS 321 | X 6 CrNiTi 1811 | 23 37 | 321S31 | X 6 CrNiTi 18 10 | X 6 CrNiTi 18-11 | 08KH18N10T |
| 347 | X 6 CrNiNb 18 10 | 1.4550 | Z 6 CNNb 18-10 | SUS 347 | X 6 CrNiNb 1811 | 23 38 | 347S31 | X 6 CrNiNb 18 10 | X 6 CrNiNb 18-11 | 08KH18N12B |
| UNS31803 | X 2 CrNiMoN 22 5 | 1.4462 | - | - | - | - | - | - | - | - |
| UNS32760 | X 3 CrNiMoN 25 7 | 1.4501 | Z 3 CND 25-06Az | - | - | - | - | - | - | - |
