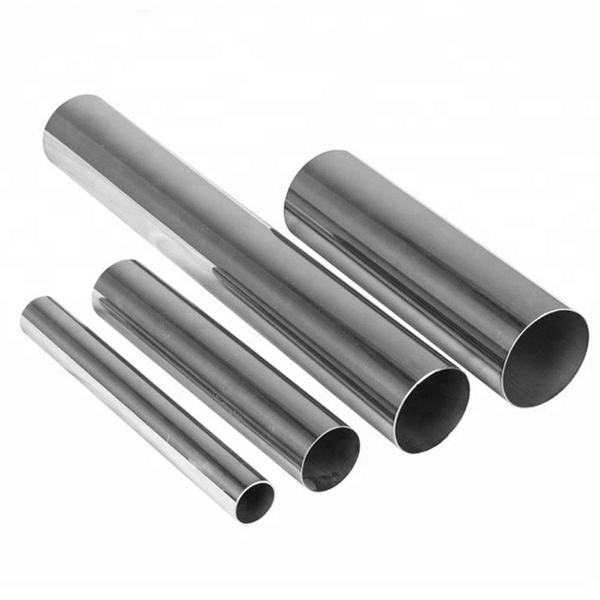

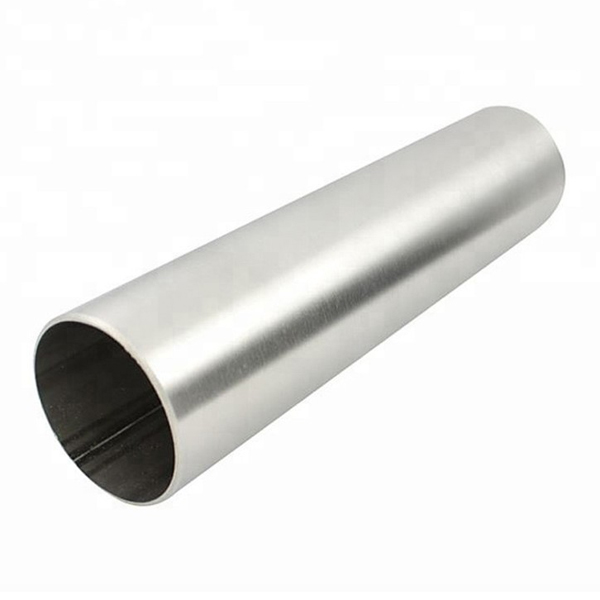

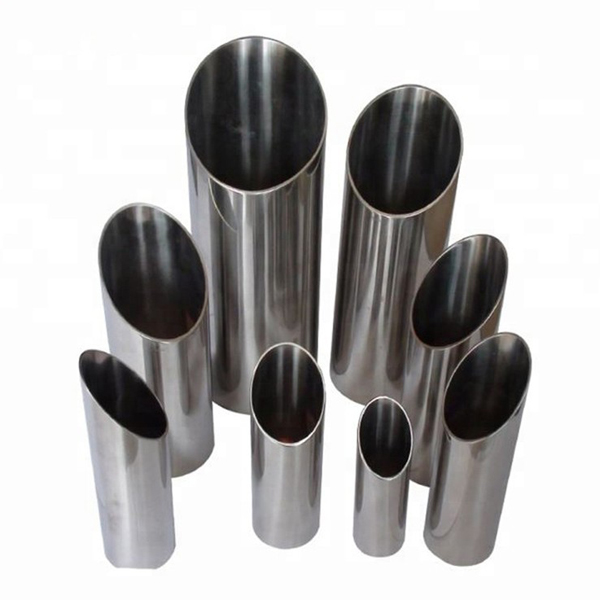

Wholesale ASTM Stainless steel Precision pipe for alloy825 grade Supplier, Pricelist

1 / 3

Wholesale ASTM Stainless steel Precision pipe for alloy825 grade Supplier, Pricelist

Stianless Steel Pipe /TUBE 1. : Grade :201 202 304 304l 316 316l 2. Standard:ASTM DIN JIS AISI GB 3.Surface: 2B BA NO.4 Mirror 320# 380# 400#600# 800# 4.Length :6M 11.5 M 12M or As Per your requirment. 5.OD :Round Tube 9.52-219MM Retangle :10*10-150-150 6.Inner packing :Plastic Bag 7.Outer Packing: Carton /Woven/Wooden Packaging 8.Od:+/- 0.2mm, Thickness: +/- 0.02mm

Send Inquiry

Product Description

Stainless Steel Coil Products

stainless steel coil tube stainless steel tube coil stainless steel coil tubing stainless steel coil pipe stainless steel coil tube suppliers stainless steel coil tube manufacturers stainless steel pipe coil

ASTM Stainless Steel Precision Pipe for Alloy 825 Grade Specifications

Standard

ASTM A-312, ASTM A-269, ASTM A-632, ASTM A-213, DIN 17458, DIN 17456, JIS G3463, JIS G3459, JIS G3448

Material Grade

201 / 202 / 304 / 316 / ALLOY 825

Outer Diameter

0.1mm - 8mm

Thickness

0.05mm - 2.1mm

Length

2440mm, 3050mm, 5800mm, 6000mm, 6100mm or as customer request

Tolerance

OD: +/- 0.2mm | Thickness: +/- 10% | Length: +/- 10mm

Surface Finish

Satin / Hairline: 180#, 320# | Polish: 400#, 600#, 800# or Mirror surface

Packing

Plastic bag / woven packing (custom packing available upon request)

Chemical Composition for Alloy 825 Stainless Steel Precision Pipe

Limit	C	Mn	Mo	Cr	Ni	Cu	Ti	P	S	Si	V	Al
Min	-	-	2.500	19.500	-	-	-	-	-	-	-	-
Max	0.050	1.000	3.500	23.500	46.000	3.000	1.200	-	0.030	0.500	-	0.200

Mechanical Properties

Property	Value (MPa)	Value (psi)
Tensile Strength	586 MPa min	85,000 psi min
Yield Strength	241 MPa min	-
Total Elongation Under Load	30.000 %	-
Hardness	35 Max HRC	-

Application Fields

Hydraulic and pneumatic components

Textile chemical fiber machinery

Medical, chemical, and food hygiene

Instrumentation and sensor pipes

Boilers, pressure vessels, mechanical & electronic industries

Steel Tube Size Chart (Square, Rectangular, Round)

Square Steel Tube (mm)	Rectangular Steel Tube (mm)	Round Steel Tube (mm)
10×10×0.6~3.0	10×20×0.6~3.0	6x0.6~1.0
15×15×0.6~3.0	20×30×0.6~3.0	12x0.6~1.5
20×20×0.6~3.0	20×40×0.6~3.0	13x0.6~1.5
25×25×0.6~3.0	25×50×0.6~3.5	16x0.6~2.0
30×30×0.6~3.5	30×50×0.6~3.5	19x0.6~3.0
40×40×0.6~3.5	40×60×0.6~3.5	20x0.6~3.0
50×50×0.6~3.5	40×80×0.6~3.5	22x0.6~3.0
60×60×0.6~3.5	60×80×1.0~6.0	25x0.6~3.0
70×70×0.6~3.5	50×100×1.0~6.0	27x0.6~3.0
75×75×0.6~3.5	60×120×1.0~6.0	32x0.6~3.0
80×80×1.0~6.0	80×120×2.0~8.0	40x0.6~3.5
100×100×2.0~8.0	80×160×2.0~8.0	38x0.6~3.0
120×120×2.0~8.0	100×150×2.0~8.0	48x0.6~3.5
150×150×2.0~8.0	100×200×2.0~8.0	60x0.6~3.5
200×200×4.0~16.0	150×250×4.0~12.0	76x0.6~3.5
250×250×4.0~16.0	200×300×4.0~16.0	89x1.0~6.0
300×300×4.0~16.0	300×400×4.0~16.0	104x1.0~6.0
400×400×4.0~16.0	300×500×4.0~16.0	114x1.0~6.0

Physical Properties & Composition of Stainless Steel Polishing Pipe (%)

Grade	Carbon max	Manganese max	Phosphorus max	Sulfur max	Silicon max	Nickel	Chromium	Molybdenum	Titanium	Columbium + Tantalum
Austenitic
301	0.15	2.00	0.040	0.030	1.00	6.0–8.0	16.0–18.0	...	...	...
302	0.15	2.00	0.040	0.030	1.00	8.0–10.0	17.0–19.0	...	...	...
304	0.08	2.00	0.040	0.030	1.00	8.0–11.0	18.0–20.0	...	...	...
304L	0.035A	2.00	0.040	0.030	1.00	8.0–13.0	18.0–20.0	...	...	...
305	0.12	2.00	0.040	0.030	1.00	10.0–13.0	17.0–19.0	...	...	...
309S	0.08	2.00	0.040	0.030	1.00	12.0–15.0	22.0–24.0	...	...	. . .
309S-Cb	0.08	2.00	0.040	0.030	1.00	12.0–15.0	22.0–24.0	...	...	B
310S	0.08	2.00	0.040	0.030	1.00	19.0–22.0	24.0–26.0	...	...	...
316	0.08	2.00	0.040	0.030	1.00	10.0–14.0	16.0–18.0	2.0–3.0	...	...
316L	0.035A	2.00	0.040	0.030	1.00	10.0–15.0	16.0–18.0	2.0–3.0	...	...
317	0.08	2.00	0.040	0.030	1.00	11.0–14.0	18.0–20.0	3.0–4.0	...	...
321	0.08	2.00	0.040	0.030	1.00	9.0–13.0	17.0–20.0	...	C	...
330	0.15	2.00	0.040	0.030	1.00	33.0–36.0	14.0–16.0	...	...	...
347	0.08	2.00	0.040	0.030	1.00	9.0–13.0	17.0–20.0	...	...	B
429	0.12	1.00	0.040	0.030	1.00	0.50 max	14.0–16.0	...	...	...
430	0.12	1.00	0.040	0.030	1.00	0.50 max	16.0–18.0	...	...	...
430-Ti	0.10	1.00	0.040	0.030	1.00	0.075 max	16.0–19.5	...	5 × C min, 0.75 max	...

Stainless Steel Coiled Tubing / Coiled Tubes Material Grade Cross-Reference Table

U.S.A. (AISI)	GERMANY (DIN 17006)	GERMANY (W.N. 17007)	FRANCE (AFNOR)	JAPAN (JIS)	ITALY (UNI)	SWEDEN (SIS)	U.K. (BSI)	E.U. (EURONORM)	SPAIN (UNE)	RUSSIA (GOST)
201	-	-	-	SUS 201	-	-	-	-	-	-
301	X 12 CrNi 17 7	1.4310	Z 12 CN 17-07	SUS 301	X 12 CrNi 1707	23 31	301S21	X 12 CrNi 17 7	X 12 CrNi 17-07	-
302	X 5 CrNi 18 7	1.4319	Z 10 CN 18-09	SUS 302	X 10 CrNi 1809	23 31	302S25	X 10 CrNi 18 9	X 10 CrNi 18-09	12KH18N9
303	X 10 CrNiS 18 9	1.4305	Z 10 CNF 18-09	SUS 303	X 10 CrNiS 1809	23 46	303S21	X 10 CrNiS 18 9	X 10 CrNiS 18-09	-
303 Se	-	-	Z 10 CNF 18-09	SUS 303 Se	X 10 CrNiS 1809	-	303S41	-	X 10 CrNiS 18-09	12KH18N10E
304	X 5 CrNi 18 10 X 5 CrNi 18 12	1.4301 1.4303	Z 6 CN 18-09	SUS 304	X 5 CrNi 1810	23 32	304S15 304S16	X 6 CrNi 18 10	X 6 CrNi 19-10	08KH18N10 06KH18N11
304 N	-	-	-	SUS 304N1	X 5 CrNiN 1810	-	-	-	-	-
304 H	-	-	-	SUS F 304H	X 8 CrNi 1910	-	-	-	X 6 CrNi 19-10	-
304 L	X 2 CrNi 18 11	1.4306	Z 2 CN 18-10	SUS 304L	X 2 CrNi 1911	23 52	304S11	X 3 CrNi 18 10	X 2 CrNi 19-10	03KH18N11
-	X 2 CrNiN 18 10	1.4311	Z 2 CN 18-10-Az	SUS 304LN	X 2 CrNiN 1811	23 71	-	-	-	-
305	-	-	Z 8 CN 18-12	SUS 305	X 8 CrNi 1812	23 33	305S19	X 8 CrNi 18 12	X 8 CrNi 18-12	-
-	-	-	Z 6 CNU 18-10	SUS XM7	-	-	-	X 6 CrNiCu 18 10 4 Kd	-	-
309	X 15 CrNiS 20 12	1.4828	Z 15 CN 24-13	SUH 309	X 16 CrNi 2314	-	309S24	X 15 CrNi 23 13	-	-
309 S	-	-	-	SUS 309S	X 6 CrNi 2314	-	-	X 6 CrNi 22 13	-	-
310	X 12 CrNi 25 21	1.4845	-	SUH 310	X 22 CrNi 2520	-	310S24	-	-	20KH23N18
310 S	X 12 CrNi 25 20	1.4842	Z 12 CN 25-20	SUS 310S	X 5 CrNi 2520	23 61	-	X 6 CrNi 25 20	-	10KH23N18
314	X 15 CrNiSi 25 20	1.4841	Z 12 CNS 25-20	-	X 16 CrNiSi 2520	-	-	X 15 CrNiSi 25 20	-	20KH25N20S2
316	X 5 CrNiMo 17 12 2	1.4401	Z 6 CND 17-11	SUS 316	X 5 CrNiMo 1712	23 47	316S31	X 6 CrNiMo 17 12 2	X 6 CrNiMo 17-12-03	-
316	X 5 CrNiMo 17 13 3	1.4436	Z 6 CND 17-12	SUS 316	X 5 CrNiMo 1713	23 43	316S33	X 6 CrNiMo 17 13 3	X 6 CrNiMo 17-12-03	-
316 F	X 12 CrNiMoS 18 11	1.4427	-	-	-	-	-	-	-	-
316 N	-	-	-	SUS 316N	-	-	-	-	-	-
316 H	-	-	-	SUS F 316H	X 8 CrNiMo 1712	-	-	-	X 5 CrNiMo 17-12	-
316 H	-	-	-	-	X 8 CrNiMo 1713	-	-	-	X 6 CrNiMo 17-12-03	-
316 L	X 2 CrNiMo 17 13 2	1.4404	Z 2 CND 17-12	SUS 316L	X 2 CrNiMo 1712	23 48	316S11	X 3 CrNiMo 17 12 2	X 2 CrNiMo 17-12-03	03KH17N14M2
-	X 2 CrNiMoN 17 12 2	1.4406	Z 2 CND 17-12-Az	SUS 316LN	X 2 CrNiMoN 1712	-	-	-	-	-
316 L	X 2 CrNiMo 18 14 3	1.4435	Z 2 CND 17-13	-	X 2 CrNiMo 1713	23 53	316S13	X 3 CrNiMo 17 13 3	X 2 CrNiMo 17-12-03	03KH16N15M3
-	X 2 CrNiMoN 17 13 3	1.4429	Z 2 CND 17-13-Az	-	X 2 CrNiMoN 1713	23 75	-	-	-	-
-	X 6 CrNiMoTi 17 12 2	1.4571	Z6 CNDT 17-12	-	X 6 CrNiMoTi 1712	23 50	320S31	X 6 CrNiMoTi 17 12 2	X 6 CrNiMoTi 17-12-03	08KH17N13M2T 10KH17N13M2T
-	X 10 CrNiMoTi 18 12	1.4573	-	-	X 6 CrNiMoTi 1713	-	320S33	X 6 CrNiMoTI 17 13 3	X 6 CrNiMoTi 17-12-03	08KH17N13M2T 10KH17N13M2T
-	X 6 CrNiMoNb 17 12 2	1.4580	Z 6 CNDNb 17-12	-	X 6 CrNiMoNb 1712	-	-	X 6 CrNiMoNb 17 12 2	-	08KH16N13M2B
-	X 10 CrNiMoNb 18 12	1.4583	-	-	X 6 CrNiMoNb 1713	-	-	X 6 CrNiMoNb 17 13 3	-	09KH16N15M3B
317	-	-	-	SUS 317	X 5 CrNiMo 1815	23 66	317S16	-	-	-
317 L	X 2 CrNiMo 18 16 4	1.4438	Z 2 CND 19-15	SUS 317L	X 2 CrNiMo 1815	23 67	317S12	X 3 CrNiMo 18 16 4	-	-
317 L	X 2 CrNiMo 18 16 4	1.4438	Z 2 CND 19-15	SUS 317L	X 2 CrNiMo 1816	23 67	317S12	X 3 CrNiMo 18 16 4	-	-
330	X 12 NiCrSi 36 16	1.4864	Z 12NCS 35-16	SUH 330	-	-	-	-	-	-
321	X 6 CrNiTi 18 10 X 12 CrNiTi 18 9	1.4541 1.4878	Z 6 CNT 18-10	SUS 321	X 6 CrNiTi 1811	23 37	321S31	X 6 CrNiTi 18 10	X 6 CrNiTi 18-11	08KH18N10T
321 H	-	-	-	SUS 321H	X 8 CrNiTi 1811	-	321S20	-	X 7 CrNiTi 18-11	12KH18N10T
329	X 8 CrNiMo 27 5	1.4460	-	SUS 329J1	-	23 24	-	-	-	-
347	X 6 CrNiNb 18 10	1.4550	Z 6 CNNb 18-10	SUS 347	X 6 CrNiNb 1811	23 38	347S31	X 6 CrNiNb 18 10	X 6 CrNiNb 18-11	08KH18N12B
347 H	-	-	-	SUS F 347H	X 8 CrNiNb 1811	-	-	-	X 7 CrNiNb 18-11	-
904L	-	1.4939	Z 12 CNDV 12-02	-	-	-	-	-	-	-
UNS31803	X 2 CrNiMoN 22 5	1.4462	-	-	-	-	-	-	-	-
UNS32760	X 3 CrNiMoN 25 7	1.4501	Z 3 CND 25-06Az	-	-	-	-	-	-	-
403	X 6 Cr 13 X 10 Cr 13 X 15 Cr 13	1.4000 1.4006 1.4024	Z 12 C 13	SUS 403	X 12 Cr 13	23 02	403S17	X 10 Cr 13 X 12 Cr 13	X 6 Cr 13	12Kh13
405	X 6 CrAl 13	1.4002	Z 6 CA 13	SUS 405	X 6 CrAl 13	-	405S17	X 6 CrAl 13	X 6 CrAl 13	-
-	X 10 CrAl 7	1.4713	Z 8 CA 7	-	-	-	-	X 10 CrAl 7	-	-
-	X 10 CrAl 13	1.4724	-	-	X 10 CrAl 12	-	-	-	-	10Kh13SYu
-	X 10 CrAl 18	1.4742	-	-	-	-	-	X 10 CrSiAl 18	-	15Kh18SYu
409	X 6 CrTi 12	1.4512	Z 6 CT 12	SUH 409	X 6 CrTi 12	-	409S19	X 5 CrTi 12	-	-
-	-	-	-	-	X 2 CrTi 12	-	-	-	-	-
410	X 6 Cr 13 X 10 Cr 13 X 15 Cr 13	1.4000 1.4006 1.4024	Z 10 C 13 Z 12 C 13	SUS 410	X 12 Cr 13	23 02	410S21	X 12 Cr 13	X 12 Cr 13	12Kh13
410 S	X 6 Cr 13	1.4000	Z 6 C 13	SUS 410S	X 6 Cr 13	23 01	403S17	X 6 Cr 13	-	08Kh13

Factory Overview

Quality Advantage

The quality of our products for the control line in the oil and gas sector is assured not just during the controlled manufacturing process but also by way of finished product testing. Typical tests include:

Non-destructive tests

Hydrostatic tests

Surface finish controls

Dimensional accuracy measurements

Flare and coning tests

Mechanical and chemical property testing

Application Capillary Tube

Medical device industry

Temperature-guided industrial control, sensor pipes, tube thermometers

Pens care industry core tubes

Micro-tube antennas, various types of small precision stainless steel antennas

A variety of electronic small-diameter stainless steel capillaries

Jewelry needle punch

Watches, picture tubes

Car antenna tubes, bar antennas using tubes, antenna tubes

Laser engraving equipment to use stainless steel tube

Fishing gear, accessories, Yugan out with possession of

Diet with stainless steel capillary

All types of mobile phone stylus / computer stylus

Heating pipe industry, oil industry

Printers, silent box needle

Pull a double-melt stainless steel tube used in window-coupled

A variety of industrial small diameter precision stainless steel tubes

Precision dispensing with stainless steel needles

Microphone, headphones and microphone to use stainless steel tube, etc.

Frequently Asked Questions

What are the standard dimensions for Alloy 825 stainless steel precision pipes?

Alloy 825 precision pipes have an outer diameter range of 0.1mm to 8mm and a thickness range of 0.05mm to 2.1mm. Typical length options include 2440mm, 3050mm, 5800mm, 6000mm, and 6100mm, or they can be customized based on requirements.

Which manufacturing standards apply to these stainless steel coil tubes?

Our stainless steel coil products comply with major international standards including ASTM A-312, ASTM A-269, ASTM A-632, ASTM A-213, DIN 17458, DIN 17456, as well as JIS G3463, JIS G3459, and JIS G3448.

What surface finishes are available for precision coil tubes?

You can choose from Satin/Hairline finishes (180# or 320#) or Polished finishes (400#, 600#, 800#) including high-end mirror surfaces, depending on your application requirements.

What quality tests do control line coiled tubings undergo?

To guarantee optimal safety in oil and gas sectors, our tubing undergoes rigorous quality testing including Non-destructive testing, Hydrostatic testing, Surface finish control, Dimensional accuracy checks, Flare & coning tests, and Mechanical & chemical property validation.

What are the typical application areas for capillary tubes?

Capillary tubes are widely used in medical devices, temperature sensors, industrial controllers, automotive antennas, pen cores, electronic systems, laser engraving machinery, fishing gear, and precision dispensing systems.
