Wholesale Stainless steel Precision pipe for alloy 625 grade Suppliers, Factory

Stianless Steel Pipe /TUBE: 1. : Grade :201 202 304 304l 316 316l 2. Standard:ASTM DIN JIS AISI GB 3.Surface: 2B BA NO.4 Mirror 320# 380# 400#600# 800# 4.Length :6M 11.5 M 12M or As Per your requirment. 5.OD :Round Tube 9.52-219MM Retangle :10*10-150-150 6.Inner packing :Plastic Bag 7.Outer Packing: Carton /Woven/Wooden Packaging 8.Od:+/- 0.2mm, Thickness: +/- 0.02mm

Send Inquiry

Product Description

Stainless Steel Coil Products

stainless steel coil tube stainless steel tube coil stainless steel coil tubing stainless steel coil pipe stainless steel coil tube suppliers stainless steel coil tube manufacturers stainless steel pipe coil

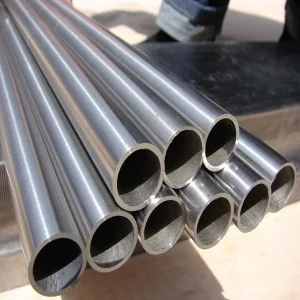

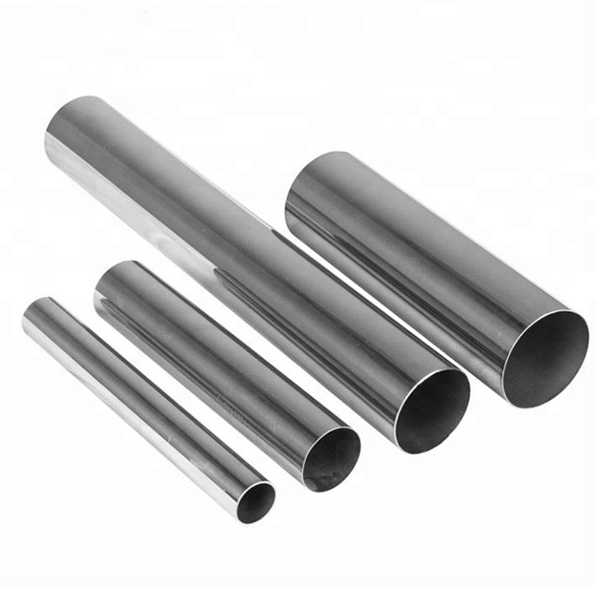

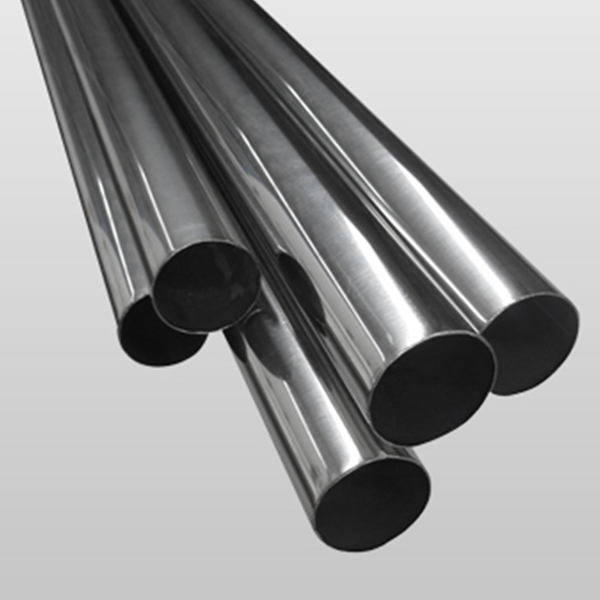

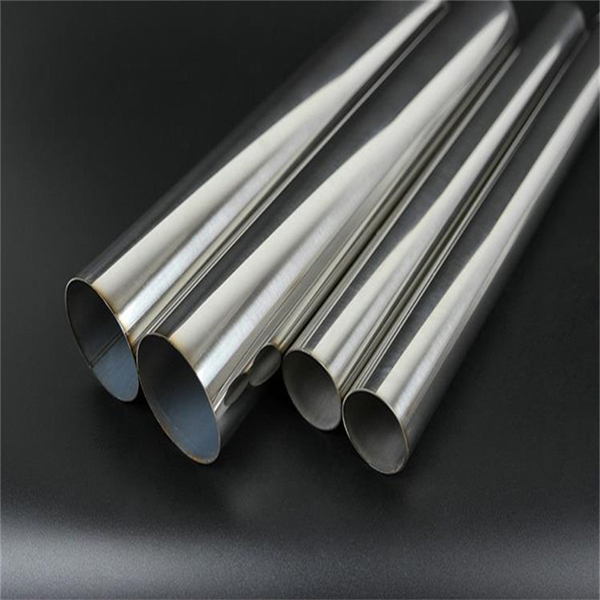

Stainless Steel Precision Pipe for Alloy 625 Grade

Standard: ASTM A-312, ASTM A-269, ASTM A-632, ASTM A-213, DIN 17458, DIN 17456, JIS G3463, JIS G3459, JIS G3448

Material Grade: 201/202/304/316

Outer Diameter: 0.1mm - 8mm

Thickness: 0.05mm - 2.1mm

Length: 2440mm, 3050mm, 5800mm, 6000mm, 6100mm, or as customer request

Tolerance:

a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 10% or as customer request
c) Length: +/- 10mm

Surface: Satin / Hairline (180#, 320#), Polish (400#, 600#, 800#) or Mirror surface

Packing: Plastic bag / woven packing

The Chemical Composition for Alloy 625 Stainless Steel Precision Pipe

	C	Mn	Mo	Cr	Ni	Cu	Ti	P	S	Si	V	Al
Min	-	-	8.000	20.000	-	-	-	-	-	-	-	-
Max	0.100	0.500	10.000	23.000	58.000	-	0.400	0.015	0.015	-	-	0.400

Mechanical Properties

Property	Metric Value	Imperial Value
Tensile Strength	827 MPa min	120,000 psi min
Yield Strength	414 MPa min	-
Total Elongation Under Load	20.000 %	-
Hardness	35 Max HRC	-

Application Areas

Hydraulic pneumatic components
Textile chemical fiber machinery
Medical and chemical, food hygiene
Instrumentation, boilers, pressure vessels
Other mechanical and electronic industries

Standard Tube Dimensions

Square Steel Tube (mm)	Rectangular Steel Tube (mm)	Round Steel Tube (mm)
10×10×0.6~3.0	10×20×0.6~3.0	6x0.6~1.0
15×15×0.6~3.0	20×30×0.6~3.0	12x0.6~1.5
20×20×0.6~3.0	20×40×0.6~3.0	13x0.6~1.5
25×25×0.6~3.0	25×50×0.6~3.5	16x0.6~2.0
30×30×0.6~3.5	30×50×0.6~3.5	19x0.6~3.0
40×40×0.6~3.5	40×60×0.6~3.5	20x0.6~3.0
50×50×0.6~3.5	40×80×0.6~3.5	22x0.6~3.0
60×60×0.6~3.5	60×80×1.0~6.0	25x0.6~3.0
70×70×0.6~3.5	50×100×1.0~6.0	27x0.6~3.0
75×75×0.6~3.5	60×120×1.0~6.0	32x0.6~3.0
80×80×1.0~6.0	80×120×2.0~8.0	40x0.6~3.5
100×100×2.0~8.0	80×160×2.0~8.0	38x0.6~3.0
120×120×2.0~8.0	100×150×2.0~8.0	48x0.6~3.5
150×150×2.0~8.0	100×200×2.0~8.0	60x0.6~3.5
200×200×4.0~16.0	150×250×4.0~12.0	76x0.6~3.5
250×250×4.0~16.0	200×300×4.0~16.0	89x1.0~6.0
300×300×4.0~16.0	300×400×4.0~16.0	104x1.0~6.0
400×400×4.0~16.0	300×500×4.0~16.0	114x1.0~6.0

Physical Properties of Stainless Steel Polishing Pipe

Grade	Composition, %
Grade	Carbon, max	Manganese, max	Phosphorus, max	Sulfur, max	Silicon, max	Nickel	Chromium	Molybdenum	Titanium	Columbium + Tantalum
Austenitic
301	0.15	2.00	0.040	0.030	1.00	6.0–8.0	16.0–18.0	...	...	...
302	0.15	2.00	0.040	0.030	1.00	8.0–10.0	17.0–19.0	...	...	...
304	0.08	2.00	0.040	0.030	1.00	8.0–11.0	18.0–20.0	...	...	...
304L	0.035A	2.00	0.040	0.030	1.00	8.0–13.0	18.0–20.0	...	...	...
305	0.12	2.00	0.040	0.030	1.00	10.0–13.0	17.0–19.0	...	...	...
309S	0.08	2.00	0.040	0.030	1.00	12.0–15.0	22.0–24.0	...	...	...
309S-Cb	0.08	2.00	0.040	0.030	1.00	12.0–15.0	22.0–24.0	...	...	B
310S	0.08	2.00	0.040	0.030	1.00	19.0–22.0	24.0–26.0	...	...	...
316	0.08	2.00	0.040	0.030	1.00	10.0–14.0	16.0–18.0	2.0–3.0	...	...
316L	0.035A	2.00	0.040	0.030	1.00	10.0–15.0	16.0–18.0	2.0–3.0	...	...
317	0.08	2.00	0.040	0.030	1.00	11.0–14.0	18.0–20.0	3.0–4.0	...	...
321	0.08	2.00	0.040	0.030	1.00	9.0–13.0	17.0–20.0	...	C	...
330	0.15	2.00	0.040	0.030	1.00	33.0–36.0	14.0–16.0	...	...	...
347	0.08	2.00	0.040	0.030	1.00	9.0–13.0	17.0–20.0	...	...	B
429	0.12	1.00	0.040	0.030	1.00	0.50 max	14.0–16.0	...	...	...
430	0.12	1.00	0.040	0.030	1.00	0.50 max	16.0–18.0	...	...	...
430-Ti	0.10	1.00	0.040	0.030	1.00	0.075 max	16.0–19.5	...	5 × C min, 0.75 max	...

▼ Stainless Steel Coiled Tubing / Coiled Tubes Material Grade Comparison

U.S.A.	GERMANY (DIN)	GERMANY (W.N.)	FRANCE	JAPAN	ITALY	SWEDEN	U.K.	E.U.	SPAIN	RUSSIA
201	-	-	-	SUS 201	-	-	-	-	-	-
301	X 12 CrNi 17 7	1.4310	Z 12 CN 17-07	SUS 301	X 12 CrNi 1707	23 31	301S21	X 12 CrNi 17 7	X 12 CrNi 17-07	-
302	X 5 CrNi 18 7	1.4319	Z 10 CN 18-09	SUS 302	X 10 CrNi 1809	23 31	302S25	X 10 CrNi 18 9	X 10 CrNi 18-09	12KH18N9
303	X 10 CrNiS 18 9	1.4305	Z 10 CNF 18-09	SUS 303	X 10 CrNiS 1809	23 46	303S21	X 10 CrNiS 18 9	X 10 CrNiS 18-09	-
303 Se	-	-	Z 10 CNF 18-09	SUS 303 Se	X 10 CrNiS 1809	-	303S41	-	X 10 CrNiS 18-09	12KH18N10E
304	X 5 CrNi 18 10 X 5 CrNi 18 12	1.4301 1.4303	Z 6 CN 18-09	SUS 304	X 5 CrNi 1810	23 32	304S15 304S16	X 6 CrNi 18 10	X 6 CrNi 19-10	08KH18N10 06KH18N11
304 N	-	-	-	SUS 304N1	X 5 CrNiN 1810	-	-	-	-	-
304 H	-	-	-	SUS F 304H	X 8 CrNi 1910	-	-	-	X 6 CrNi 19-10	-
304 L	X 2 CrNi 18 11	1.4306	Z 2 CN 18-10	SUS 304L	X 2 CrNi 1911	23 52	304S11	X 3 CrNi 18 10	X 2 CrNi 19-10	03KH18N11
-	X 2 CrNiN 18 10	1.4311	Z 2 CN 18-10-Az	SUS 304LN	X 2 CrNiN 1811	23 71	-	-	-	-
305	-	-	Z 8 CN 18-12	SUS 305	X 8 CrNi 1812	23 33	305S19	X 8 CrNi 18 12	X 8 CrNi 18-12	-
-	-	-	Z 6 CNU 18-10	SUS XM7	-	-	-	X 6 CrNiCu 18 10 4 Kd	-	-
309	X 15 CrNiS 20 12	1.4828	Z 15 CN 24-13	SUH 309	X 16 CrNi 2314	-	309S24	X 15 CrNi 23 13	-	-
309 S	-	-	-	SUS 309S	X 6 CrNi 2314	-	-	X 6 CrNi 22 13	-	-
310	X 12 CrNi 25 21	1.4845	-	SUH 310	X 22 CrNi 2520	-	310S24	-	-	20KH23N18
310 S	X 12 CrNi 25 20	1.4842	Z 12 CN 25-20	SUS 310S	X 5 CrNi 2520	23 61	-	X 6 CrNi 25 20	-	10KH23N18
314	X 15 CrNiSi 25 20	1.4841	Z 12 CNS 25-20	-	X 16 CrNiSi 2520	-	-	X 15 CrNiSi 25 20	-	20KH25N20S2
316	X 5 CrNiMo 17 12 2	1.4401	Z 6 CND 17-11	SUS 316	X 5 CrNiMo 1712	23 47	316S31	X 6 CrNiMo 17 12 2	X 6 CrNiMo 17-12-03	-
316	X 5 CrNiMo 17 13 3	1.4436	Z 6 CND 17-12	SUS 316	X 5 CrNiMo 1713	23 43	316S33	X 6 CrNiMo 17 13 3	X 6 CrNiMo 17-12-03	-
316 F	X 12 CrNiMoS 18 11	1.4427	-	-	-	-	-	-	-	-
316 N	-	-	-	SUS 316N	-	-	-	-	-	-
316 H	-	-	-	SUS F 316H	X 8 CrNiMo 1712	-	-	-	X 5 CrNiMo 17-12	-
316 H	-	-	-	-	X 8 CrNiMo 1713	-	-	-	X 6 CrNiMo 17-12-03	-
316 L	X 2 CrNiMo 17 13 2	1.4404	Z 2 CND 17-12	SUS 316L	X 2 CrNiMo 1712	23 48	316S11	X 3 CrNiMo 17 12 2	X 2 CrNiMo 17-12-03	03KH17N14M2
-	X 2 CrNiMoN 17 12 2	1.4406	Z 2 CND 17-12-Az	SUS 316LN	X 2 CrNiMoN 1712	-	-	-	-	-
316 L	X 2 CrNiMo 18 14 3	1.4435	Z 2 CND 17-13	-	X 2 CrNiMo 1713	23 53	316S13	X 3 CrNiMo 17 13 3	X 2 CrNiMo 17-12-03	03KH16N15M3
-	X 2 CrNiMoN 17 13 3	1.4429	Z 2 CND 17-13-Az	-	X 2 CrNiMoN 1713	23 75	-	-	-	-
-	X 6 CrNiMoTi 17 12 2	1.4571	Z6 CNDT 17-12	-	X 6 CrNiMoTi 1712	23 50	320S31	X 6 CrNiMoTi 17 12 2	X 6 CrNiMoTi 17-12-03	08KH17N13M2T 10KH17N13M2T
-	X 10 CrNiMoTi 18 12	1.4573	-	-	X 6 CrNiMoTi 1713	-	320S33	X 6 CrNiMoTI 17 13 3	X 6 CrNiMoTi 17-12-03	08KH17N13M2T 10KH17N13M2T
-	X 6 CrNiMoNb 17 12 2	1.4580	Z 6 CNDNb 17-12	-	X 6 CrNiMoNb 1712	-	-	X 6 CrNiMoNb 17 12 2	-	08KH16N13M2B
-	X 10 CrNiMoNb 18 12	1.4583	-	-	X 6 CrNiMoNb 1713	-	-	X 6 CrNiMoNb 17 13 3	-	09KH16N15M3B
317	-	-	-	SUS 317	X 5 CrNiMo 1815	23 66	317S16	-	-	-
317 L	X 2 CrNiMo 18 16 4	1.4438	Z 2 CND 19-15	SUS 317L	X 2 CrNiMo 1815	23 67	317S12	X 3 CrNiMo 18 16 4	-	-
330	X 12 NiCrSi 36 16	1.4864	Z 12NCS 35-16	SUH 330	-	-	-	-	-	-
321	X 6 CrNiTi 18 10 X 12 CrNiTi 18 9	1.4541 1.4878	Z 6 CNT 18-10	SUS 321	X 6 CrNiTi 1811	23 37	321S31	X 6 CrNiTi 18 10	X 6 CrNiTi 18-11	08KH18N10T
321 H	-	-	-	SUS 321H	X 8 CrNiTi 1811	-	321S20	-	X 7 CrNiTi 18-11	12KH18N10T
329	X 8 CrNiMo 27 5	1.4460	-	SUS 329J1	-	23 24	-	-	-	-
347	X 6 CrNiNb 18 10	1.4550	Z 6 CNNb 18-10	SUS 347	X 6 CrNiNb 1811	23 38	347S31	X 6 CrNiNb 18 10	X 6 CrNiNb 18-11	08KH18N12B
347 H	-	-	-	SUS F 347H	X 8 CrNiNb 1811	-	-	-	X 7 CrNiNb 18-11	-
904L	-	1.4939	Z 12 CNDV 12-02	-	-	-	-	-	-	-
UNS31803	X 2 CrNiMoN 22 5	1.4462	-	-	-	-	-	-	-	-
UNS32760	X 3 CrNiMoN 25 7	1.4501	Z 3 CND 25-06Az	-	-	-	-	-	-	-
403	X 6 Cr 13 X 10 Cr 13 X 15 Cr 13	1.4000 1.4006 1.4024	Z 12 C 13	SUS 403	X 12 Cr 13	23 02	403S17	X 10 Cr 13 X 12 Cr 13	X 6 Cr 13	12Kh13
405	X 6 CrAl 13	1.4002	Z 6 CA 13	SUS 405	X 6 CrAl 13	-	405S17	X 6 CrAl 13	X 6 CrAl 13	-
-	X 10 CrAl 7	1.4713	Z 8 CA 7	-	-	-	-	X 10 CrAl 7	-	-
-	X 10 CrAl 13	1.4724	-	-	X 10 CrAl 12	-	-	-	-	10Kh13SYu
-	X 10 CrAl 18	1.4742	-	-	-	-	-	X 10 CrSiAl 18	-	15Kh18SYu
409	X 6 CrTi 12	1.4512	Z 6 CT 12	SUH 409	X 6 CrTi 12 X 2 CrTi 12	-	409S19	X 5 CrTi 12	-	-
410	X 6 Cr 13 X 10 Cr 13 X 15 Cr 13	1.4000 1.4006 1.4024	Z 10 C 13 Z 12 C 13	SUS 410	X 12 Cr 13	23 02	410S21	X 12 Cr 13	X 12 Cr 13	12Kh13
410 S	X 6 Cr 13	1.4000	Z 6 C 13	SUS 410S	X 6 Cr 13	23 01	403S17	X 6 Cr 13	-	08Kh13

Factory Overview

Quality Advantage

The quality of our products for the control line in the oil and gas sector is assured not just during the controlled manufacturing process but also by way of finished product testing. Typical tests include:

Non-destructive tests
Hydrostatic tests
Surface finish controls
Dimensional accuracy measurements
Flare and coning tests
Mechanical and chemical property testing

Application Capillary Tube

Medical device industry

Temperature-guided industrial temperature control, sensors, tube thermometer

Pens care industry core tube

Micro-tube antenna, small precision stainless steel antenna

Electronic small-diameter stainless steel capillary

Jewelry needle punch

Watches and instrumentation applications

Car antenna tube, bar antennas using tubes

Laser engraving equipment components

Fishing gear and related accessories

Dietary and food grade capillary applications

Mobile phone and computer stylus components

Heating pipe and oil industry applications

Printers and silent box needle applications

Double-melt stainless steel tube used in window-coupled components

Various industrial small diameter precision stainless steel tubes

Precision dispensing with stainless steel needles

Microphone, headphones, and related audio equipment tubes

Frequently Asked Questions (FAQ)

What standards apply to Alloy 625 stainless steel precision pipes?

Alloy 625 precision pipes are manufactured in compliance with major international standards including ASTM A-312, ASTM A-269, ASTM A-632, ASTM A-213, DIN 17458, DIN 17456, JIS G3463, JIS G3459, and JIS G3448.

What are the typical dimensions for your square and round steel tubes?

Square steel tubes are available from 10×10mm to 400×400mm with wall thicknesses of 0.6mm to 16.0mm. Round steel tubes range from 6mm to 114mm in outer diameter, with wall thicknesses of 0.6mm to 6.0mm.

What properties does Alloy 625 exhibit in terms of mechanical strength?

Alloy 625 precision pipes have a minimum tensile strength of 827 MPa (120,000 psi) and a minimum yield strength of 414 MPa, with a total elongation of 20% and a maximum hardness of 35 HRC.

What surface finishes are available for precision tubing?

We supply precision tubing with various surface treatments including Satin/Hairline finishes (180# and 320#), and polished finishes (400#, 600#, 800#, or high-grade mirror surfaces).

What quality testing processes are conducted on the control lines?

To ensure high reliability in critical environments like oil and gas, products undergo non-destructive testing, hydrostatic testing, dimensional accuracy measurements, surface finish controls, flare and coning tests, and full mechanical/chemical property evaluation.

What are the primary applications for stainless steel capillary tubes?

Capillary tubes are widely used in medical devices, industrial temperature sensors, instrumentation, automotive antennas, laser engraving machinery, electronics, and precision dispensing equipment.
