Stainless steels are high-alloy steels. These steels are available in four groups that include martensitic, austenitic, ferritic and precipitation-hardened steels. These groups are formed based on the crystalline structure of stainless steels.
Stainless steels contain larger amounts of chromium in comparison with other steels and thus have good corrosion resistance. Most of the stainless steels contain about 10% of chromium.
Grade 2205 stainless steel is a duplex stainless steel whose design enables combining improved resistance to pitting, high strength, stress corrosion, crevice corrosion and cracking. Grade 2205 stainless steel resists sulfide stress corrosion and chloride environments.
The following datasheet provides an overview of grade 2205 stainless steel.
The chemical composition of grade 2205 stainless steel is outlined in the following table.
| Element | Content (%) |
|---|---|
| Iron, Fe | 63.75-71.92 |
| Chromium, Cr | 21.0-23.0 |
| Nickel, Ni | 4.50-6.50 |
| Molybdenum, Mo | 2.50-3.50 |
| Manganese, Mn | 2.0 |
| Silicon, Si | 1.0 |
| Nitrogen, N | 0.080-0.20 |
| Carbon, C | 0.030 |
| Phosphorous, P | 0.030 |
| Sulfur, S | 0.020 |
The following table shows the physical properties of grade 2205 stainless steel.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.82 g/cm³ | 0.283 lb/in³ |
The mechanical properties of grade 2205 stainless steel are displayed in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength at break | 621 MPa | 90000 psi |
| Yield strength (@strain 0.200 %) | 448 MPa | 65000 psi |
| Elongation at break (in 50 mm) | 25.0 % | 25.0 % |
| Hardness, Brinell | 293 | 293 |
| Hardness, Rockwell c | 31.0 | 31.0 |
The thermal properties of grade 2205 stainless steel are given in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Thermal expansion co-efficient (@20-100°C/68-212°F) | 13.7 µm/m°C | 7.60 µin/in°F |
Equivalent materials to grade 2205 stainless steel are:
| Size of Stainless steel Coil Tube | ||||
|---|---|---|---|---|
| ITEM | Grade | Size (MM) | Pressure (Mpa) | Length (M) |
| 1 | 316L, 304L, 304 alloy 625 825 2205 2507 | 1/8″×0.025″ | 3200 | 500-2000 |
| 2 | 316L, 304L, 304 alloy 625 825 2205 2507 | 1/8″×0.035″ | 3200 | 500-2000 |
| 3 | 316L, 304L, 304 alloy 625 825 2205 2507 | 1/4″×0.035″ | 2000 | 500-2000 |
| 4 | 316L, 304L, 304 alloy 625 825 2205 2507 | 1/4″×0.049″ | 2000 | 500-2000 |
| 5 | 316L, 304L, 304 alloy 625 825 2205 2507 | 3/8″×0.035″ | 1500 | 500-2000 |
| 6 | 316L, 304L, 304 alloy 625 825 2205 2507 | 3/8″×0.049″ | 1500 | 500-2000 |
| 7 | 316L, 304L, 304 alloy 625 825 2205 2507 | 1/2″×0.049″ | 1000 | 500-2000 |
| 8 | 316L, 304L, 304 alloy 625 825 2205 2507 | 1/2″×0.065″ | 1000 | 500-2000 |
| 9 | 316L, 304L, 304 alloy 625 825 2205 2507 | φ3mm×0.7mm | 3200 | 500-2000 |
| 10 | 316L, 304L, 304 alloy 625 825 2205 2507 | φ3mm×0.9mm | 3200 | 500-2000 |
| 11 | 316L, 304L, 304 alloy 625 825 2205 2507 | φ4mm×0.9mm | 3000 | 500-2000 |
| 12 | 316L, 304L, 304 alloy 625 825 2205 2507 | φ4mm×1.1mm | 3000 | 500-2000 |
| 13 | 316L, 304L, 304 alloy 625 825 2205 2507 | φ6mm×0.9mm | 2000 | 500-2000 |
| 14 | 316L, 304L, 304 alloy 625 825 2205 2507 | φ6mm×1.1mm | 2000 | 500-2000 |
| 15 | 316L, 304L, 304 alloy 625 825 2205 2507 | φ8mm×1mm | 1800 | 500-2000 |
| 16 | 316L, 304L, 304 alloy 625 825 2205 2507 | φ8mm×1.2mm | 1800 | 500-2000 |
| 17 | 316L, 304L, 304 alloy 625 825 2205 2507 | φ10mm×1mm | 1500 | 500-2000 |
| 18 | 316L, 304L, 304 alloy 625 825 2205 2507 | φ10mm×1.2mm | 1500 | 500-2000 |
| 19 | 316L, 304L, 304 alloy 625 825 2205 2507 | φ10mm×2mm | 500 | 500-2000 |
| 20 | 316L, 304L, 304 alloy 625 825 2205 2507 | φ12mm×1.5mm | 500 | 500-2000 |
| Item | W.T (mm) / O.D (mm) | 3.0-4.0 | 4.01-6.00 | 6.01-8.00 | 8.01-10.0 | 10.01-12.7 | 12.71-19.05 | 19.05-25.4 |
|---|---|---|---|---|---|---|---|---|
| Stainless Steel Coiled Tubes/ Coil Tubing | 0.30-0.40 | √ | √ | √ | ||||
| Stainless Steel Coiled Tubes/ Coil Tubing | 0.41-0.50 | √ | √ | √ | √ | |||
| Stainless Steel Coiled Tubes/ Coil Tubing | 0.51-0.60 | √ | √ | √ | √ | √ | ||
| Stainless Steel Coiled Tubes/ Coil Tubing | 0.61-0.70 | √ | √ | √ | √ | √ | √ | |
| Stainless Steel Coiled Tubes/ Coil Tubing | 0.71-1.00 | √ | √ | √ | √ | √ | √ | √ |
| Stainless Steel Coiled Tubes/ Coil Tubing | 1.01-1.20 | √ | √ | √ | √ | √ | √ | |
| Stainless Steel Coiled Tubes/ Coil Tubing | 1.21-1.50 | √ | √ | √ | √ | |||
| Stainless Steel Coiled Tubes/ Coil Tubing | 1.51-2.0 | √ | √ | √ |
| U.S.A. | GERMANY | GERMANY | FRANCE | JAPAN | ITALY | SWEDEN | U.K. | E.U. | SPAIN | RUSSIA |
|---|---|---|---|---|---|---|---|---|---|---|
| AISI | DIN 17006 | W.N. 17007 | AFNOR | JIS | UNI | SIS | BSI | EURONORM | ||
| 201 | SUS 201 | |||||||||
| 301 | X 12 CrNi 17 7 | 1.4310 | Z 12 CN 17-07 | SUS 301 | X 12 CrNi 1707 | 23 31 | 301S21 | X 12 CrNi 17 7 | X 12 CrNi 17-07 | |
| 302 | X 5 CrNi 18 7 | 1.4319 | Z 10 CN 18-09 | SUS 302 | X 10 CrNi 1809 | 23 31 | 302S25 | X 10 CrNi 18 9 | X 10 CrNi 18-09 | 12KH18N9 |
| 303 | X 10 CrNiS 18 9 | 1.4305 | Z 10 CNF 18-09 | SUS 303 | X 10 CrNiS 1809 | 23 46 | 303S21 | X 10 CrNiS 18 9 | X 10 CrNiS 18-09 | |
| 303 Se | Z 10 CNF 18-09 | SUS 303 Se | X 10 CrNiS 1809 | 303S41 | X 10 CrNiS 18-09 | 12KH18N10E | ||||
| 304 | X 5 CrNi 18 10 / X 5 CrNi 18 12 | 1.4301 / 1.4303 | Z 6 CN 18-09 | SUS 304 | X 5 CrNi 1810 | 23 32 | 304S15 / 304S16 | X 6 CrNi 18 10 | X 6 CrNi 19-10 | 08KH18N10 / 06KH18N11 |
| 304 N | SUS 304N1 | X 5 CrNiN 1810 | ||||||||
| 304 H | SUS F 304H | X 8 CrNi 1910 | X 6 CrNi 19-10 | |||||||
| 304 L | X 2 CrNi 18 11 | 1.4306 | Z 2 CN 18-10 | SUS 304L | X 2 CrNi 1911 | 23 52 | 304S11 | X 3 CrNi 18 10 | X 2 CrNi 19-10 | 03KH18N11 |
| X 2 CrNiN 18 10 | 1.4311 | Z 2 CN 18-10-Az | SUS 304LN | X 2 CrNiN 1811 | 23 71 | |||||
| 305 | Z 8 CN 18-12 | SUS 305 | X 8 CrNi 1812 | 23 33 | 305S19 | X 8 CrNi 18 12 | X 8 CrNi 18-12 | |||
| Z 6 CNU 18-10 | SUS XM7 | X 6 CrNiCu 18 10 4 Kd | ||||||||
| 309 | X 15 CrNiS 20 12 | 1.4828 | Z 15 CN 24-13 | SUH 309 | X 16 CrNi 2314 | 309S24 | X 15 CrNi 23 13 | |||
| 309 S | SUS 309S | X 6 CrNi 2314 | X 6 CrNi 22 13 | |||||||
| 310 | X 12 CrNi 25 21 | 1.4845 | SUH 310 | X 22 CrNi 2520 | 310S24 | 20KH23N18 | ||||
| 310 S | X 12 CrNi 25 20 | 1.4842 | Z 12 CN 25-20 | SUS 310S | X 5 CrNi 2520 | 23 61 | X 6 CrNi 25 20 | 10KH23N18 | ||
| 314 | X 15 CrNiSi 25 20 | 1.4841 | Z 12 CNS 25-20 | X 16 CrNiSi 2520 | X 15 CrNiSi 25 20 | 20KH25N20S2 | ||||
| 316 | X 5 CrNiMo 17 12 2 | 1.4401 | Z 6 CND 17-11 | SUS 316 | X 5 CrNiMo 1712 | 23 47 | 316S31 | X 6 CrNiMo 17 12 2 | X 6 CrNiMo 17-12-03 | |
| 316 | X 5 CrNiMo 17 13 3 | 1.4436 | Z 6 CND 17-12 | SUS 316 | X 5 CrNiMo 1713 | 23 43 | 316S33 | X 6 CrNiMo 17 13 3 | X 6 CrNiMo 17-12-03 | |
| 316 F | X 12 CrNiMoS 18 11 | 1.4427 | ||||||||
| 316 N | SUS 316N | |||||||||
| 316 H | SUS F 316H | X 8 CrNiMo 1712 | X 5 CrNiMo 17-12 | |||||||
| 316 H | X 8 CrNiMo 1713 | X 6 CrNiMo 17-12-03 | ||||||||
| 316 L | X 2 CrNiMo 17 13 2 | 1.4404 | Z 2 CND 17-12 | SUS 316L | X 2 CrNiMo 1712 | 23 48 | 316S11 | X 3 CrNiMo 17 12 2 | X 2 CrNiMo 17-12-03 | 03KH17N14M2 |
| X 2 CrNiMoN 17 12 2 | 1.4406 | Z 2 CND 17-12-Az | SUS 316LN | X 2 CrNiMoN 1712 | ||||||
| 316 L | X 2 CrNiMo 18 14 3 | 1.4435 | Z 2 CND 17-13 | X 2 CrNiMo 1713 | 23 53 | 316S13 | X 3 CrNiMo 17 13 3 | X 2 CrNiMo 17-12-03 | 03KH16N15M3 | |
| X 2 CrNiMoN 17 13 3 | 1.4429 | Z 2 CND 17-13-Az | X 2 CrNiMoN 1713 | 23 75 | ||||||
| X 6 CrNiMoTi 17 12 2 | 1.4571 | Z6 CNDT 17-12 | X 6 CrNiMoTi 1712 | 23 50 | 320S31 | X 6 CrNiMoTi 17 12 2 | X 6 CrNiMoTi 17-12-03 | 08KH17N13M2T / 10KH17N13M2T | ||
| X 10 CrNiMoTi 18 12 | 1.4573 | X 6 CrNiMoTi 1713 | 320S33 | X 6 CrNiMoTI 17 13 3 | X 6 CrNiMoTi 17-12-03 | 08KH17N13M2T / 10KH17N13M2T | ||||
| X 6 CrNiMoNb 17 12 2 | 1.4580 | Z 6 CNDNb 17-12 | X 6 CrNiMoNb 1712 | X 6 CrNiMoNb 17 12 2 | 08KH16N13M2B | |||||
| X 10 CrNiMoNb 18 12 | 1.4583 | X 6 CrNiMoNb 1713 | X 6 CrNiMoNb 17 13 3 | 09KH16N15M3B | ||||||
| 317 | SUS 317 | X 5 CrNiMo 1815 | 23 66 | 317S16 | ||||||
| 317 L | X 2 CrNiMo 18 16 4 | 1.4438 | Z 2 CND 19-15 | SUS 317L | X 2 CrNiMo 1815 | 23 67 | 317S12 | X 3 CrNiMo 18 16 4 | ||
| 330 | X 12 NiCrSi 36 16 | 1.4864 | Z 12NCS 35-16 | SUH 330 | ||||||
| 321 | X 6 CrNiTi 18 10 / X 12 CrNiTi 18 9 | 1.4541 / 1.4878 | Z 6 CNT 18-10 | SUS 321 | X 6 CrNiTi 1811 | 23 37 | 321S31 | X 6 CrNiTi 18 10 | X 6 CrNiTi 18-11 | 08KH18N10T |
| 321 H | SUS 321H | X 8 CrNiTi 1811 | 321S20 | X 7 CrNiTi 18-11 | 12KH18N10T | |||||
| 329 | X 8 CrNiMo 27 5 | 1.4460 | SUS 329J1 | 23 24 | ||||||
| 347 | X 6 CrNiNb 18 10 | 1.4550 | Z 6 CNNb 18-10 | SUS 347 | X 6 CrNiNb 1811 | 23 38 | 347S31 | X 6 CrNiNb 18 10 | X 6 CrNiNb 18-11 | 08KH18N12B |
| 347 H | SUS F 347H | X 8 CrNiNb 1811 | X 7 CrNiNb 18-11 | |||||||
| 904L | 1.4939 | Z 12 CNDV 12-02 | ||||||||
| X 20 CrNiSi 25 4 | 1.4821 | |||||||||
| UNS31803 | X 2 CrNiMoN 22 5 | 1.4462 | ||||||||
| UNS32760 | X 3 CrNiMoN 25 7 | 1.4501 | Z 3 CND 25-06Az | |||||||
| 403 | X 6 Cr 13 / X 10 Cr 13 / X 15 Cr 13 | 1.4000 / 1.4006 / 1.4024 | Z 12 C 13 | SUS 403 | X 12 Cr 13 | 23 02 | 403S17 | X 10 Cr 13 / X 12 Cr 13 | X 6 Cr 13 | 12Kh13 |
| 405 | X 6 CrAl 13 | 1.4002 | Z 6 CA 13 | SUS 405 | X 6 CrAl 13 | 405S17 | X 6 CrAl 13 | X 6 CrAl 13 | ||
| X 10 CrAl 7 | 1.4713 | Z 8 CA 7 | X 10 CrAl 7 | |||||||
| X 10 CrAl 13 | 1.4724 | X 10 CrAl 12 | 10Kh13SYu | |||||||
| X 10 CrAl 18 | 1.4742 | X 10 CrSiAl 18 | 15Kh18SYu | |||||||
| 409 | X 6 CrTi 12 | 1.4512 | Z 6 CT 12 | SUH 409 | X 6 CrTi 12 | 409S19 | X 5 CrTi 12 | |||
| X 2 CrTi 12 | ||||||||||
| 410 | X 6 Cr 13 / X 10 Cr 13 / X 15 Cr 13 | 1.4000 / 1.4006 / 1.4024 | Z 10 C 13 / Z 12 C 13 | SUS 410 | X 12 Cr 13 | 23 02 | 410S21 | X 12 Cr 13 | X 12 Cr 13 | 12Kh13 |
| 410 S | X 6 Cr 13 | 1.4000 | Z 6 C 13 | SUS 410S | X 6 Cr 13 | 23 01 | 403S17 | X 6 Cr 13 | 08Kh13 |

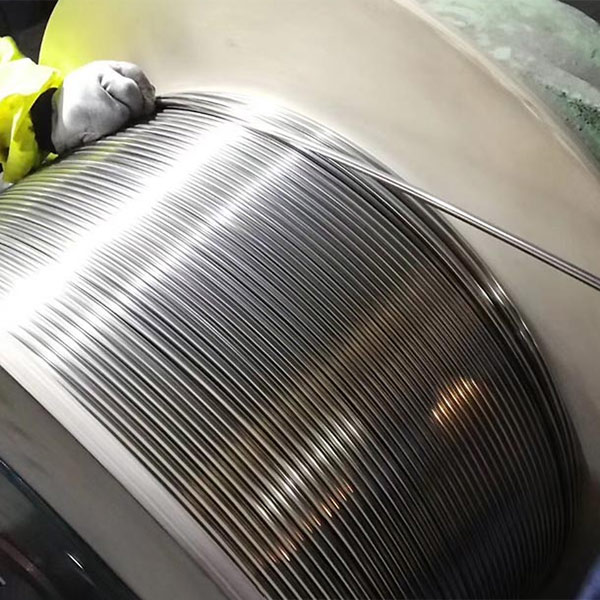

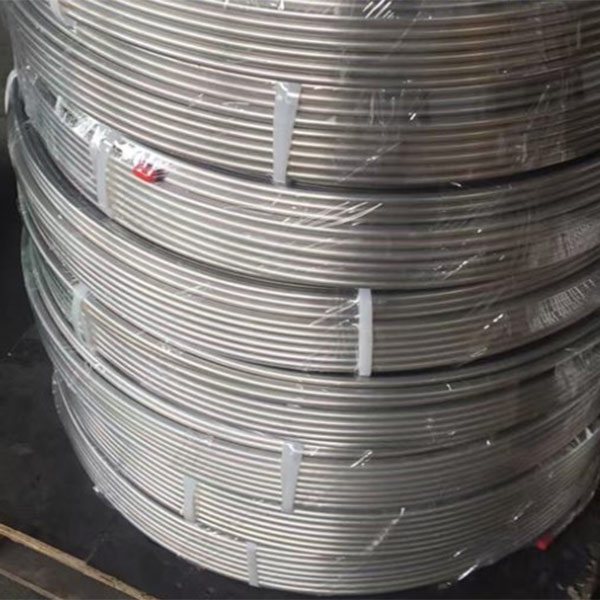

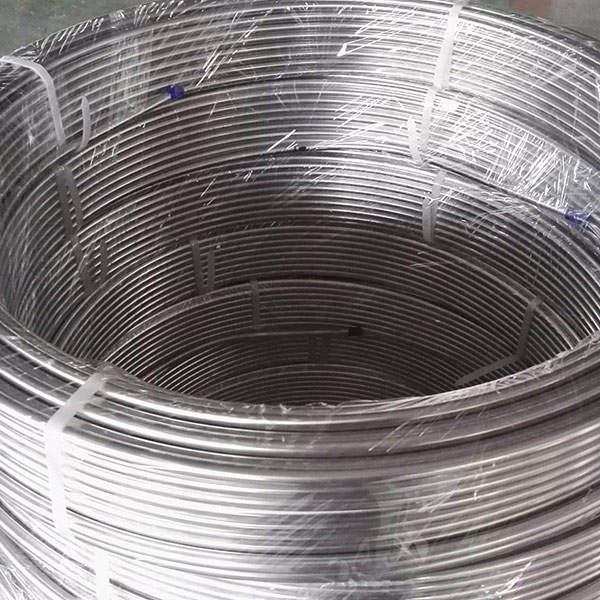

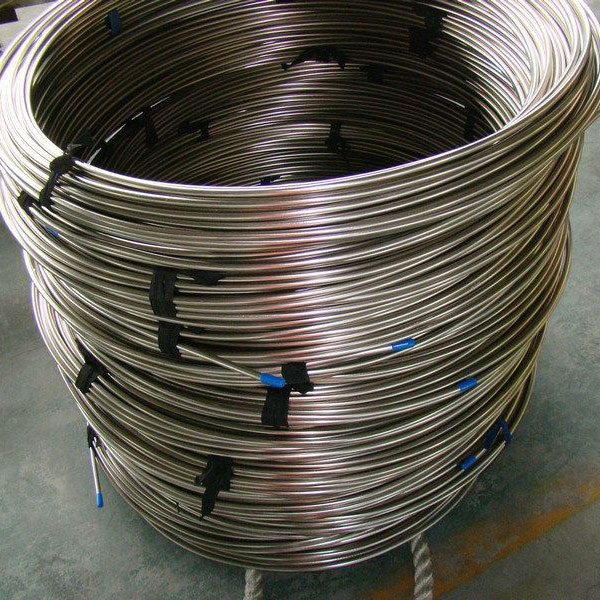

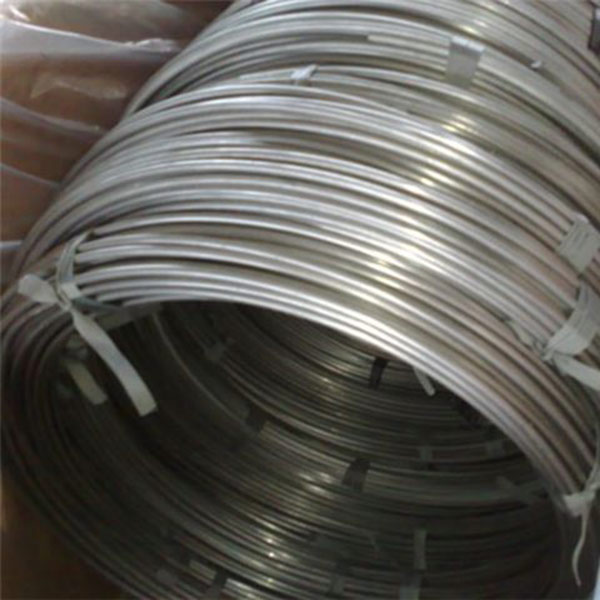

Our company has three production line of stainless steel coiled tube, stainless steel pipe, we have exporting experience for more than ten years, the bending, stretching, saw cutting, stamping, polishing and so on a series of processing equipment, our stainless steel product widely used in bathroom pendant, hanger accessories, hardware, and condensation water heating equipment, hotel supplies and so on. our company sincerely hope that domestic and foreign customers to provide drawings or samples.
We have experience to export stainless steel tube products for more than ten years.
Description: The production of stainless steel coil has ten years of history, has two production lines can produce continuous welded pipe, equipment is perfect, the technology leader. But the company introduced the world first-class bright annealing technology, can online stainless steel pipe softening treatment. In addition, we also have compressed, flaring, bending test, hardness 100%, stretch, air tightness test and so on, the price is reasonable, quality is reliable, the current US 80% coil export to all over the world.
We have experience to export stainless steel tube products for more than ten years.
