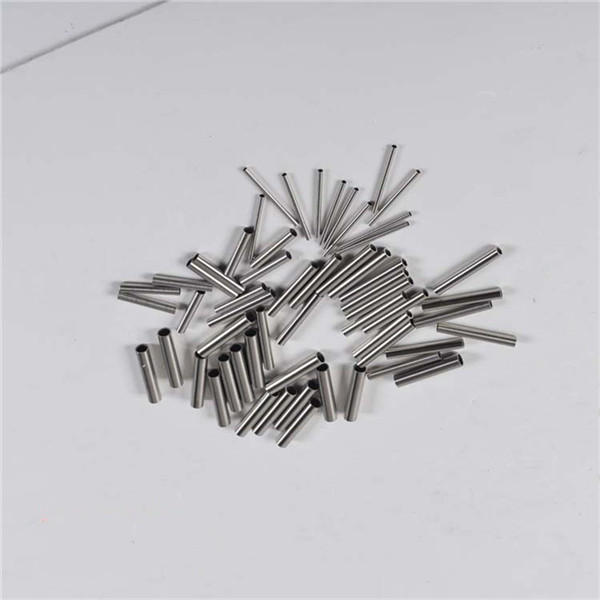

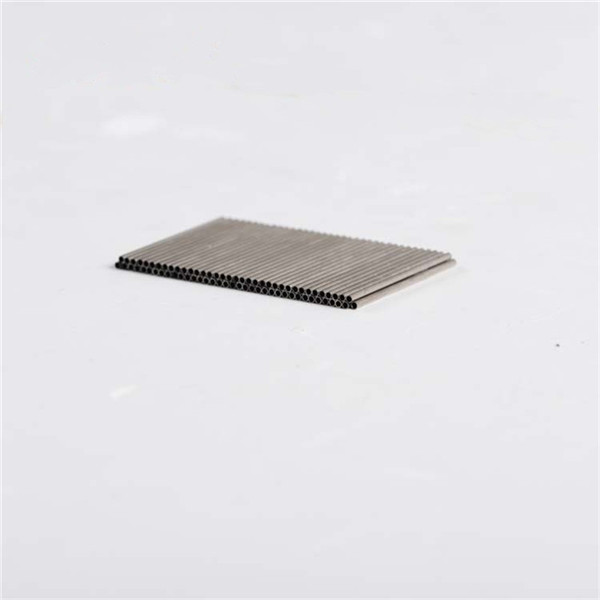

Stainless steel capillary and stainless steel small tubes are widely used in medical treatment, fiber-optics, pen making, electronic welding products, light cable joints, food, vintage, dairy, drinks, pharmacy, and biochemistry. Different lengths can be provided according to requests.
Capillary tubes with a maximum bore of 0.0158 in. are available in a wide range of stainless steels. The capillary tubes are characterized by tight tolerances, and the inside surface of the tubes is free from oil, grease, and other particles. This ensures, for example, an optimized and even flow of liquids and gases from the sensor to the measuring instrument.
Stainless steel coiled tubing is available in a range of different product forms depending on customer requirements. Welded and seamless tube products are manufactured. The standard grades are 304, 304L, 316L (UNS S31603), Duplex 2205 (UNS S32205 & S31803), Super Duplex 2507 (UNS S32750), Incoloy 825 (UNS N08825), Inconel 625 (UNS N06625). Other grades of stainless steel in duplex, superduplex, and nickel alloy are available on request.
Diameter ranges from 3mm (0.118’’) to 25.4mm (1.00’’) OD. Wall thickness ranges from 0.5mm (0.020’’) to 3mm (0.118’’). Tubing can be supplied in the annealed or cold worked stainless steel control line pipe condition.
| Thickness | 0.1-2.0mm |
| Diameter | 0.3-20mm (tolerance: ±0.01mm) |
| Stainless Grade | 201, 202, 304, 304L, 316L, 317L, 321, 310s, 254mso, 904L, 2205, 625 etc. |
| Surface Finish | Inside and outside are both bright annealing, cleaning, and seamless, no leaks. |
| Standard | ASTM A269-2002, JIS G4305 / GB/T 12770-2002, GB/T12771-2002 |
| Length | 200-1500m per coil, or as customer required |

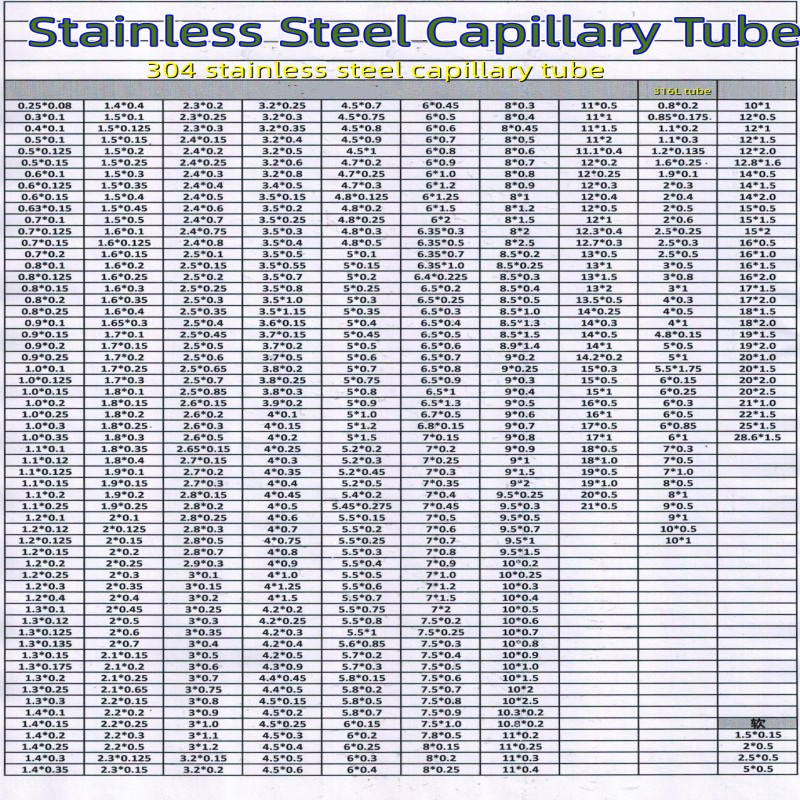

| Stock size | 6*1mm, 8*0.5mm, 8*0.6mm, 8*0.8mm, 8*0.9mm, 8*1mm, 9.5*1mm, 10*1mm, etc. |
| Certificate | ISO & BV |
| Packing way | Woven bags, plastic bags etc. |
| Application range | Widely used in food industry, beverage equipment, beer machine, heat exchanger, milk/water supply system, medical equipment, solar energy, aviation, aerospace, communications, oil, and other industries. |
| Note | OEM / ODM / Buyer Label accepted. |
The quality of the products for the control line in the oil and gas sector is assured not just during the controlled manufacturing process but also by way of finished product testing. Typical tests include:
