China alloy2205 Stainless steel coil tube Manufacturers, Factories

Short Description:

Descreption: stainless steel coil tube Grade: 201 304 304L 316 316L 2205 2507 625 825 ectSize: 6-25.4mm Thickness:0.2-2mm Length: 600-3500M/coil Standard: ASTM A269 A249 SUS DIN JIS GB Surface : 2B 8k Bright anneald Test : Yield strength, Tensile strength, Hardness ,Hydrapress Measurement Guarantee&Inspection : The Third Party &Cetification Advantage: We are a manufacturer . Lowest Price and Good Quantity

Send Inquiry

Product Description

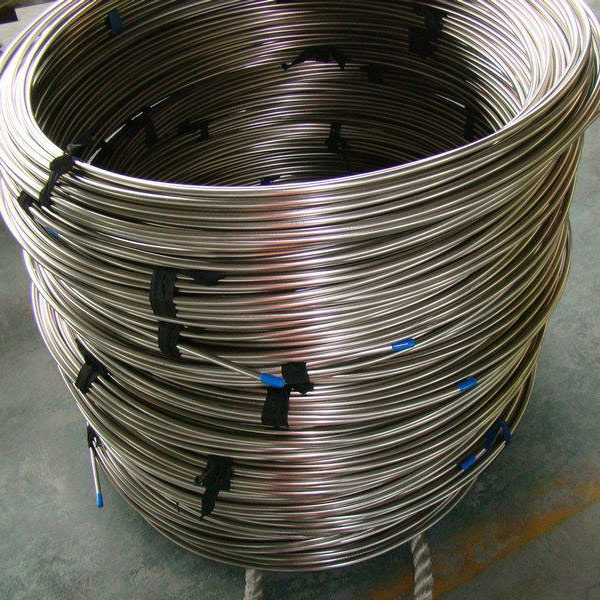

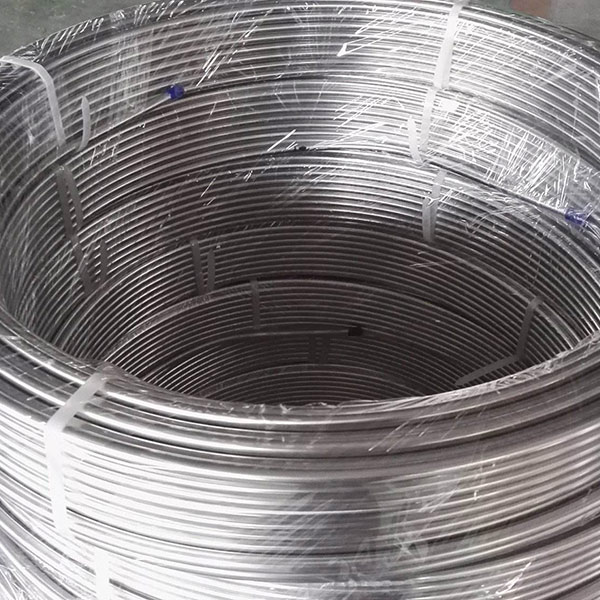

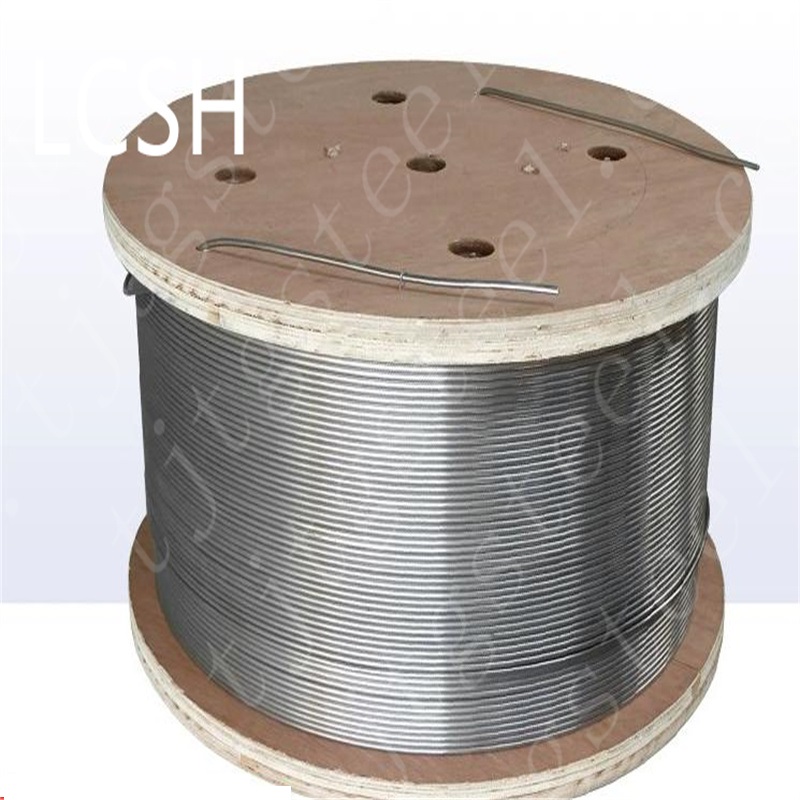

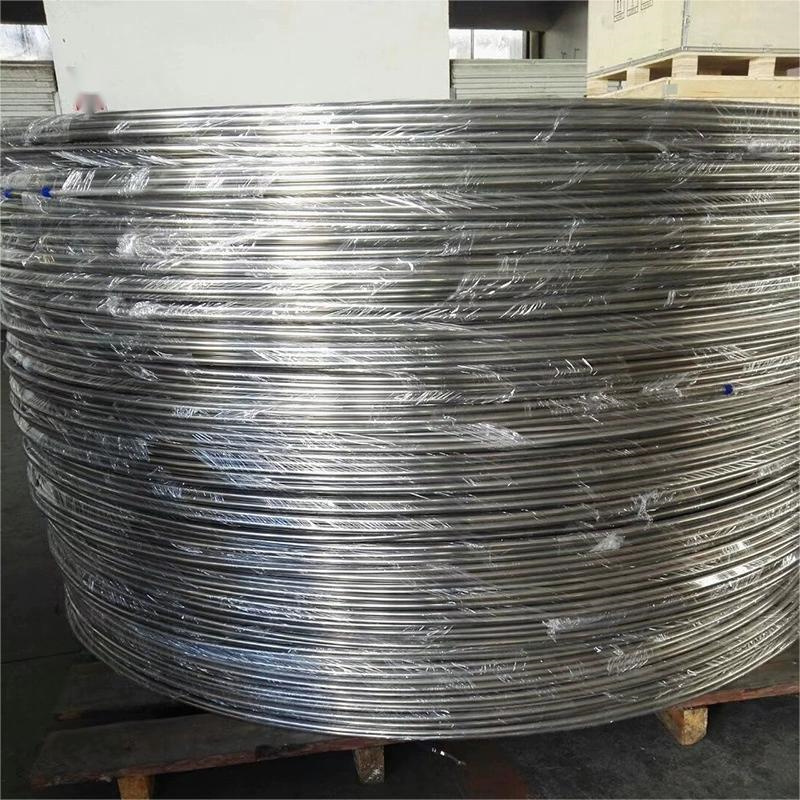

ASTM A269 Alloy 2205 Stainless Steel Coil Tubing Suppliers

Introduction

Stainless steels are high-alloy steels. These steels are available in four groups that include martensitic, austenitic, ferritic and precipitation-hardened steels. These groups are formed based on the crystalline structure of stainless steels.

Stainless steels contain larger amounts of chromium in comparison with other steels and thus have good corrosion resistance. Most of the stainless steels contain about 10% of chromium.

Grade 2205 stainless steel is a duplex stainless steel whose design enables combining improved resistance to pitting, high strength, stress corrosion, crevice corrosion and cracking. Grade 2205 stainless steel resists sulfide stress corrosion and chloride environments.

★Alloy 2205 Stainless Steel Coiled Tubing / Coiled Tubes Specification:

Production standards: ASTM A269/A249 standard
Commonly used stainless steel material TP304, TP316, 201, 202, 310S, 321, 2205, 825, 625
Trade Name: SS304 Coiled Tubes, SS316 Coiled Tubes, Duplex Coiled Tubes, Monel 400 Coiled Tubes, Hastelloy Coiled Tubes, Inconel Coiled Tubes, 904L Coiled Tubes, Seamless Coiled Tubes, Welded Coiled Tubing
Size range: diameter 3MM-25.4MM
Wall thicknesses: 0.3MM-2.0MM
General delivery pipe status: half hard / soft bright annealing
The tolerance range: diameter: + 0.1mm, wall thickness: + 10%, length: -0/+6mm
Annual output: 600 tons
Coil inner hole size: 500MM-1500MM (can be adjusted according to customer requirements)
Coil height: 200MM-400MM (can be adjusted according to customer requirements)
General delivery length: 200 m - 1000 m
Length: 300-2000M or more than 2000M
Main application and field of use: refrigeration equipment, evaporator, gas liquid delivery, condenser, beverage machine.

The following datasheet provides an overview of grade 2205 stainless steel.

Chemical Composition

The chemical composition of grade 2205 stainless steel is outlined in the following table.

Element	Content (%)
Iron, Fe	63.75-71.92
Chromium, Cr	21.0-23.0
Nickel, Ni	4.50-6.50
Molybdenum, Mo	2.50-3.50
Manganese, Mn	2.0
Silicon, Si	1.0
Nitrogen, N	0.080-0.20
Carbon, C	0.030
Phosphorous, P	0.030
Sulfur, S	0.020

Physical Properties

The following table shows the physical properties of grade 2205 stainless steel.

Properties	Metric	Imperial
Density	7.82 g/cm³	0.283 lb/in³

Mechanical Properties

The mechanical properties of grade 2205 stainless steel are displayed in the following table.

Properties	Metric	Imperial
Tensile strength at break	621 MPa	90000 psi
Yield strength (@strain 0.200 %)	448 MPa	65000 psi
Elongation at break (in 50 mm)	25.0 %	25.0 %
Hardness, Brinell	293	293
Hardness, Rockwell c	31.0	31.0

Thermal Properties

The thermal properties of grade 2205 stainless steel are given in the following table.

Properties	Metric	Imperial
Thermal expansion co-efficient (@20-100°C/68-212°F)	13.7 µm/m°C	7.60 µin/in°F

Other Designations

Equivalent materials to grade 2205 stainless steel are:

ASTM A182 Grade F51
ASTM A240
ASTM A789
ASTM A790
DIN 1.4462

★Commonly Size of stainless steel coiled tube: we can product them as your request.

ITEM	Grade	Size (MM)	Pressure (Mpa)	Length (M)
1	316L, 304L, 304 alloy 625 825 2205 2507	1/8″×0.025″	3200	500-2000
2	316L, 304L, 304 alloy 625 825 2205 2507	1/8″×0.035″	3200	500-2000
3	316L, 304L, 304 alloy 625 825 2205 2507	1/4″×0.035″	2000	500-2000
4	316L, 304L, 304 alloy 625 825 2205 2507	1/4″×0.049″	2000	500-2000
5	316L, 304L, 304 alloy 625 825 2205 2507	3/8″×0.035″	1500	500-2000
6	316L, 304L, 304 alloy 625 825 2205 2507	3/8″×0.049″	1500	500-2000
7	316L, 304L, 304 alloy 625 825 2205 2507	1/2″×0.049″	1000	500-2000
8	316L, 304L, 304 alloy 625 825 2205 2507	1/2″×0.065″	1000	500-2000
9	316L, 304L, 304 alloy 625 825 2205 2507	φ3mm×0.7mm	3200	500-2000
10	316L, 304L, 304 alloy 625 825 2205 2507	φ3mm×0.9mm	3200	500-2000
11	316L, 304L, 304 alloy 625 825 2205 2507	φ4mm×0.9mm	3000	500-2000
12	316L, 304L, 304 alloy 625 825 2205 2507	φ4mm×1.1mm	3000	500-2000
13	316L, 304L, 304 alloy 625 825 2205 2507	φ6mm×0.9mm	2000	500-2000
14	316L, 304L, 304 alloy 625 825 2205 2507	φ6mm×1.1mm	2000	500-2000
15	316L, 304L, 304 alloy 625 825 2205 2507	φ8mm×1mm	1800	500-2000
16	316L, 304L, 304 alloy 625 825 2205 2507	φ8mm×1.2mm	1800	500-2000
17	316L, 304L, 304 alloy 625 825 2205 2507	φ10mm×1mm	1500	500-2000
18	316L, 304L, 304 alloy 625 825 2205 2507	φ10mm×1.2mm	1500	500-2000
19	316L, 304L, 304 alloy 625 825 2205 2507	φ10mm×2mm	500	500-2000
20	316L, 304L, 304 alloy 625 825 2205 2507	φ12mm×1.5mm	500	500-2000

▼Stainless steel coiled tube coiled tubing stock range

Item / O.D (mm)	W.T (mm)	3.0-4.0	4.01-6.00	6.01-8.00	8.01-10.0	10.01-12.7	12.71-19.05	19.05-25.4
Stainless Steel Coiled Tubes/ Coil Tubing	0.30-0.40	√	√	√
	0.41-0.50	√	√	√	√
	0.51-0.60	√	√	√	√	√
	0.61-0.70	√	√	√	√	√	√
	0.71-1.00	√	√	√	√	√	√	√
	1.01-1.20		√	√	√	√	√	√
	1.21-1.50				√	√	√	√
Stainless Steel Coiled Tubes/ Coil Tubing	1.51-2.0					√	√	√

▼Are you looking for a reliable stainless steel coiled tubing /coil tubes dealer distributor in below countries:

China

Taiwan

United States

Canada

Bangladesh

Japan & South Korea

Mexico & South Africa

Iran

Saudi Arabia

Indonesia

Kuwait

Singapore

Brazil

Colombia

Netherlands

Germany

Tanzania

Malaysia

Israel

Nigeria

Spain

Iraq

Qatar

Turkey

Thailand

Oman

Australia

Venezuela

UAE

▼Stainless steel coiled tubing /coiled tubes material grade:

U.S.A.	GERMANY DIN 17006	GERMANY W.N. 17007	FRANCE AFNOR	JAPAN JIS	ITALY UNI	SWEDEN SIS	U.K. BSI	E.U. EURONORM
201	-	-	-	SUS 201	-	-	-	-
301	X 12 CrNi 17 7	1.4310	Z 12 CN 17-07	SUS 301	X 12 CrNi 1707	23 31	301S21	X 12 CrNi 17 7
302	X 5 CrNi 18 7	1.4319	Z 10 CN 18-09	SUS 302	X 10 CrNi 1809	23 31	302S25	X 10 CrNi 18 9
303	X 10 CrNiS 18 9	1.4305	Z 10 CNF 18-09	SUS 303	X 10 CrNiS 1809	23 46	303S21	X 10 CrNiS 18 9
303 Se	-	-	Z 10 CNF 18-09	SUS 303 Se	X 10 CrNiS 1809	-	303S41	-
304	X 5 CrNi 18 10 / X 5 CrNi 18 12	1.4301 / 1.4303	Z 6 CN 18-09	SUS 304	X 5 CrNi 1810	23 32	304S15 / 304S16	X 6 CrNi 18 10
304 N	-	-	-	SUS 304N1	X 5 CrNiN 1810	-	-	-
304 H	-	-	-	SUS F 304H	X 8 CrNi 1910	-	-	-
304 L	X 2 CrNi 18 11	1.4306	Z 2 CN 18-10	SUS 304L	X 2 CrNi 1911	23 52	304S11	X 3 CrNi 18 10
305	-	-	Z 8 CN 18-12	SUS 305	X 8 CrNi 1812	23 33	305S19	X 8 CrNi 18 12
309	X 15 CrNiS 20 12	1.4828	Z 15 CN 24-13	SUH 309	X 16 CrNi 2314	-	309S24	X 15 CrNi 23 13
309 S	-	-	-	SUS 309S	X 6 CrNi 2314	-	-	X 6 CrNi 22 13
310	X 12 CrNi 25 21	1.4845	-	SUH 310	X 22 CrNi 2520	-	310S24	-
310 S	X 12 CrNi 25 20	1.4842	Z 12 CN 25-20	SUS 310S	X 5 CrNi 2520	23 61	-	X 6 CrNi 25 20
314	X 15 CrNiSi 25 20	1.4841	Z 12 CNS 25-20	-	X 16 CrNiSi 2520	-	-	X 15 CrNiSi 25 20
316	X 5 CrNiMo 17 12 2	1.4401	Z 6 CND 17-11	SUS 316	X 5 CrNiMo 1712	23 47	316S31	X 6 CrNiMo 17 12 2
316 L	X 2 CrNiMo 17 13 2	1.4404	Z 2 CND 17-12	SUS 316L	X 2 CrNiMo 1712	23 48	316S11	X 3 CrNiMo 17 12 2
321	X 6 CrNiTi 18 10 / X 12 CrNiTi 18 9	1.4541 / 1.4878	Z 6 CNT 18-10	SUS 321	X 6 CrNiTi 1811	23 37	321S31	X 6 CrNiTi 18 10
904L	-	1.4939	Z 12 CNDV 12-02	-	-	-	-	-
UNS31803	X 2 CrNiMoN 22 5	1.4462	-	-	-	-	-	-
UNS32760	X 3 CrNiMoN 25 7	1.4501	Z 3 CND 25-06Az	-	-	-	-	-

▼Our advantages:

We are a stainless steel coiled tube/pipe manufacturer.
We can control the quality of pipe by ourselves.
The length of the pipes is more than 3500M/Coil.

▼Description:

Three production lines of stainless steel coiled tube and stainless steel pipe are operational, offering exporting experience for more than ten years. Bending, stretching, saw cutting, stamping, polishing, and other processing equipment series are available. The stainless steel products are widely used in bathroom pendants, hanger accessories, hardware, condensation water heating equipment, hotel supplies, and more. Drawings or samples are welcome.

Experience in exporting stainless steel tube products spans over ten years.

Description: The production of stainless steel coil has ten years of history. Two production lines produce continuous welded pipe with advanced technology. Utilizing bright annealing technology allows online stainless steel pipe softening treatment. Compression, flaring, bending, hardness (100%), stretch, and air tightness testing are performed, offering reasonable prices and reliable quality, with current coils exported all over the world.

▼Stainless steel coiled tubes / stainless steel coiled tubing other Grades

Stainless Steel 304 Coiled Tubes/ Coil Tubing
Stainless Steel 304L Coiled Tubes/ Coil Tubing
Stainless Steel 304H Coiled Tubes/ Coil Tubing
Stainless Steel 316 Coiled Tubes/ Coil Tubing
Stainless Steel 316L Coiled Tubes/ Coil Tubing
Stainless Steel 316H Coiled Tubes/ Coil Tubing
Stainless Steel 317L Coiled Tubes/ Coil Tubing
Stainless Steel 321 Coiled Tubes/ Coil Tubing
Stainless Steel 347 Coiled Tubes/ Coil Tubing
Stainless Steel 410 Coiled Tubes/ Coil Tubing
Stainless Steel 904L Coiled Tubes/ Coil Tubing
Stainless Steel 310S Coiled Tubes/ Coil Tubing
Stainless Steel 310 Coiled Tubes/ Coil Tubing
Stainless Steel 310H Coiled Tubes/ Coil Tubing
Stainless Steel 316Ti Coiled Tubes/ Coil Tubing
Stainless Steel 321H Coiled Tubes/ Coil Tubing
Stainless Steel 347 Coiled Tubes/ Coil Tubing
Stainless Steel 347H Coiled Tubes/ Coil Tubing

▼ Seamless coiled tubing is a no. 1 choice in most of the critical applications as there is no risk of impurities that are often associated with welded coiled tubing.

Made available in custom lengths
Improved system safety and reliability
Greater corrosion resistance
Reduces the use of fittings, preventing the possibilities of leaks and other long-term failures
Reduced installation costs – installation involves less time and efforts

▼Widest range of Stainless Steel 304 Seamless, Welded Pipes & Tubes in China.

Schedule 9.52mm Type 2205 Stainless Steel Pipe	Schedule 9.52*1.24mm 2205 Stainless Steel coiled Pipe
ASTM 5564 1/8” 2205 Seamless Tubing coiled tubing	Polished alloy2205 Stainless Steel coiled Tubing
2205 Stainless Steel Threaded Pipe	SUS alloy2205 Stainless Steel Rectangular Tube
JIS SUS 2205 Seamless Coiled Tubes	alloy2205 SS Round Tube suppliers
SS 304 Welded Tubes for oil and Gas	AMTM alloy2205 Seamless Tube suppliers
ASTM A312 TP304 Coiled Tubing	Stainless Steel Inox alloy2205 Capillary Tubing
ASTM A312 Gr TP 2205 Aerospace tubes	AMS 5566 alloy2205 High Pressure Tube
SA213 TP 2205 Sighting Tube	Typealloy2205 Stainless Steel Polished Pipes
ASTM A312 TP2205 Elliptical and Oval Tubes	AMS 5567 alloy2205 seamless steel coiled Tube
ASTM A213 TP2205 Condenser Tube	AMS 5563 alloy2205 1/4” *0089”Seamless seamless steel tubes
ASTM A269 TP2205 straight tube boiler	AMS 5563 alloy2205 Welded furnace tube
ASTM A249 TP2205 Mirror Tube	AMS 5564 alloy2205 1/8” Welded Tubing, High-Pressure Hydraulic
UNS 2205 Pitot Tube stockist	Stainless Steel alloy2205 Seamless Round Tubing
ASTM A358 alloy2205 Polished Tubing	alloy2205 Stainless Steel Ornamental Tube
Stainless Steel alloy2205 Exhaust Pipe	alloy2205 Stainless Steel Spiral Pipe
ASME SA213 alloy2205 Perforated Tube	WERKSTOFF NR. 1.4301 Flexible Tube
SA 688 alloy2205 Finned Tube	SS alloy2205 seamless steel coiled Tube
Din 1.4301 AISI alloy2205 Perforated Exhaust Tube	Stainless Steel alloy2205 Hypodermic Tubing
Din W.-Nr. 1.4301 Aisi alloy2205 Corrugated Tube	SS alloy2205 Honed Tube
Material 1.4301 Aisi alloy2205 Slotted Handrail Tube	SS alloy2205 Thin Wall Tube
ASTM alloy2205 3/8”*0.035” stainless steel coiled tube	alloy2205 Stainless Steel Threaded Pipe
Stainless Steel alloy2205 Ornamental Pipe	Stainless Steel alloy2205 Fin Tube / Finned Tube
Salloy2205 Stainless Steel U Shaped Tube	alloy2205 Stainless Steel Square Tube Mirror Finish
Din 1.4301 Material Vacuum Tube	ASTM alloy2205 6.35*1.24 stainless steel coiled tubing
alloy2205 Stainless Steel Rectangular Pipe	alloy2205 Stainless Steel Hypodermic Tubing for Medical Needle
Ultra-High Purity Electropolished Stainless Steel alloy2205 Tube	Thin Wall Stainless Steel alloy2205 Tube
Din 1.4301 alloy2205 Stainless Steel Annealed Tubing	alloy2205 Stainless Steel Coil Tubing Heat Exchanger
SAE J405 Uns alloy2205 Thin Wall Tubing	alloy2205 Stainless Steel Metric Tubing
alloy2205 Stainless Steel Seamless Square Tubing	Large Diameter alloy2205 Stainless Steel Tube
alloy2205 Stainless Steel Lined Pipe	Corrugated alloy2205 Stainless Steel Tube for Gas and oil
ASTM A269 alloy2205 stainless steel coiled tubing	alloy2205 Stainless Steel Instrumentation Tubing
alloy2205 9.52*1.24MM Coiled Tubing	alloy2205 Stainless Steel Square Tubing
High-pressure alloy2205 Stainless Steel Water Pipe	Stainless Steel alloy2205 Hexagonal Pipe
Jis alloy2205 stainless Steel Coil Tubing	Stainless Steel alloy2205 Boiler Tube

?Frequently Asked Questions (FAQ)

1. What are the key performance benefits of Grade 2205 stainless steel coiled tubing?

Grade 2205 is a duplex stainless steel designed to combine high strength with exceptional resistance to pitting, stress corrosion cracking, sulfide stress corrosion, and crevice corrosion. It is ideal for demanding environments containing chlorides and hydrogen sulfide.

2. Which production standards govern alloy 2205 coiled tubing?

The coiled tubing is produced in compliance with global standards, primarily ASTM A269 and ASTM A249. These standards specify requirements for nominal-wall-thickness and average-wall-thickness tubing intended for general corrosion-resisting and low- or high-temperature service.

3. What size ranges and specifications are available for these stainless steel coil pipes?

Standard sizes range from 3MM to 25.4MM in diameter with wall thicknesses from 0.3MM to 2.0MM. Delivery lengths typically vary from 200 meters up to more than 2000 meters in a single continuous coil depending on custom client specifications.

4. Why is seamless coiled tubing preferred over welded options in critical systems?

Seamless coiled tubing is the primary choice for critical applications because it eliminates weld seams, thereby mitigating the risk of impurities, weak points, and leaks. This results in enhanced system safety, higher pressure limits, and reduced installation costs.

5. What are the typical applications for duplex alloy 2205 coiled tubes?

Common applications include refrigeration systems, heat exchangers, chemical processing, condensation water heating equipment, oil and gas piping works, and gas-liquid delivery systems requiring continuous structural integrity and high corrosion resistance.
