Engineered to exact tolerances and optimized for cost-efficiency, our premium Grade 202 precision lines serve Greece's rapid logistics, mechanical assembly, and architectural expansion.
ASTM A554 standard high-precision structural tubes, customized for Athens urban renewal grids.
View Specification
Dual-standard JIS G3446/DIN 17455 mechanical tubes, ready for Thessaloniki machine assembly lines.
View Specification
Custom wall-thickness tolerance processing with bright annealed inner surface finish.
View Specification
Precision-machined NPT/BSPT male connectors, optimized for high-pressure fluid loops.
View SpecificationAs the Southern European hub undergoes structural modernizations, infrastructure project managers and industrial buyers are faced with volatile nickel prices on the London Metal Exchange (LME). This volatility has forced a search for cost-effective alternatives to standard Cr-Ni alloys like 304. Grade 202 Stainless Steel (Fe-Cr-Mn-N) offers a compelling metallurgical solution. By replacing a significant portion of nickel with manganese and nitrogen, Grade 202 provides equivalent structural capabilities at a highly stable price index.
This whitepaper, prepared by the metallurgy and systems engineering division of Liaocheng Sihe Stainless Steel Material LTD, provides a complete overview of the performance envelopes, mechanical benefits, and procurement frameworks of 202 precision tubing. We focus specifically on application in Greece's dynamic industrial centers—including the shipping infrastructure of Piraeus, the agricultural grids of Thessaly, and the expanding industrial zones of Attica and Central Macedonia.
Greece acts as a key entry point for the European Union's Belt and Road investments. Consequently, logistics hubs and coastal processing plants are growing fast. While marine environments directly exposed to sea spray demand heavy duplex or 316L grades, the interior structural networks, logistics handling equipment, transport components, and non-acidic industrial fluid pipelines benefit from the high yield strength of 202.
Greek building regulations, aligned with Eurocode 3, place high emphasis on seismic resistance and structural yield ratios. Grade 202, due to nitrogen-stabilized work hardening, provides yield strength figures up to 310 MPa—significantly exceeding standard 304. This makes it ideal for indoor framing, architectural structural columns, and transportation components in Athens and Thessaloniki.
To maximize the service life of precision piping systems, engineers must understand the metallurgical differences between austenitic steel families. Grade 202 belongs to the 200-series family, characterized by its reliance on manganese (Mn) and nitrogen (N) to stabilize the face-centered cubic (austenite) phase. Below, we compare the chemical composition of Grade 202 against 304 and 316L:
| Alloy Grade | Chromium (Cr)% | Nickel (Ni)% | Manganese (Mn)% | Nitrogen (N)% | Silicon (Si)% | Yield Strength (0.2% Offset) | Ultimate Tensile Strength |
|---|---|---|---|---|---|---|---|
| Grade 202 (UNS S20200) | 17.0 - 19.0 | 4.0 - 6.0 | 7.5 - 10.0 | ≤ 0.25 | ≤ 1.00 | ≥ 310 MPa | ≥ 640 MPa |
| Grade 304 (UNS S30400) | 18.0 - 20.0 | 8.0 - 10.5 | ≤ 2.00 | ≤ 0.10 | ≤ 0.75 | ≥ 205 MPa | ≥ 515 MPa |
| Grade 316L (UNS S31603) | 16.0 - 18.0 | 10.0 - 14.0 | ≤ 2.00 | ≤ 0.10 | ≤ 0.75 | ≥ 170 MPa | ≥ 485 MPa |
Liaocheng Sihe Stainless Steel Material LTD has mapped out specific technical application routes where Grade 202 precision pipes offer maximum utility and optimal return on investment (ROI) within Southern Europe:
Used widely in indoor structural systems, passenger handrails, metro-station support frames, and safety enclosures in dry public plazas across Greek municipal centers. Excellent resistance to atmospheric humidity away from direct marine exposure.
Ideal for hydraulic and transport lines in Thessaly olive oil extraction facilities, wine fermentation tank structures, and grain distribution networks. Meets necessary strength requirements while ensuring structural hygiene.
Specified for structural exhaust rings, fluid tubing, mechanical bushings, and structural linkages within Greek commercial truck chassis modifications and machinery repair workshops in Thessaloniki.
For projects located in coastal saltwater zones or in contact with highly acidic foods, we recommend our specialized corrosion-resistant alloys, such as 316L, Duplex 2205, Super Duplex 2507, or Incoloy 825. Utilizing the correct material match avoids pitting corrosion and premature component failure.
We manufacture a complete range of alloy configurations for high-temperature, offshore, and petrochemical operations.
High-temperature oxidation resistant exchanger pipes, rated for continuous exposure above 1000°C.
View Specification

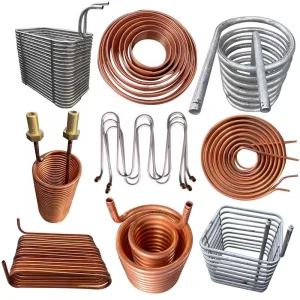

ASTM A269 seamless heat exchanger tubes, processed with bright hydrogen annealing.
View Specification
Ferritic stainless steel sheets, exhibiting excellent deep-drawing properties and cost stability.
View Specification
Custom fabricated cooling exchangers with high-density coil configuration.
View SpecificationLiaocheng Sihe Stainless Steel Material LTD operates six advanced production lines with a focus on continuous coiled tubing development. Our state-of-the-art facility integrates automated cold drawing with inline bright hydrogen annealing. This technology eliminates surface scaling and maintains tight wall-thickness tolerances.
Our manufacturing technology allows us to produce continuous coiled tubing lengths up to 32,800 feet (10,000 meters) without orbital welds. This single-tube design is ideal for deepwater offshore umbilicals and chemical injection lines, significantly reducing leak points and improving installation efficiency.
To guarantee reliability, we perform rigorous inline and offline testing. This includes hydrostatic testing, pneumatic pressure validation, 100% electromagnetic eddy current inspections, flaring and flattening mechanical tests, and hardness checks.
Our online bright annealing systems treat the pipes in a protective hydrogen atmosphere. This process maintains metal ductility without oxidizing the outer or inner tube surfaces. The resulting bright, smooth surface prevents scale buildup and resists bacterial growth, making it suitable for clean HVAC heat exchangers and capillary instrumentation.
Additionally, we supply custom coil sizes ranging from 0.125 inches (3.175 mm) up to 1 inch (25.4 mm) in outside diameter, with wall thicknesses up to 0.165 inches (3.0 mm). All parameters are configurable to meet specific project demands in the Greek industrial market.
Deploying piping systems in Greece requires strict adherence to European standards. Liaocheng Sihe ensures full compliance with CE marking and international manufacturing standards: EN 10217-7 (welded steel tubes for pressure purposes), EN 10216-5 (seamless stainless steel tubes), ASTM A269, and JIS G3459. We supply complete testing certifications, including EN 10204 3.1 Mill Test Certificates (MTC), Certificates of Conformity (CoC), and raw material origin reports.
For seamless customs clearance at Greek ports like Piraeus and Thessaloniki, we supply EU-compliant documentation structures. We work alongside top European shipping agencies to arrange reliable ocean freight under CIF, FOB, or DDP terms. This minimizes logistics delays and helps maintain project schedules.
Select from our globally verified alloy stock configurations, manufactured to international engineering standards.
Premium 304 cold-rolled sheets, optimized for structural fabricating and deep drawing.
View Specification
Micro-bore capillary tubing for chromatography, sensing instrumentation, and cooling loops.
View Specification

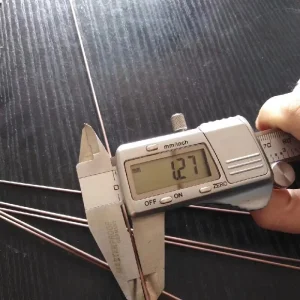

High-tolerance 316 capillary tubing, manufactured to ASTM standards with clean inner diameter surfaces.
View Specification
Seamless coiled pipe lines for continuous process loops and chemical injection systems.
View Specification
Nickel-iron-chromium alloy tubing, designed to resist stress-corrosion cracking and acid attack.
View Specification
Low-carbon 316L sheets, suitable for maritime structural components and welding.
View Specification

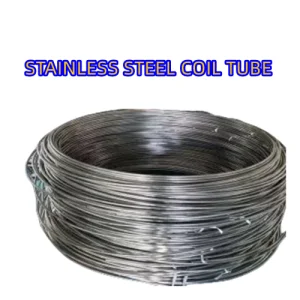

Heavy-duty 304 coiled tubing, designed for downhole exploration and subsea control systems.
View Specification
High-temperature welded exhaust pipe, designed to resist cyclic heat oxidation.
View SpecificationLiaocheng Sihe materials are engineered for reliability in challenging industrial environments.
Supports various materials (e.g., 304, 316L, 2205) and specifications (diameter 6.35mm to 19mm) for stainless steel coils.
Includes bending, spiral forming, precision drawing, and other processes tailored for heat exchangers.
Laser cutting, mechanical cutting, or flame cutting for high-precision and efficient material processing.
We devote ourselves to developing new products with state-of-art technologies.
Used in automotive exhaust systems, chemical pipelines, and precision instrument connections.
2205 stainless steel is a duplex stainless steel containing austenitic and ferritic phases, combining strength and corrosion resistance.
1/2 stainless steel coiled tubing refers to a coil of stainless steel tubing with standard dimensions, designed for chemical dosing loops.
China 310 Steel Coil Tube Factories specialize in high-temperature oxidation resistant coiled tubing configurations.
Technical answers regarding Grade 202 properties, price, and supply chain logistics for the Greek industrial market.
Contact our technical sales team for project specifications, mechanical compliance documentation, and current shipping rates to Greek ports.
