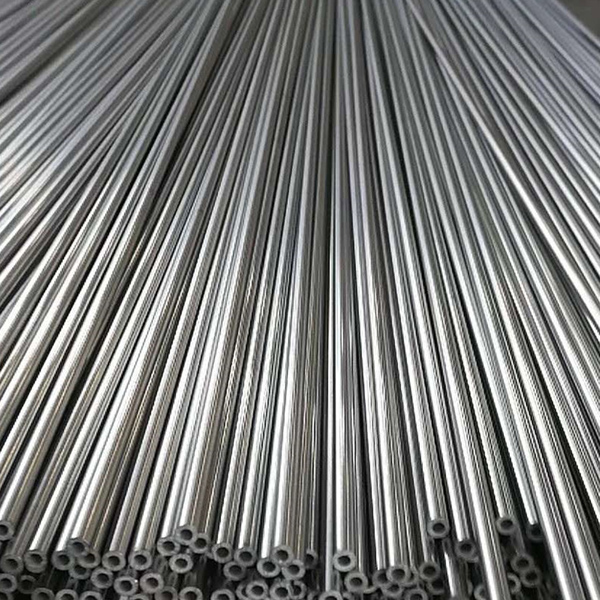

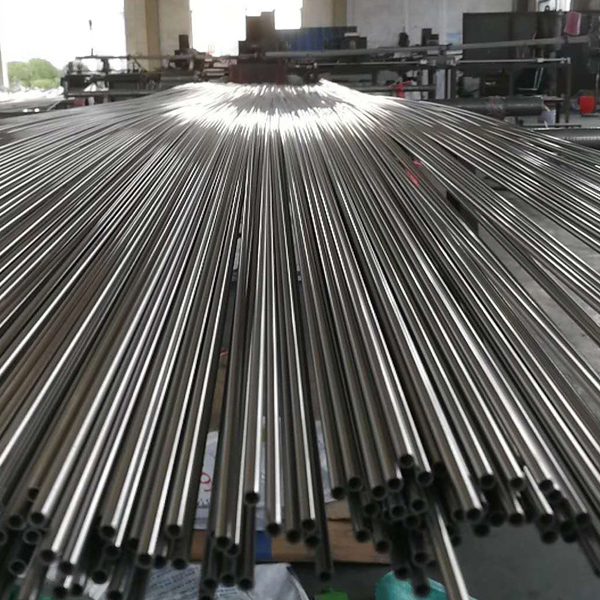

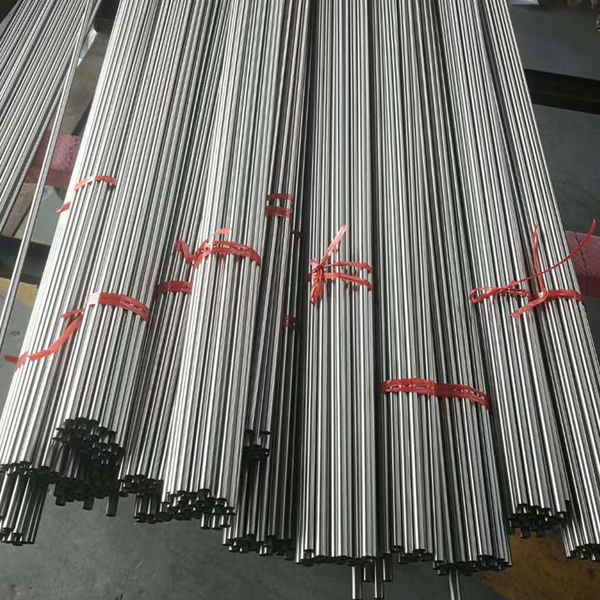

China Stainless steel Precision pipe for 202 grade Supplier, Quotes

Stianless Steel Pipe /TUBE 1. : Grade :201 202 304 304l 316 316l 2. Standard:ASTM DIN JIS AISI GB 3.Surface: 2B BA NO.4 Mirror 320# 380# 400#600# 800# 4.Length :6M 11.5 M 12M or As Per your requirment. 5.OD :Round Tube 9.52-219MM Retangle :10*10-150-150 6.Inner packing :Plastic Bag 7.Outer Packing: Carton /Woven/Wooden Packaging 8.Od:+/- 0.2mm, Thickness: +/- 0.02mm

Send Inquiry

Product Description

Stainless steel pipe is one of the more standardized materials in the building and engineering industries. Stainless Steel Seamless Pipes is a hollow steel bar, a large number of pipes used for conveying fluids, such as oil, gas, water, gas, steam, heat exchanger, and mechanical machines.

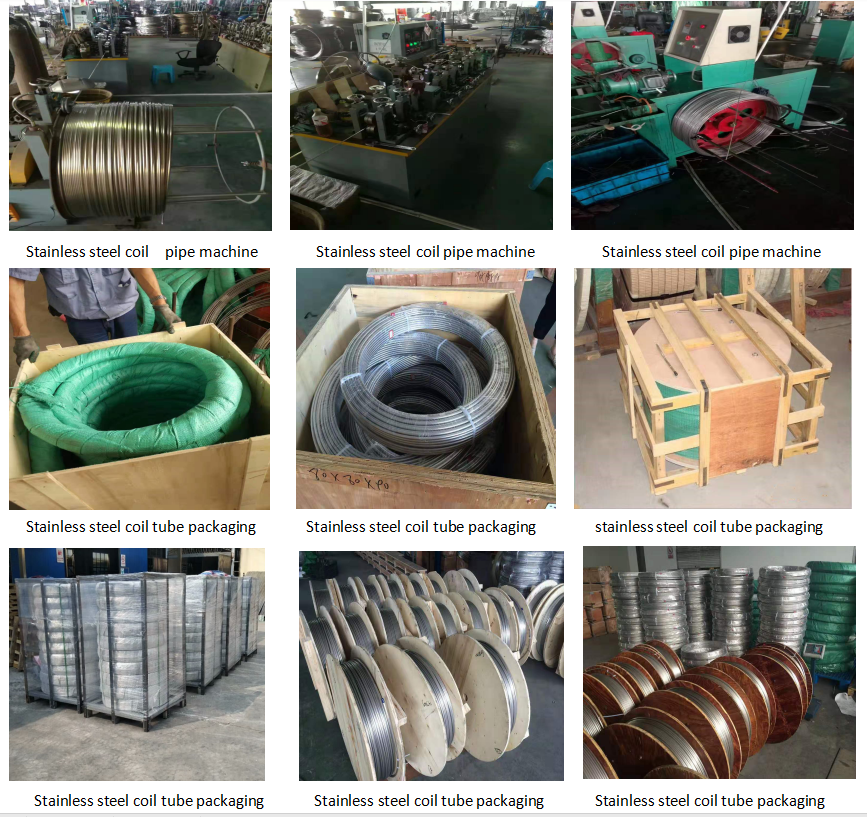

Stainless Steel Coil Products

stainless steel coil tube
stainless steel tube coil
stainless steel coil tubing
stainless steel coil pipe
stainless steel coil tube suppliers
stainless steel coil tube manufacturers
stainless steel pipe coil

Specification

Standard ASTM A-312, ASTM A-269, ASTM A-632, ASTM A-213, DIN 17458, DIN 17456, JIS G3463, JIS G3459, JIS G3448

Material Grade 201 / 202 / 304 / 316

Outer Diameter 0.1mm -- 8mm

Thickness 0.05mm - 2.1mm

Length 2440mm, 3050mm, 5800mm, 6000mm, 6100mm or as customer request

Tolerance a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 10% or as customer request
c) Length: +/- 10mm

Surface Satin / Hairline: 180#, 320#

Polish 400#, 600#, 800# or Mirror surface

Application Processed into railings, handrails, doors and Windows

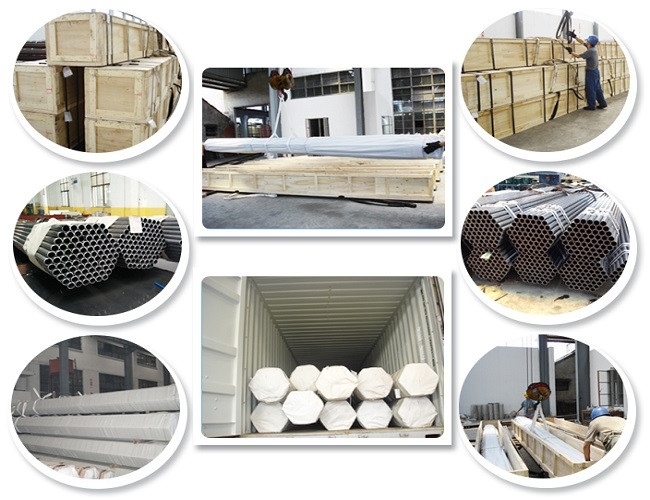

Packing Plastic bag / woven packing (please send details packing if you have other requirements)

Chemical Composition

Grade	C(Max)	Mn(Max)	P(Max)	S(Max)	Si(Max)	Cr	Ni	Mo	N(Max)	Cu/Others
304	0.08	2	0.045	0.03	1	18.00-20.00	8.00-10.50	-	0.1	-
304L	0.03	2	0.045	0.03	1	18.00-20.00	8.00-12.00	-	0.1	-
310S	0.08	2	0.045	0.03	1.5	24.00-26.00	19.00-22.00	-	-	-
316	0.08	2	0.045	0.03	1	16.00-18.00	10.00-14.00	2.00-3.00	-	-
316L	0.03	2	0.045	0.03	1	16.00-18.00	10.00-14.00	2.00-3.00	0.1	-

Application: Hydraulic pneumatic components, textile chemical fiber machinery, medical and chemical, food hygiene, instrumentation, boilers, pressure vessels and other mechanical and electronic industries.

Square Steel Tube (mm)	Rectangular Steel Tube (mm)	Round Steel Tube (mm)
10×10×0.6~3.0	10×20×0.6~3.0	6x0.6~1.0
15×15×0.6~3.0	20×30×0.6~3.0	12x0.6~1.5
20×20×0.6~3.0	20×40×0.6~3.0	13x0.6~1.5
25×25×0.6~3.0	25×50×0.6~3.5	16x0.6~2.0
30×30×0.6~3.5	30×50×0.6~3.5	19x0.6~3.0
40×40×0.6~3.5	40×60×0.6~3.5	20x0.6~3.0
50×50×0.6~3.5	40×80×0.6~3.5	22x0.6~3.0
60×60×0.6~3.5	60×80×1.0~6.0	25x0.6~3.0
70×70×0.6~3.5	50×100×1.0~6.0	27x0.6~3.0
75×75×0.6~3.5	60×120×1.0~6.0	32x0.6~3.0
80×80×1.0~6.0	80×120×2.0~8.0	40x0.6~3.5
100×100×2.0~8.0	80×160×2.0~8.0	38x0.6~3.0
120×120×2.0~8.0	100×150×2.0~8.0	48x0.6~3.5
150×150×2.0~8.0	100×200×2.0~8.0	60x0.6~3.5
200×200×4.0~16.0	150×250×4.0~12.0	76x0.6~3.5
250×250×4.0~16.0	200×300×4.0~16.0	89x1.0~6.0
300×300×4.0~16.0	300×400×4.0~16.0	104x1.0~6.0
400×400×4.0~16.0	300×500×4.0~16.0	114x1.0~6.0

The physical properties of stainless steel polishing pipe:

Grade	Composition, %
Grade	Carbon, max	Manganese, max	Phosphorus, max	Sulfur, max	Silicon, max	Nickel	Chromium	Molybdenum	Titanium	Columbium + Tantalum
Austenitic
301	0.15	2.00	0.040	0.030	1.00	6.0–8.0	16.0–18.0	...	...	...
302	0.15	2.00	0.040	0.030	1.00	8.0–10.0	17.0–19.0	...	...	...
304	0.08	2.00	0.040	0.030	1.00	8.0–11.0	18.0–20.0	...	...	...
304L	0.035A	2.00	0.040	0.030	1.00	8.0–13.0	18.0–20.0	...	...	...
305	0.12	2.00	0.040	0.030	1.00	10.0–13.0	17.0–19.0	...	...	...
309S	0.08	2.00	0.040	0.030	1.00	12.0–15.0	22.0–24.0	...	...	. . .
309S-Cb	0.08	2.00	0.040	0.030	1.00	12.0–15.0	22.0–24.0	...	...	B
310S	0.08	2.00	0.040	0.030	1.00	19.0–22.0	24.0–26.0	...	...	...
316	0.08	2.00	0.040	0.030	1.00	10.0–14.0	16.0–18.0	2.0–3.0	...	...
316L	0.035A	2.00	0.040	0.030	1.00	10.0–15.0	16.0–18.0	2.0–3.0	...	...
317	0.08	2.00	0.040	0.030	1.00	11.0–14.0	18.0–20.0	3.0–4.0	...	...
321	0.08	2.00	0.040	0.030	1.00	9.0–13.0	17.0–20.0	...	C	...
330	0.15	2.00	0.040	0.030	1.00	33.0–36.0	14.0–16.0	...	...	...
347	0.08	2.00	0.040	0.030	1.00	9.0–13.0	17.0–20.0	...	...	B
429	0.12	1.00	0.040	0.030	1.00	0.50 max	14.0–16.0	...	...	...
430	0.12	1.00	0.040	0.030	1.00	0.50 max	16.0–18.0	...	...	...
430-Ti	0.10	1.00	0.040	0.030	1.00	0.075 max	16.0–19.5	...	5 × C min	...
									0.75 max

▼ Stainless steel coiled tubing / coiled tubes material grade:

U.S.A.	GERMANY	GERMANY	FRANCE	JAPAN	ITALY	SWEDEN	U.K.	E.U.	SPAIN	RUSSIA
AISI	DIN 17006	W.N. 17007	AFNOR	JIS	UNI	SIS	BSI	EURONORM
201				SUS 201
301	X 12 CrNi 17 7	1.4310	Z 12 CN 17-07	SUS 301	X 12 CrNi 1707	23 31	301S21	X 12 CrNi 17 7	X 12 CrNi 17-07
302	X 5 CrNi 18 7	1.4319	Z 10 CN 18-09	SUS 302	X 10 CrNi 1809	23 31	302S25	X 10 CrNi 18 9	X 10 CrNi 18-09	12KH18N9
303	X 10 CrNiS 18 9	1.4305	Z 10 CNF 18-09	SUS 303	X 10 CrNiS 1809	23 46	303S21	X 10 CrNiS 18 9	X 10 CrNiS 18-09
303 Se			Z 10 CNF 18-09	SUS 303 Se	X 10 CrNiS 1809		303S41		X 10 CrNiS 18-09	12KH18N10E
304	X 5 CrNi 18 10 X 5 CrNi 18 12	1.4301 1.4303	Z 6 CN 18-09	SUS 304	X 5 CrNi 1810	23 32	304S15 304S16	X 6 CrNi 18 10	X 6 CrNi 19-10	08KH18N10 06KH18N11
304 N				SUS 304N1	X 5 CrNiN 1810
304 H				SUS F 304H	X 8 CrNi 1910				X 6 CrNi 19-10
304 L	X 2 CrNi 18 11	1.4306	Z 2 CN 18-10	SUS 304L	X 2 CrNi 1911	23 52	304S11	X 3 CrNi 18 10	X 2 CrNi 19-10	03KH18N11
LN	X 2 CrNiN 18 10	1.4311	Z 2 CN 18-10-Az	SUS 304LN	X 2 CrNiN 1811	23 71
305			Z 8 CN 18-12	SUS 305	X 8 CrNi 1812	23 33	305S19	X 8 CrNi 18 12	X 8 CrNi 18-12
XM7			Z 6 CNU 18-10	SUS XM7				X 6 CrNiCu 18 10 4 Kd
309	X 15 CrNiS 20 12	1.4828	Z 15 CN 24-13	SUH 309	X 16 CrNi 2314		309S24	X 15 CrNi 23 13
309 S				SUS 309S	X 6 CrNi 2314			X 6 CrNi 22 13
310	X 12 CrNi 25 21	1.4845		SUH 310	X 22 CrNi 2520		310S24			20KH23N18
310 S	X 12 CrNi 25 20	1.4842	Z 12 CN 25-20	SUS 310S	X 5 CrNi 2520	23 61		X 6 CrNi 25 20		10KH23N18
314	X 15 CrNiSi 25 20	1.4841	Z 12 CNS 25-20		X 16 CrNiSi 2520			X 15 CrNiSi 25 20		20KH25N20S2
316	X 5 CrNiMo 17 12 2	1.4401	Z 6 CND 17-11	SUS 316	X 5 CrNiMo 1712	23 47	316S31	X 6 CrNiMo 17 12 2	X 6 CrNiMo 17-12-03
316 (3)	X 5 CrNiMo 17 13 3	1.4436	Z 6 CND 17-12	SUS 316	X 5 CrNiMo 1713	23 43	316S33	X 6 CrNiMo 17 13 3	X 6 CrNiMo 17-12-03
316 F	X 12 CrNiMoS 18 11	1.4427
316 N				SUS 316N
316 H				SUS F 316H	X 8 CrNiMo 1712				X 5 CrNiMo 17-12
316 H (2)					X 8 CrNiMo 1713				X 6 CrNiMo 17-12-03
316 L	X 2 CrNiMo 17 13 2	1.4404	Z 2 CND 17-12	SUS 316L	X 2 CrNiMo 1712	23 48	316S11	X 3 CrNiMo 17 12 2	X 2 CrNiMo 17-12-03	03KH17N14M2
316 LN	X 2 CrNiMoN 17 12 2	1.4406	Z 2 CND 17-12-Az	SUS 316LN	X 2 CrNiMoN 1712
316 L (3)	X 2 CrNiMo 18 14 3	1.4435	Z 2 CND 17-13		X 2 CrNiMo 1713	23 53	316S13	X 3 CrNiMo 17 13 3	X 2 CrNiMo 17-12-03	03KH16N15M3
316 LN (3)	X 2 CrNiMoN 17 13 3	1.4429	Z 2 CND 17-13-Az		X 2 CrNiMoN 1713	23 75
316 Ti	X 6 CrNiMoTi 17 12 2	1.4571	Z6 CNDT 17-12		X 6 CrNiMoTi 1712	23 50	320S31	X 6 CrNiMoTi 17 12 2	X 6 CrNiMoTi 17-12-03	08KH17N13M2T 10KH17N13M2T
316 Ti (2)	X 10 CrNiMoTi 18 12	1.4573			X 6 CrNiMoTi 1713		320S33	X 6 CrNiMoTI 17 13 3	X 6 CrNiMoTi 17-12-03	08KH17N13M2T 10KH17N13M2T
316 Cb	X 6 CrNiMoNb 17 12 2	1.4580	Z 6 CNDNb 17-12		X 6 CrNiMoNb 1712			X 6 CrNiMoNb 17 12 2		08KH16N13M2B
316 Cb (2)	X 10 CrNiMoNb 18 12	1.4583			X 6 CrNiMoNb 1713			X 6 CrNiMoNb 17 13 3		09KH16N15M3B
317				SUS 317	X 5 CrNiMo 1815	23 66	317S16
317 L	X 2 CrNiMo 18 16 4	1.4438	Z 2 CND 19-15	SUS 317L	X 2 CrNiMo 1815	23 67	317S12	X 3 CrNiMo 18 16 4
317 L (2)	X 2 CrNiMo 18 16 4	1.4438	Z 2 CND 19-15	SUS 317L	X 2 CrNiMo 1816	23 67	317S12	X 3 CrNiMo 18 16 4
330	X 12 NiCrSi 36 16	1.4864	Z 12NCS 35-16	SUH 330
321	X 6 CrNiTi 18 10 X 12 CrNiTi 18 9	1.4541 1.4878	Z 6 CNT 18-10	SUS 321	X 6 CrNiTi 1811	23 37	321S31	X 6 CrNiTi 18 10	X 6 CrNiTi 18-11	08KH18N10T
321 H				SUS 321H	X 8 CrNiTi 1811		321S20		X 7 CrNiTi 18-11	12KH18N10T
329	X 8 CrNiMo 27 5	1.4460		SUS 329J1		23 24
347	X 6 CrNiNb 18 10	1.4550	Z 6 CNNb 18-10	SUS 347	X 6 CrNiNb 1811	23 38	347S31	X 6 CrNiNb 18 10	X 6 CrNiNb 18-11	08KH18N12B
347 H				SUS F 347H	X 8 CrNiNb 1811				X 7 CrNiNb 18-11
904L		1.4939	Z 12 CNDV 12-02
UNS31803	X 2 CrNiMoN 22 5	1.4462
UNS32760	X 3 CrNiMoN 25 7	1.4501	Z 3 CND 25-06Az
403	X 6 Cr 13 X 10 Cr 13 X 15 Cr 13	1.4000 1.4006 1.4024	Z 12 C 13	SUS 403	X 12 Cr 13	23 02	403S17	X 10 Cr 13 X 12 Cr 13	X 6 Cr 13	12Kh13
405	X 6 CrAl 13	1.4002	Z 6 CA 13	SUS 405	X 6 CrAl 13		405S17	X 6 CrAl 13	X 6 CrAl 13
405 (2)	X 10 CrAl 7	1.4713	Z 8 CA 7					X 10 CrAl 7
405 (3)	X 10 CrAl 13	1.4724			X 10 CrAl 12					10Kh13SYu
405 (4)	X 10 CrAl 18	1.4742						X 10 CrSiAl 18		15Kh18SYu
409	X 6 CrTi 12	1.4512	Z 6 CT 12	SUH 409	X 6 CrTi 12		409S19	X 5 CrTi 12
409 (2)					X 2 CrTi 12
410	X 6 Cr 13 X 10 Cr 13 X 15 Cr 13	1.4000 1.4006 1.4024	Z 10 C 13 Z 12 C 13	SUS 410	X 12 Cr 13	23 02	410S21	X 12 Cr 13	X 12 Cr 13	12Kh13
410 S	X 6 Cr 13	1.4000	Z 6 C 13	SUS 410S	X 6 Cr 13	23 01	403S17	X 6 Cr 13		08Kh13

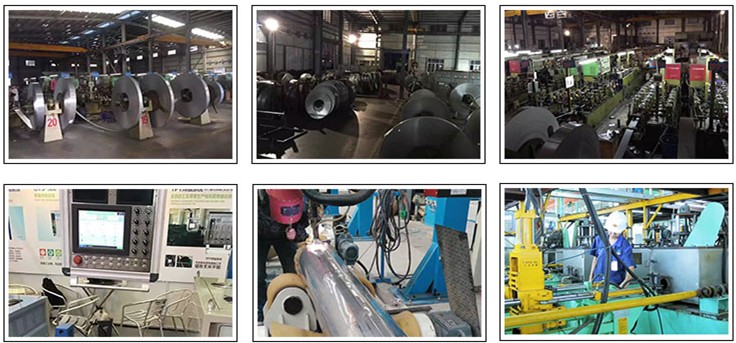

Factory Display

Quality Advantage

The quality of our products for the control line in the oil and gas sector is assured not just during the controlled manufacturing process but also by way of finished product testing. Typical tests include:

Non-destructive tests
Hydrostatic tests
Surface finish controls
Dimensional accuracy measurements
Flare and coning tests
Mechanical and chemical property testing

Application of Capillary Tube

Medical device industry
Temperature-guided industrial temperature control, sensor tubes, thermometer tubes
Pens care industry core tube
Micro-tube antenna, various types of small precision stainless steel antenna
Various electronics with small-diameter stainless steel capillary
Jewelry needle punch
Watches, precision instruments
Car antenna tube, bar antennas, telescopic antenna tubes
Laser engraving equipment components
Fishing gear and related accessories
Dietary/food grade applications using stainless steel capillary
Mobile phone and computer styluses
Heating pipe industry, oil industry
Printers, silent box needles
Double-melt stainless steel tube used in window-coupled
Industrial precision small-diameter stainless steel tubes
Precision dispensing needles
Microphones, headphones, and audio equipment tubes

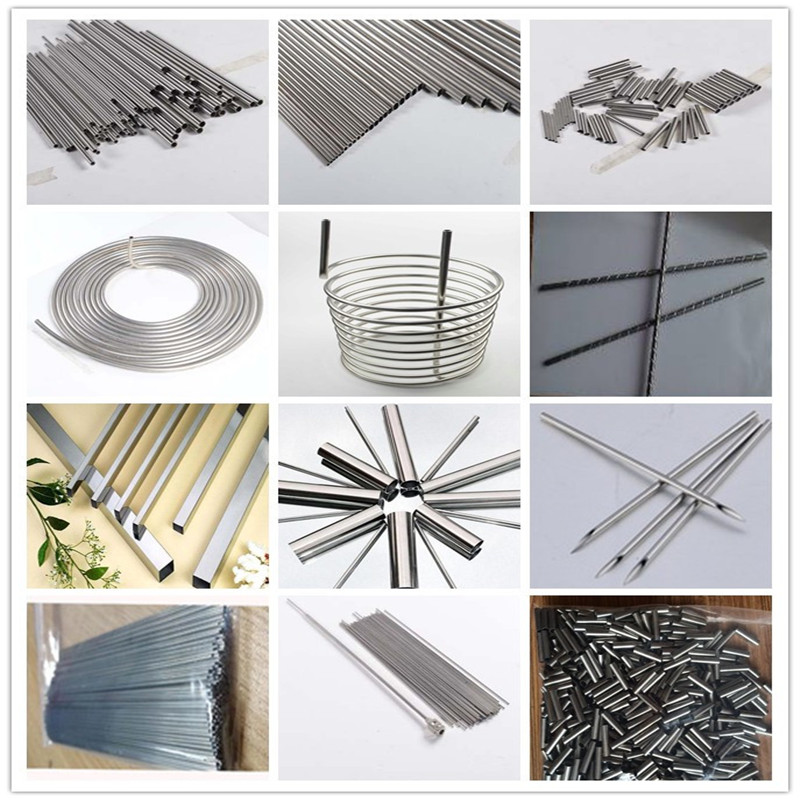

Product Gallery

Frequently Asked Questions (FAQ)

What standards apply to these stainless steel precision pipes?

They conform to various international standards including ASTM A-312, ASTM A-269, ASTM A-632, ASTM A-213, DIN 17458, DIN 17456, JIS G3463, JIS G3459, and JIS G3448.

What are the available dimensions for these precision tubes?

We supply precision tubes with outer diameters from 0.1mm to 8mm and wall thicknesses ranging from 0.05mm to 2.1mm. Standard lengths include 2440mm, 3050mm, 5800mm, 6000mm, and 6100mm, or custom dimensions upon request.

Which surface finishes are available?

Surface options include Satin/Hairline finishes at 180# and 320#, as well as high polish finishes at 400#, 600#, 800#, and premium Mirror finishes.

How is the quality of the control line and precision tubes tested?

We run complete quality assurance tests, including Non-destructive testing, Hydrostatic testing, Surface finish inspection, Dimensional accuracy check, Flare/coning tests, and Mechanical & chemical property evaluations.

What are the main applications of these stainless steel capillary tubes?

Capillary tubes are widely used in medical devices, industrial temperature control systems, electronic micro-antennas, jewelry needles, watchmaking, laser engraving systems, printers, and precision dispensing systems.

What material grades are offered for chemical composition?

We support multiple grades including 301, 302, 304, 304L, 305, 309S, 310S, 316, 316L, 317, 321, 330, and 347, conforming to AISI, DIN, JIS, AFNOR, and EURONORM specifications.
