Explore our certified inventory of stainless steel sheets, precision tubes, and high-integrity coiled tubing lines.
Understanding the material kinetics, mechanical behaviors, and deployment strategies of continuous coiled alloys in severe operating environments.
Alloy TP316L (UNS S31603) represents the low-carbon variant of the standard 316 austenitic stainless steel series. The critical distinction lies in the carbon content restriction to ≤ 0.030%. This metallurgical boundary minimizes the risk of chromium carbide precipitation at grain boundaries during welding or high-temperature processing. By preventing sensitization, the material remains robust against intergranular corrosion.
The enrichment of 2.0% to 3.0% Molybdenum (Mo) within the alloy lattice structure is paramount. Mo alters the passive oxide layer kinetics, drastically increasing the Pitting Resistance Equivalent Number (PREN) to ≥ 23. This chemistry is critical in preventing localized halide pitting and crevice corrosion under high salt concentrations (e.g., marine atmospheres, brackish well waters).
Traditional pipe joining introduces numerous weld seams, which act as primary stress-concentration zones and potential leak paths. Seamless coiled tubing eliminates orbital joints, ensuring uniform hydraulic cross-sections. In deepwell injection and offshore subsea control systems, joints represent systemic vulnerability.
By utilizing high-precision cold-drawing processes coupled with online bright hydrogen annealing, we produce spools up to 10,000 meters (32,800 feet). This process maintains concentricity, smooth internal surfaces (low roughness values, Ra ≤ 0.4 μm), and uniform grain sizes, translating directly to reduced friction coefficients and enhanced fatigue life cycles.
Note on Deepwater Challenges: As extraction activities move into waters deeper than 2,000 meters, external hydrostatic pressures become severe. Mechanical failure is not an option. TP316L provides the optimal balance of ductility, yield strength, and economical durability to withstand high tension and bending fatigue cyclic loads on winch drums.
Design engineers must select materials based on international code compliances. Below is the comparative analysis showing chemical elements and mechanical property metrics for our premium 316L coiled tubing supplies.
| Alloy (UNS) | C (%) | Mn (%) | Cr (%) | Ni (%) | Mo (%) | Yield Strength (Min) | Tensile Strength (Min) | Hardness (Max) |
|---|---|---|---|---|---|---|---|---|
| TP316L (S31603) | ≤ 0.030 | ≤ 2.00 | 16.0 - 18.0 | 10.0 - 14.0 | 2.00 - 3.00 | ≥ 170 MPa (25 ksi) | ≥ 485 MPa (70 ksi) | 80 HRB / 90 HRB |
| Duplex 2205 (S31803) | ≤ 0.030 | ≤ 2.00 | 22.0 - 23.0 | 4.5 - 6.5 | 3.00 - 3.50 | ≥ 450 MPa (65 ksi) | ≥ 655 MPa (95 ksi) | 25 HRC / 32 HRC |
Why modern global energy, pharmaceutical, and engineering conglomerates source their precision alloy tubes directly from Liaocheng, China.
We incorporate continuous hydrogen-atmosphere induction heat treatment. This system prevents oxygen contamination on the inner and outer diameters, producing a highly reflective, scale-free surface that resists crevice micro-corrosion.
Every meter of our coiled tubing undergoes rigorous testing. We execute multi-frequency Eddy Current Testing and hydrostatic examinations up to 10,000 PSI to discover any micro-voids, wall reductions, or surface anomalies before dispatch.
Equipped with specialty wood/steel core heavy-duty spools, our packing accommodates complex shipping routes. We guarantee secure transoceanic container handling, maintaining coiled structural symmetry without bending stresses.
An ISO-certified leader in the manufacture of high-alloy coiled tubing and ultra-long seamless processing lines.
Liaocheng sihe stainless steel material LTD is a leading expert in the field of stainless steel coiled tube, stainless steel polishing tube, and stainless steel seamless coiled tubing. Operating six dedicated production lines, our industrial facilities strictly execute quality standards following GB, ASTM, ASME, JIS, and EN codes.
With over 10 years of specialized history, our company has pioneered the introduction of world first-class bright annealing technology, allowing for continuous online stainless steel pipe softening and stress-relieving treatment. Our material capabilities span a broad spectrum of corrosion-resistant alloys, including:
Our dimensional capability covers outside diameters ranging from 0.125 inch (3.175 mm) to 1 inch (25.4 mm), with wall thicknesses up to 0.165 inch (4.19 mm). To optimize offshore operations, we supply single continuous lengths up to 32,800 feet (10,000 meters).
Our coiled tubes are deployed in crucial sectors demanding high structural reliability and resistance to corrosive environments.
Continuous coils minimize connection leaks, maximizing heat transfer rates.
Formable, high-pressure tubing designed for demanding chemical coolants.
Designed for highly corrosive acids, bases, and volatile organic liquids.
Sanitary finishes prevent bacterial propagation and clean-in-place issues.
Electro-polished (EP) inner surfaces meet strict biosecurity standards.
Ideal for boiler feedwater piping and critical instrumentation.
Withstands high temperatures and pressures in downhole refining environments.
Combines low weight with high burst pressures for hydraulic actuators.
Providing specialized mechanical shaping and processing adjustments to match your exact configuration designs.

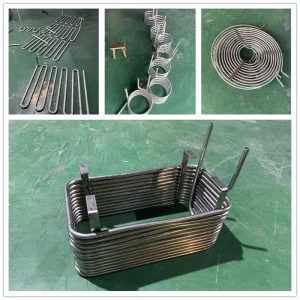

Precision spiral and multi-axis bending patterns optimized for heat exchangers and hydraulic space-limited compartments.
Advanced laser, mechanical, or flame cutting ensures perfectly square edges with tight tolerances for subsequent orbital welding.
Used widely in automotive exhaust systems, chemical pipelines, and precision instrument connections to secure leakproof mechanical fits.
Explore specialized alloys, capillary structures, and custom processing diameters.
2205 duplex stainless steel containing austenitic and ferritic structures, offering exceptional stress corrosion cracking resistance.
Commonly selected 1/2" outer diameter coiled line for high-pressure control lines and chemical dosing injections.
High-temperature oxidation resistant 310 stainless steel tubing designed for thermal reactors and boiler operations.
Extended reliability options in customized lengths and alloy configurations.
Uniform outer and inner diameters designed for sanitary food processing and instrumentation.
Specifically matched dimensions conforming to customized layout diagrams.
Ultra-thin diameter tubing for high-performance gas chromatography and laboratory analysis.
Superior mechanical performance coupled with reliable local processing capabilities.
Providing essential control line components for oil & gas subsea development zones.
Specialty nickel alloy coils constructed to withstand extreme sour gas concentrations.
Providing stable performance and heat conductivity in power plants.
Mirror-smooth surface finishes for advanced chemical dosing and sampling loops.
Ensuring compliance with localized regulatory certificates for critical projects.
Proof of our rigorous quality management systems and adherence to safety guidelines.
Find technical and logistical answers regarding 316L coiled tubing procurement, pricing, and manufacturing parameters.
