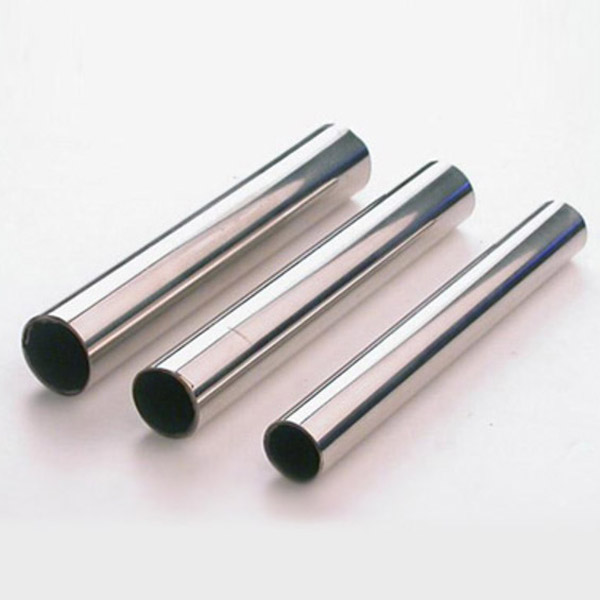

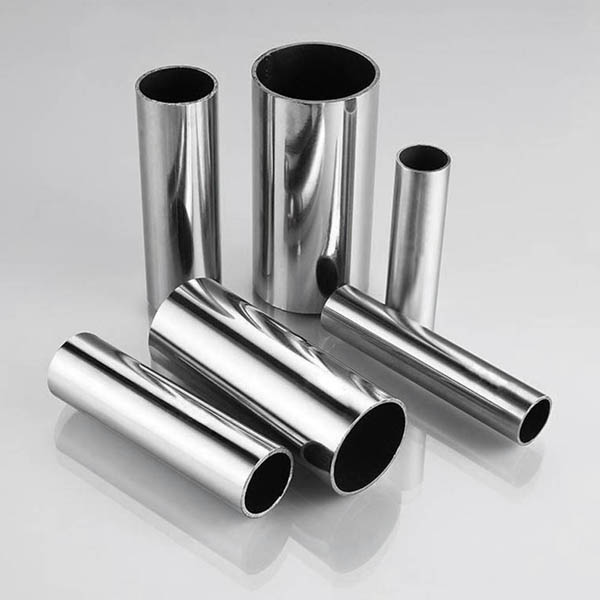

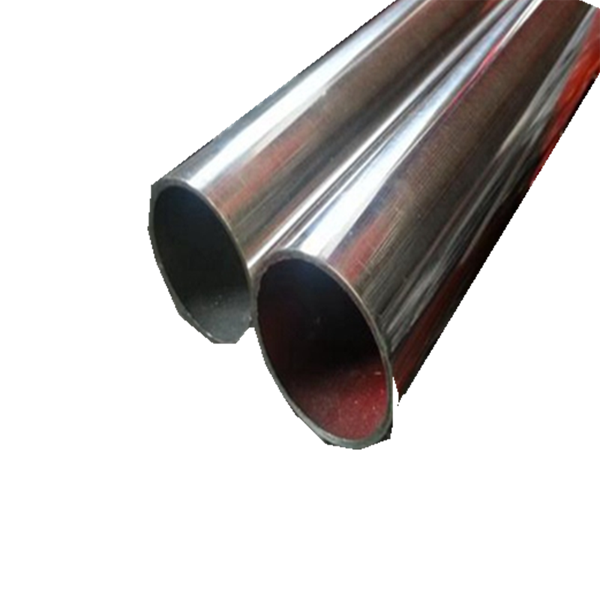

Wholesale Stainless steel Precision pipe for TP316L grade Supplier, Suppliers

1 / 3

Wholesale Stainless steel Precision pipe for TP316L grade Supplier, Suppliers

Stianless Steel Pipe /TUBE: stainless steel coil tube stainless steel tube coil stainless steel coil tubing stainless steel coil pipe stainless steel coil tube suppliers stainless steel coil tube manufacturers stainless steel pipe coil 1. : Grade :201 202 304 304l 316 316l 2. Standard:ASTM DIN JIS AISI GB 3.Surface: 2B BA NO.4 Mirror 320# 380# 400#600# 800# 4.Length :6M 11.5 M 12M or As Per your requirment. 5.OD :Round Tube 9.52-219MM Retangle :10*10-150-150 6.Inner packing :Plastic Bag 7.Outer Packing: Carton /Woven/Wooden Packaging 8.Od:+/- 0.2mm, Thickness: +/- 0.02mm

Send Inquiry

Product Description

Stainless steel pipe is one of the more standardized materials in the building and engineering industries. Stainless Steel Seamless Pipes is a hollow steel bar, a large number of pipes used for conveying fluids, such as oil, gas, water, gas, steam, heat exchanger, and mechanical machines.

Key Specifications Covered: stainless steel coil tube, stainless steel tube coil, stainless steel coil tubing, stainless steel coil pipe, stainless steel coil tube suppliers, stainless steel coil tube manufacturers, stainless steel pipe coil.

Technical Parameters & Standards

Standard ASTM A-312, ASTM A-269, ASTM A-632, ASTM A-213, DIN 17458, DIN 17456, JIS G3463, JIS G3459, JIS G3448

Material Grade 201 / 202 / 304 / 316

Outer Diameter 0.1mm - 273mm

Thickness 0.05mm - 3mm

Length 2440mm, 3050mm, 5800mm, 6000mm, 6100mm, or custom request

Tolerance a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 10%
c) Length: +/- 10mm

Surface Finishes Satin / Hairline: 180#, 320#

Polish Options 400#, 600#, 800# or Mirror surface

General Application Processed into railings, handrails, doors and windows

Packing Plastic bag / woven packing (custom packing available upon request)

Chemical & Mechanical Properties of 316L Capillary Tube

Grade	UNS	C (max)	Cr	Ni	Mo	Others
TP 316L	S31600 / S31603	0.03	17.5	13.0	2.1	0.1

⚙ Mechanical Properties

Grade	Yield Strength psi (MPa)	Tensile Strength psi (MPa)	Elongation %
TP 316L	32,000 (220)	75,000 (515)	35

🛡 Corrosion Properties

Grade	UNS	PRE¹	CPT² °F (°C)	Max H2S³ psi	CO2⁴
TP 316L	S31600 / S31603	24	95 (35)	No limit	+

Main Applications

Hydraulic pneumatic components, textile chemical fiber machinery, medical and chemical, food hygiene, instrumentation, boilers, pressure vessels, and other mechanical and electronic industries.

Pipe Dimensions Chart

Square Steel Tube (mm)	Rectangular Steel Tube (mm)	Round Steel Tube (mm)
10×10×0.6~3.0	10×20×0.6~3.0	6x0.6~1.0
15×15×0.6~3.0	20×30×0.6~3.0	12x0.6~1.5
20×20×0.6~3.0	20×40×0.6~3.0	13x0.6~1.5
25×25×0.6~3.0	25×50×0.6~3.5	16x0.6~2.0
30×30×0.6~3.5	30×50×0.6~3.5	19x0.6~3.0
40×40×0.6~3.5	40×60×0.6~3.5	20x0.6~3.0
50×50×0.6~3.5	40×80×0.6~3.5	22x0.6~3.0
60×60×0.6~3.5	60×80×1.0~6.0	25x0.6~3.0
70×70×0.6~3.5	50×100×1.0~6.0	27x0.6~3.0
75×75×0.6~3.5	60×120×1.0~6.0	32x0.6~3.0
80×80×1.0~6.0	80×120×2.0~8.0	40x0.6~3.5
100×100×2.0~8.0	80×160×2.0~8.0	38x0.6~3.0
120×120×2.0~8.0	100×150×2.0~8.0	48x0.6~3.5
150×150×2.0~8.0	100×200×2.0~8.0	60x0.6~3.5
200×200×4.0~16.0	150×250×4.0~12.0	76x0.6~3.5
250×250×4.0~16.0	200×300×4.0~16.0	89x1.0~6.0
300×300×4.0~16.0	300×400×4.0~16.0	104x1.0~6.0
400×400×4.0~16.0	300×500×4.0~16.0	114x1.0~6.0

Physical Properties of Stainless Steel Polishing Pipe

Grade	C (max)	Mn (max)	P (max)	S (max)	Si (max)	Ni	Cr	Mo	Ti	Cb+Ta
Austenitic
301	0.15	2.00	0.040	0.030	1.00	6.0–8.0	16.0–18.0	...	...	...
302	0.15	2.00	0.040	0.030	1.00	8.0–10.0	17.0–19.0	...	...	...
304	0.08	2.00	0.040	0.030	1.00	8.0–11.0	18.0–20.0	...	...	...
304L	0.035A	2.00	0.040	0.030	1.00	8.0–13.0	18.0–20.0	...	...	...
305	0.12	2.00	0.040	0.030	1.00	10.0–13.0	17.0–19.0	...	...	...
309S	0.08	2.00	0.040	0.030	1.00	12.0–15.0	22.0–24.0	...	...	...
309S-Cb	0.08	2.00	0.040	0.030	1.00	12.0–15.0	22.0–24.0	...	...	B
310S	0.08	2.00	0.040	0.030	1.00	19.0–22.0	24.0–26.0	...	...	...
316	0.08	2.00	0.040	0.030	1.00	10.0–14.0	16.0–18.0	2.0–3.0	...	...
316L	0.035A	2.00	0.040	0.030	1.00	10.0–15.0	16.0–18.0	2.0–3.0	...	...
317	0.08	2.00	0.040	0.030	1.00	11.0–14.0	18.0–20.0	3.0–4.0	...	...
321	0.08	2.00	0.040	0.030	1.00	9.0–13.0	17.0–20.0	...	C	...
330	0.15	2.00	0.040	0.030	1.00	33.0–36.0	14.0–16.0	...	...	...
347	0.08	2.00	0.040	0.030	1.00	9.0–13.0	17.0–20.0	...	...	B
429	0.12	1.00	0.040	0.030	1.00	0.50 max	14.0–16.0	...	...	...
430	0.12	1.00	0.040	0.030	1.00	0.50 max	16.0–18.0	...	...	...
430-Ti	0.10	1.00	0.040	0.030	1.00	0.075 max	16.0–19.5	...	5×C min, 0.75 max	...

Coiled Tubing / Coiled Tubes Material Grade Cross Reference

U.S.A. (AISI)	Germany (DIN)	Germany (W.N.)	France (AFNOR)	Japan (JIS)	Italy (UNI)	Sweden (SIS)	U.K. (BSI)	E.U. (EN)	Russia (GOST)
201	—	—	—	SUS 201	—	—	—	—	—
301	X 12 CrNi 17 7	1.4310	Z 12 CN 17-07	SUS 301	X 12 CrNi 1707	23 31	301S21	X 12 CrNi 17 7	—
302	X 5 CrNi 18 7	1.4319	Z 10 CN 18-09	SUS 302	X 10 CrNi 1809	23 31	302S25	X 10 CrNi 18 9	12KH18N9
303	X 10 CrNiS 18 9	1.4305	Z 10 CNF 18-09	SUS 303	X 10 CrNiS 1809	23 46	303S21	X 10 CrNiS 18 9	—
304	X 5 CrNi 18 10	1.4301	Z 6 CN 18-09	SUS 304	X 5 CrNi 1810	23 32	304S15	X 6 CrNi 18 10	08KH18N10
304 L	X 2 CrNi 18 11	1.4306	Z 2 CN 18-10	SUS 304L	X 2 CrNi 1911	23 52	304S11	X 3 CrNi 18 10	03KH18N11
309 S	—	—	—	SUS 309S	X 6 CrNi 2314	—	—	X 6 CrNi 22 13	—
310 S	X 12 CrNi 25 20	1.4842	Z 12 CN 25-20	SUS 310S	X 5 CrNi 2520	23 61	—	X 6 CrNi 25 20	10KH23N18
316	X 5 CrNiMo 17 12 2	1.4401	Z 6 CND 17-11	SUS 316	X 5 CrNiMo 1712	23 47	316S31	X 6 CrNiMo 17 12 2	—
316 L	X 2 CrNiMo 17 13 2	1.4404	Z 2 CND 17-12	SUS 316L	X 2 CrNiMo 1712	23 48	316S11	X 3 CrNiMo 17 12 2	03KH17N14M2
317 L	X 2 CrNiMo 18 16 4	1.4438	Z 2 CND 19-15	SUS 317L	X 2 CrNiMo 1815	23 67	317S12	X 3 CrNiMo 18 16 4	—
321	X 6 CrNiTi 18 10	1.4541	Z 6 CNT 18-10	SUS 321	X 6 CrNiTi 1811	23 37	321S31	X 6 CrNiTi 18 10	08KH18N10T
347	X 6 CrNiNb 18 10	1.4550	Z 6 CNNb 18-10	SUS 347	X 6 CrNiNb 1811	23 38	347S31	X 6 CrNiNb 18 10	08KH18N12B
409	X 6 CrTi 12	1.4512	Z 6 CT 12	SUH 409	X 6 CrTi 12	—	409S19	X 5 CrTi 12	—
410	X 6 Cr 13	1.4000	Z 10 C 13	SUS 410	X 12 Cr 13	23 02	410S21	X 12 Cr 13	12Kh13

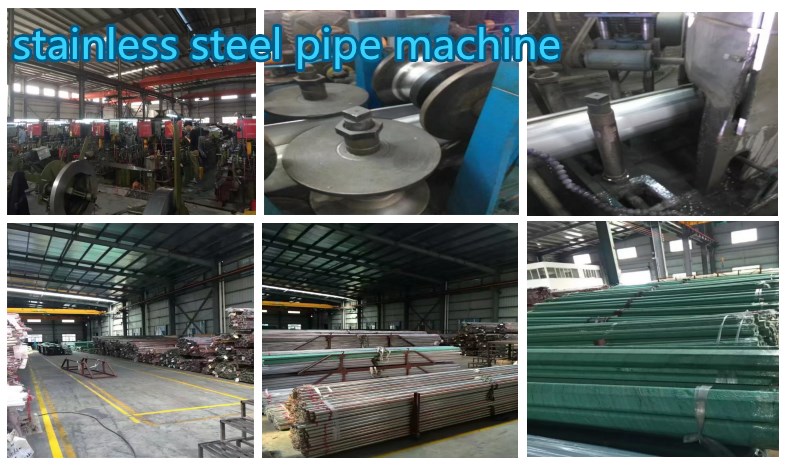

Factory Overview

Quality Advantage & Testing Protocols

Product quality for the control line in the oil and gas sector is strictly assured during both the controlled manufacturing process and via finished product testing. Typical tests include:

Non-destructive tests
Hydrostatic tests
Surface finish controls
Dimensional accuracy measurements
Flare and coning tests
Mechanical and chemical property testing

Detailed Applications of Capillary Tube

Medical device industry
Temperature-guided industrial control systems, sensor pipes, and tube thermometers
Pen care industry core tubes
Micro-tube antennas and precision small-diameter stainless steel antennas
Electronic small-diameter stainless steel capillary tubes
Jewelry needles and punch tools
Watch components
Car antennas, bar antennas, and antenna tubes
Laser engraving equipment components
Fishing gear accessories and rod tips
Food and dietary industry capillary tubes
Mobile phone and computer styluses
Heating pipe industry and oil industry systems
Printers and silent box needles
Double-melt stainless steel tubes in window couplings
Industrial small diameter precision stainless steel tubes
Precision dispensing needles
Microphone and headphone steel tube structures

Frequently Asked Questions (FAQ)

What are the primary applications of 316 stainless steel pipes?

Due to their exceptional corrosion resistance and mechanical strength, 316 stainless steel pipes are widely used in fluid transportation (oil, gas, water, steam), heat exchangers, boilers, medical devices, sensors, hydraulic pneumatic components, and instrumentation systems.

What standards do your stainless steel pipes comply with?

Our pipes are manufactured in strict compliance with major international standards, including ASTM A-312, ASTM A-269, ASTM A-632, ASTM A-213, DIN 17458, DIN 17456, JIS G3463, JIS G3459, and JIS G3448.

What are the typical size tolerances for these pipes?

The standard tolerances are: Outer Diameter: +/- 0.2mm; Thickness: +/- 10% (or as requested by the customer); Length: +/- 10mm.

What surface finishes and polishes can be provided?

We offer Satin / Hairline finishes (180#, 320#) and multiple Polished finishes (400#, 600#, 800#, or Mirror surface) depending on your design and application requirements.

What tests are performed to ensure product quality?

Every batch undergoes standard quality controls, including Non-destructive testing, Hydrostatic testing, Surface finish inspection, Dimensional accuracy measurement, Flare/coning tests, and full Chemical/Mechanical property assessments.

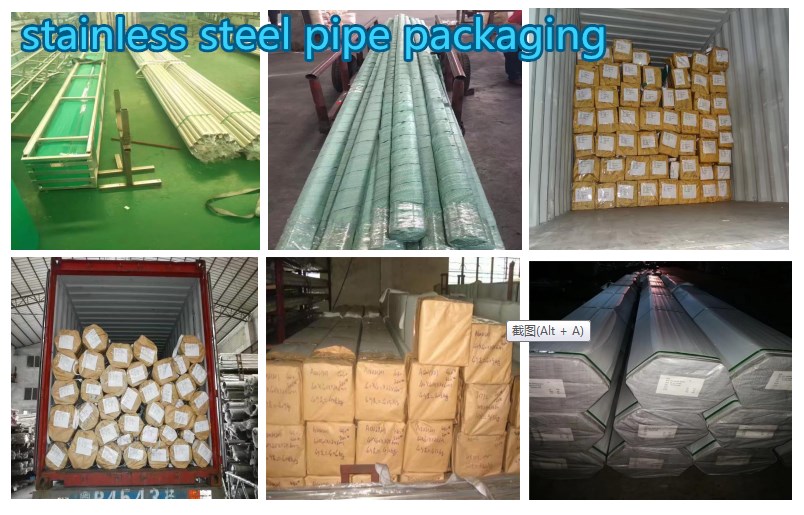

How are the tubes packaged for delivery?

Tubes are typically packed in plastic bags or woven wrapping. Specialized packaging requirements can also be accommodated based on specific customer requests.
