Wholesale 316l Capillary tube Supplier, Pricelist

roducts name :Stainless steel capillary tube Grade :201 304 304L 316 316L 904L 310s 2205 2507 625 825 Usage ynamic instrument signal tube, automatic instrument wire protection tube; Precision optical ruler line, industrial sensors, electronic equipment line protection tube; The safety protection of electrical circuit, the protection of thermal instrument capillaries and the inner support of hollow core high voltage cable Size :OD:0.25-28mm Thinkness:0.08-1.5mm Surface : bright and soft Annealed Stype: stright or coiled , Length: 600-3500M/coil without welded joint Advantage: We are a manufacturer . Lowest Price and Good Quantity Guarantee&Inspection : Chemical composition and physical properties,Eddy Current Test,Hydro Test

Send Inquiry

Product Description

Products name Stainless steel capillary tube

Grade 201, 304, 304L, 316, 316L, 904L, 310s, 2205, 2507, 625, 825

Size Range OD: 0.25 - 28mm

Thickness 0.08 - 1.5mm

Surface Finish Bright and soft Annealed

Style Straight or coiled

Length 600-3500M/coil without welded joint

Advantage Manufacturer direct pricing and guaranteed quality

Primary Usages

Dynamic instrument signal tubes
Automatic instrument wire protection tubes
Precision optical ruler lines, industrial sensors, and electronic equipment line protection
Safety protection of electrical circuits
Protection of thermal instrument capillaries
Inner support of hollow core high voltage cables

Guarantee & Inspection

Our products undergo rigorous testing processes including chemical composition and physical properties verification, Eddy Current Testing (ECT), and Hydrostatic Testing to ensure maximum quality and durability.

304 Stainless Steel Capillary Tube Size Specifications

Stainless Steel Capillary Tubing Dimensions
304 Stainless Steel Capillary Tubing
Available Grades: 316L, 304, 304L, 2205, 904L, 2507, 625, 825 (MOQ: 500kgs)
0.25*0.08	1.4*0.4	2.3*0.2	3.2*0.25	4.5*0.7	6*0.45	8*0.3	11*0.5	0.8*0.2	10*1
0.3*0.1	1.5*0.1	2.3*0.25	3.2*0.3	4.5*0.75	6*0.5	8*0.4	11*1	0.85*0.175	12*0.5
0.4*0.1	1.5*0.125	2.3*0.3	3.2*0.35	4.5*0.8	6*0.6	8*0.45	11*1.5	1.1*0.2	12*1
0.5*0.1	1.5*0.15	2.4*0.15	3.2*0.4	4.5*0.9	6*0.7	8*0.5	11*2	1.1*0.3	12*1.5
0.5*0.125	1.5*0.2	2.4*0.2	3.2*0.5	4.5*1	6*0.8	8*0.6	11.1*0.4	1.2*0.135	12*2.0
0.5*0.15	1.5*0.25	2.4*0.25	3.2*0.6	4.7*0.2	6*0.9	8*0.7	12*0.2	1.6*0.25	12.8*1.6
0.6*0.1	1.5*0.3	2.4*0.3	3.2*0.8	4.7*0.25	6*1.0	8*0.8	12*0.25	1.9*0.1	14*0.5
0.6*0.125	1.5*0.35	2.4*0.4	3.4*0.5	4.7*0.3	6*1.2	8*0.9	12*0.3	2*0.3	14*1.5
0.6*0.15	1.5*0.4	2.4*0.5	3.5*0.15	4.8*0.125	6*1.25	8*1	12*0.4	2*0.4	14*2.0
0.63*0.15	1.5*0.45	2.4*0.6	3.5*0.2	4.8*0.2	6*1.5	8*1.2	12*0.5	2*0.5	15*0.5
0.7*0.1	1.5*0.5	2.4*0.7	3.5*0.25	4.8*0.25	6*2	8*1.5	12*1	2*0.6	15*1.5
0.7*0.125	1.6*0.1	2.4*0.75	3.5*0.3	4.8*0.3	6.35*0.3	8*2	12.3*0.4	2.5*0.25	15*2
0.7*0.15	1.6*0.125	2.4*0.8	3.5*0.4	4.8*0.5	6.35*0.5	8*2.5	12.7*0.3	2.5*0.3	16*0.5
0.7*0.2	1.6*0.15	2.5*0.1	3.5*0.5	5*0.1	6.35*0.7	8.5*0.2	13*0.5	2.5*0.5	16*1.0
0.8*0.1	1.6*0.2	2.5*0.15	3.5*0.55	5*0.15	6.35*1.0	8.5*0.25	13*1	3*0.5	16*1.5
0.8*0.125	1.6*0.25	2.5*0.2	3.5*0.7	5*0.2	6.4*0.225	8.5*0.3	13*1.5	3*0.8	16*2.0
0.8*0.15	1.6*0.3	2.5*0.25	3.5*0.8	5*0.25	6.5*0.2	8.5*0.4	13*2	3*1	17*1.5
0.8*0.2	1.6*0.35	2.5*0.3	3.5*1.0	5*0.3	6.5*0.25	8.5*0.5	13.5*0.5	4*0.3	17*2.0
0.8*0.25	1.6*0.4	2.5*0.35	3.5*1.15	5*0.35	6.5*0.3	8.5*1.0	14*0.25	4*0.5	18*1.5
0.9*0.1	1.65*0.3	2.5*0.4	3.6*0.15	5*0.4	6.5*0.4	8.5*1.3	14*0.3	4*1	18*2.0
0.9*0.15	1.7*0.1	2.5*0.45	3.7*0.15	5*0.45	6.5*0.5	8.5*1.5	14*0.5	4.8*0.15	19*1.5
0.9*0.2	1.7*0.15	2.5*0.5	3.7*0.2	5*0.5	6.5*0.6	8.9*1.4	14*1	5*0.5	19*2.0
0.9*0.25	1.7*0.2	2.5*0.6	3.7*0.5	5*0.6	6.5*0.7	9*0.2	14.2*0.2	5*1	20*1.0
1.0*0.1	1.7*0.25	2.5*0.65	3.8*0.2	5*0.7	6.5*0.8	9*0.25	15*0.3	5.5*1.75	20*1.5
1.0*0.125	1.7*0.3	2.5*0.7	3.8*0.25	5*0.75	6.5*0.9	9*0.3	15*0.5	6*0.15	20*2.0
1.0*0.15	1.8*0.1	2.5*0.85	3.8*0.3	5*0.8	6.5*1	9*0.4	15*1	6*0.25	20*2.5
1.0*0.2	1.8*0.15	2.6*0.15	3.9*0.2	5*0.9	6.5*1.3	9*0.5	16*0.5	6*0.3	21*1.0
1.0*0.25	1.8*0.2	2.6*0.2	4*0.1	5*1.0	6.7*0.5	9*0.6	16*1	6*0.5	22*1.5
1.0*0.3	1.8*0.25	2.6*0.3	4*0.15	5*1.2	6.8*0.15	9*0.7	17*0.5	6*0.85	25*1.5
1.0*0.35	1.8*0.3	2.6*0.5	4*0.2	5*1.5	7*0.15	9*0.8	17*1	6*1	28.6*1.5
1.1*0.1	1.8*0.35	2.65*0.15	4*0.25	5.2*0.2	7*0.2	9*0.9	18*0.5	7*0.3
1.1*0.12	1.8*0.4	2.7*0.15	4*0.3	5.2*0.3	7*0.25	9*1	18*1.0	7*0.5
1.1*0.125	1.9*0.1	2.7*0.2	4*0.35	5.2*0.45	7*0.3	9*1.5	19*0.5	7*1.0
1.1*0.15	1.9*0.15	2.7*0.3	4*0.4	5.2*0.5	7*0.35	9*2	19*1.0	8*0.5
1.1*0.2	1.9*0.2	2.8*0.15	4*0.45	5.4*0.2	7*0.4	9.5*0.25	20*0.5	8*1
1.1*0.25	1.9*0.25	2.8*0.2	4*0.5	5.45*0.275	7*0.45	9.5*0.3	21*0.5	9*0.5
1.2*0.1	2*0.1	2.8*0.25	4*0.6	5.5*0.15	7*0.5	9.5*0.5		9*1
1.2*0.12	2*0.125	2.8*0.3	4*0.7	5.5*0.2	7*0.6	9.5*0.7		10*0.5
1.2*0.125	2*0.15	2.8*0.5	4*0.75	5.5*0.25	7*0.7	9.5*1		10*1
1.2*0.15	2*0.2	2.8*0.7	4*0.8	5.5*0.3	7*0.8	9.5*1.5
1.2*0.2	2*0.25	2.9*0.3	4*0.9	5.5*0.4	7*0.9	10*0.2
1.2*0.25	2*0.3	3*0.1	4*1.0	5.5*0.5	7*1.0	10*0.25
1.2*0.3	2*0.35	3*0.15	4*1.25	5.5*0.6	7*1.2	10*0.3
1.2*0.4	2*0.4	3*0.2	4*1.5	5.5*0.7	7*1.5	10*0.4
1.3*0.1	2*0.45	3*0.25	4.2*0.2	5.5*0.75	7*2	10*0.5
1.3*0.12	2*0.5	3*0.3	4.2*0.25	5.5*0.8	7.5*0.2	10*0.6
1.3*0.125	2*0.6	3*0.35	4.2*0.3	5.5*1	7.5*0.25	10*0.7
1.3*0.135	2*0.7	3*0.4	4.2*0.4	5.6*0.85	7.5*0.3	10*0.8
1.3*0.15	2.1*0.15	3*0.5	4.2*0.5	5.7*0.2	7.5*0.4	10*0.9
1.3*0.175	2.1*0.2	3*0.6	4.3*0.9	5.7*0.3	7.5*0.5	10*1.0
1.3*0.2	2.1*0.25	3*0.7	4.4*0.45	5.8*0.15	7.5*0.6	10*1.5
1.3*0.25	2.1*0.65	3*0.75	4.4*0.5	5.8*0.2	7.5*0.7	10*2
1.3*0.3	2.2*0.15	3*0.8	4.5*0.15	5.8*0.5	7.5*0.8	10*2.5
1.4*0.1	2.2*0.2	3*0.9	4.5*0.2	5.8*0.7	7.5*0.9	10.3*0.2
1.4*0.15	2.2*0.25	3*1.0	4.5*0.25	6*0.15	7.5*1.0	10.8*0.2			soft bright
1.4*0.2	2.2*0.3	3*1.1	4.5*0.3	6*0.2	7.8*0.5	11*0.2			1.5*0.15
1.4*0.25	2.2*0.5	3*1.2	4.5*0.4	6*0.25	8*0.15	11*0.25			2*0.5
1.4*0.3	2.3*0.125	3.2*0.15	4.5*0.5	6*0.3	8*0.2	11*0.3			2.5*0.5
1.4*0.35	2.3*0.15	3.2*0.2	4.5*0.6	6*0.4	8*0.25	11*0.4			5*0.5

Manufacturing and Quality Advantage

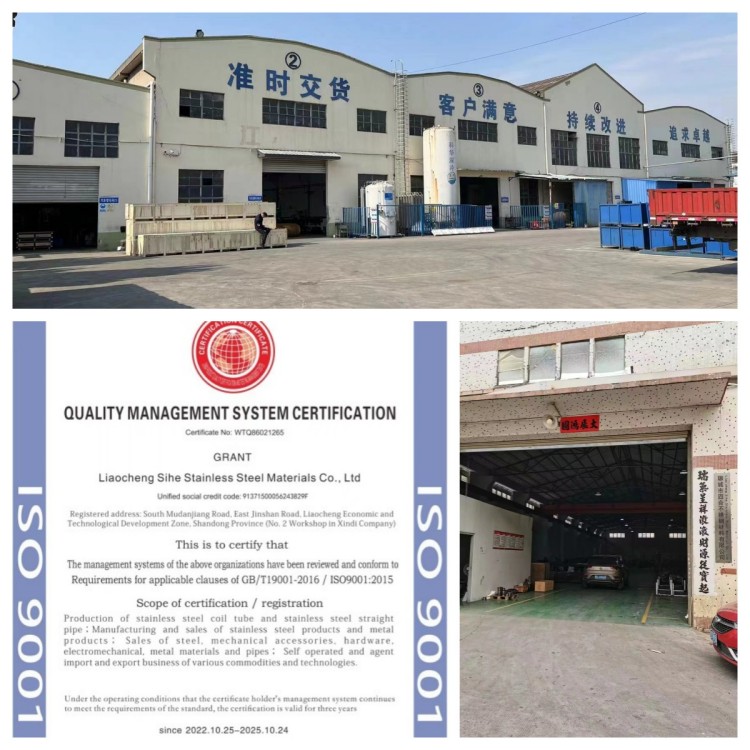

Stainless Steel Capillary Tube Quality Control

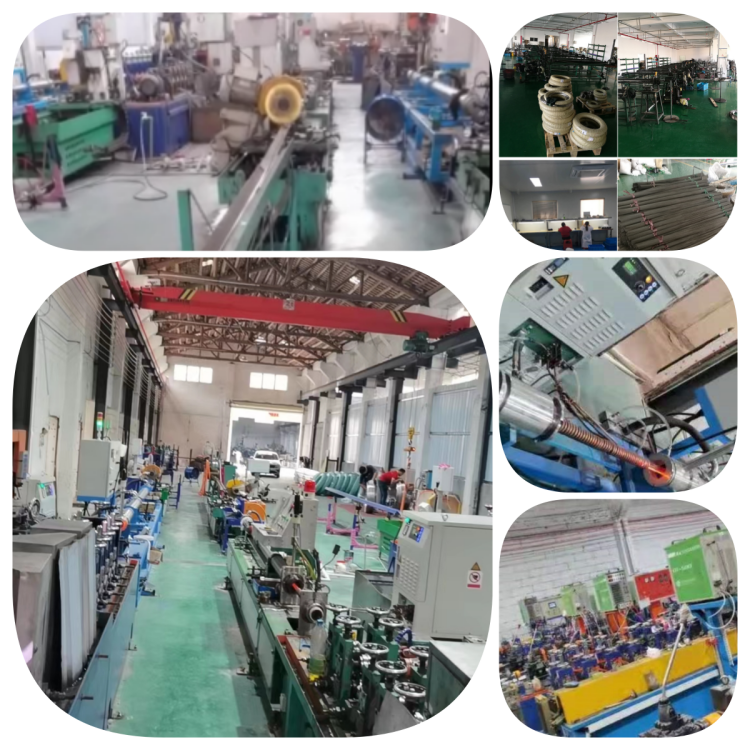

Stainless Steel Capillary Tube Manufacturing Process

Products Display

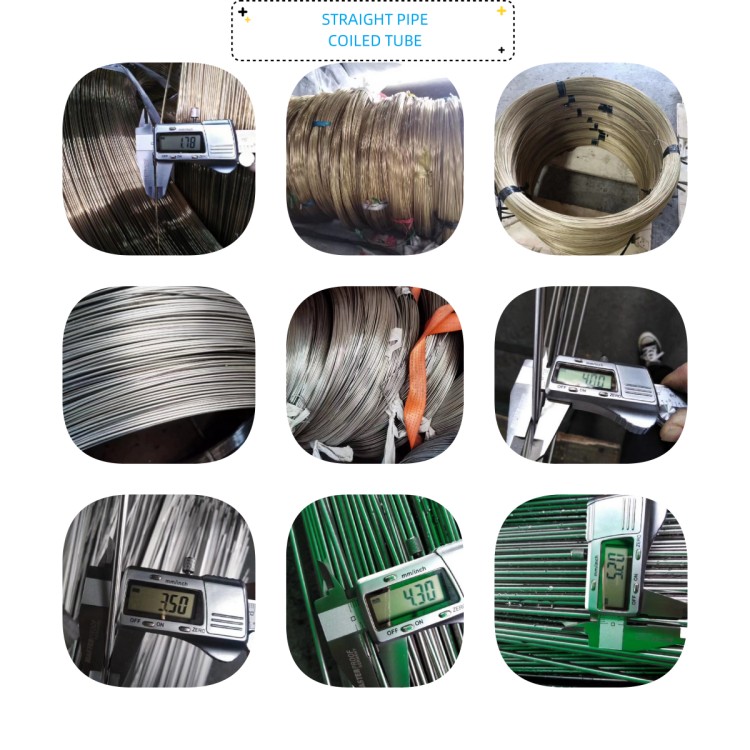

316 stainless steel capillary tubing display

Stainless Steel Grade Standards

American Standard Material: TP304, TP304L, TP304H, TP321, TP321H, TP316L, TP316SS, TP316Ti, TP347, TP347H, TP317L, TP309S, TP310S, 904L

Russian Standard Material: 08X18H10, 03X18H11, 10X17H13M2T, 03X17H13M2, 12X18H10T, 08X18H10T, 08X18H12B

German Standard Material: 1.4301, 1.4306, 1.4541, 1.4404, 1.4571, 1.4550

Japanese Standard Material: SUS304, SUS304L, SUS321, SUS316L, SUS316Ti, SUS347, SUS800, SUS840

Double-Grade Material: 304/304L, 316/316L, 321/321H, 347/347H

Super Duplex Steel: 2205, 2304, S31803, S32750

Nickel Alloys: Inconel 600, Inconel 601, Inconel 625, Inconel 725, Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 825, Incoloy 901, Incoloy 925, Incoloy 926, etc.

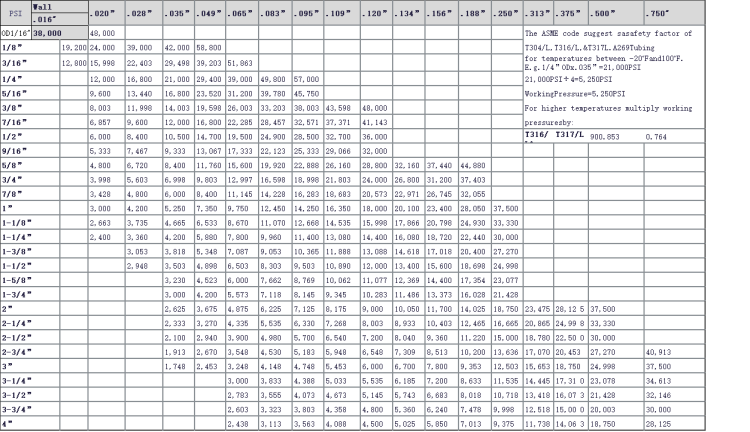

SS316L Capillary Tubing Specifications and Pressure Rating

Stainless Steel Capillary Tubing Chemical Composition

GRADES	UNS	C	Mn	P	S	Si	Cr	Ni	Mo	Ti	Nb	N
TP304	S30400	0.08	2	0.045	0.03	1	18.0-20.0	8.0-11.0	-	-	-	-
TP304L	S30403	0.035	2	0.045	0.03	1	18.0-20.0	8.0-13.0	-	-	-	-
TP316	S31600	0.08	2	0.045	0.03	1	16.0-18.0	11.0-14.0	2.0-3.0	-	-	-
TP316L	S31603	0.035	2	0.045	0.03	1	16.0-18.0	10.0-14.0	2.0-3.0	-	-	-

Stainless Steel Capillary Tubing Mechanical Properties

Material	Heat Treatment	Temperature Min.	Tensile Strength	Yield Strength	Elongation %, Min
Material	Solution	ºF (ºC)	Ksi (MPa), Min.	Ksi (MPa), Min.	Elongation %, Min
TP304	Solution	1900 (1040)	75 (515)	30 (205)	35
TP304L	Solution	1900 (1040)	70 (485)	25 (170)	35
TP316	Solution	1900 (1040)	75 (515)	30 (205)	35
TP316L	Solution	1900 (1040)	70 (485)	25 (170)	35

Stainless Steel Capillary Tubing Equivalent Grades

GRADE	UNS NO	DIN/WERKSTOFF
Stainless Steel Capillary Tube 304	S30400	1.4301
Stainless Steel Capillary Tube 304L	S30403	1.4306
Stainless Steel Capillary Tube 316	S31600	1.4436
Stainless Steel Capillary Tube 316L	S31603	1.4404

Related Capillary Tube Stock Searches

304 capillary tube 316L grade Downhole Chemical Injection Tubing Stainless steel Capillary Pipe trader stainless steel Capillary Pipe astm stainless steel capillary tubing cutter hplc stainless steel capillary tubing cutting stainless steel capillary tubing stainless steel 1/16 in. capillary tubing weight of stainless steel Capillary pipe per foot weight of stainless steel Capillary pipe stainless steel Capillary pipe for sale stainless steel Capillary Tube weight per foot Stainless Steel Capillary pipe Suppliers stainless steel Capillary tubing grades 316l stainless steel Capillary pipe hs code stainless steel Capillary pipe weight chart india stainless steel Capillary tubing metric stainless steel Capillary tubing properties stainless steel Capillary pipe section properties stainless steel Capillary Tube supplier in china exporter of stainless steel Capillary pipe 304 stainless steel Capillary pipes stainless steel Capillary pipes distributor stainless steel Capillary Tube manufacturer in china ss seamless Capillary Tube stockholder in China Stainless Steel Capillary Tube Suppliers seamless Capillary Pipe exporter

Frequently Asked Questions (FAQ)

Q1: What sizes and wall thicknesses do you offer for stainless steel capillary tubes?

Our capillary tubes are available in outer diameters (OD) ranging from 0.25mm to 28mm, and wall thicknesses ranging from 0.08mm to 1.5mm to meet precise industrial requirements.

Q2: Which stainless steel grades are available for capillary tubing?

We manufacture capillary tubes in a wide array of grades including 201, 304, 304L, 316, 316L, 904L, 310s, duplex steels (2205, 2507), and high-performance nickel alloys (Inconel 625, Incoloy 825).

Q3: Are the capillary tubes provided in coils or straight lengths?

We offer both straight and coiled options. Coiled tubes can be manufactured in continuous lengths ranging from 600 to 3500 meters without any welded joints.

Q4: What inspections are carried out to ensure the quality of the tubing?

All products undergo comprehensive quality checks, including chemical composition and physical properties testing, Eddy Current Testing (ECT), and Hydrostatic Testing.

Q5: What are the main industrial applications of stainless steel capillary tubes?

They are commonly used for dynamic instrument signal transmission, automatic instrument wire protection, precision optical systems, industrial sensors, electrical circuit insulation, and core support for high-voltage cables.

Q6: What surface conditions can you provide?

Our standard supply condition for stainless steel capillary tubes is a bright and soft annealed finish, ensuring smooth surface quality and ease of installation.
