Stainless steel pipe is one of the more standardized materials in the building and engineering industries. Stainless Steel Seamless Pipes is a hollow steel bar, a large number of pipes used for conveying fluids, such as oil, gas, water, gas, steam, heat exchanger, and mechanical machine.
Specification
stainless steel coil tube
stainless steel tube coil
stainless steel coil tubing
stainless steel coil pipe
stainless steel coil tube suppliers
stainless steel coil tube manufacturers
stainless steel pipe coil
Standard
ASTM A-312, ASTM A-269, ASTM A-632, ASTM A-213, DIN 17458, DIN17456, JIS G3463, JIS G3459, JIS G3448
Material Grade
201 / 202 / 304 / 316
Outer Diameter
0.1mm - 8mm
Thickness
0.05mm - 2.1mm
Length
2440mm, 3050mm, 5800mm, 6000mm, 6100mm or as customer request
Tolerance
a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 10% or as customer request
c) Length: +/- 10mm
Processed into railings, handrails, doors and Windows
Packing
Plastic bag / woven packing
Chemical Composition (Grade 304, 304L, 310S, 316, 316L)
Grade
C(Max)
Mn(Max)
P(Max)
S(Max)
Si(Max)
Cr
Ni
Mo
N(Max)
Cu/Others
304
0.08
2
0.045
0.03
1
18.00-20.00
8.00-10.50
-
0.1
-
304L
0.03
2
0.045
0.03
1
18.00-20.00
8.00-12.00
-
0.1
-
310S
0.08
2
0.045
0.03
1.5
24.00-26.00
19.00-22.00
-
-
-
316
0.08
2
0.045
0.03
1
16.00-18.00
10.00-14.00
2.00-3.00
-
-
316L
0.03
2
0.045
0.03
1
16.00-18.00
10.00-14.00
2.00-3.00
0.1
-
Element Composition (201, 202, 304, 316, S31803, S32750)
Element
201
202
304
316
S31803
S32750
C
≤0.15
≤0.15
≤0.08
≤0.08
≤0.030
≤0.030
Si
≤1.00
≤1.00
≤1.00
≤1.00
≤1.00
≤0.80
Mn
5.5-7.5
7.5-10.0
≤2.00
≤2.00
≤2.00
≤1.20
P
≤0.060
≤0.060
≤0.045
≤0.045
≤0.030
≤0.035
S
≤0.030
≤0.030
≤0.030
≤0.030
≤0.020
≤0.020
Cr
16-18
17-19
18-20
16-18
21-23
21-23
Ni
3.5-5.5
4.0-6.0
8.0-10.5
10.0-14.0
4.5-6.5
6.0-8.0
Mo
-
-
-
2.0-3.0
2.5-3.5
3.0-5.0
N
≤0.25
≤0.25
-
-
0.08-0.2
0.24-0.32
Cu
-
-
-
-
-
≤0.50
Mechanical Properties
Material Item
201
202
304
316
S31803
S32750
Tensile Strength (MPa)
≥655
≥620
≥515
≥515
≥620
≥800
Yield Strength (MPa)
≥260
≥310
≥205
≥205
≥450
≥550
Elongation (%)
≥35
≥35
≥35
≥35
≥25
≥15
Hardness (HV)
≤230
≤230
≤200
≤200
≤303
≤323
Other Requirements
✔Marking: Material grade, standard, specification, heat no.
✔Surface Treatment: Bright annealed, polished outside and inside surface.
✔Package: Knitting strip bundle, wooden box or steel box.
✔Mill Test Certificate: According to EN 10204 3.2.
✔Inspection: Third party inspection, or by clients.
Standard Sizes: Square, Rectangular, and Round Steel Tubes
Square Steel Tube (mm)
Rectangular Steel Tube (mm)
Round Steel Tube (mm)
10×10×0.6~3.0
10×20×0.6~3.0
6x0.6~1.0
15×15×0.6~3.0
20×30×0.6~3.0
12x0.6~1.5
20×20×0.6~3.0
20×40×0.6~3.0
13x0.6~1.5
25×25×0.6~3.0
25×50×0.6~3.5
16x0.6~2.0
30×30×0.6~3.5
30×50×0.6~3.5
19x0.6~3.0
40×40×0.6~3.5
40×60×0.6~3.5
20x0.6~3.0
50×50×0.6~3.5
40×80×0.6~3.5
22x0.6~3.0
60×60×0.6~3.5
60×80×1.0~6.0
25x0.6~3.0
70×70×0.6~3.5
50×100×1.0~6.0
27x0.6~3.0
75×75×0.6~3.5
60×120×1.0~6.0
32x0.6~3.0
80×80×1.0~6.0
80×120×2.0~8.0
40x0.6~3.5
100×100×2.0~8.0
80×160×2.0~8.0
38x0.6~3.0
120×120×2.0~8.0
100×150×2.0~8.0
48x0.6~3.5
150×150×2.0~8.0
100×200×2.0~8.0
60x0.6~3.5
200×200×4.0~16.0
150×250×4.0~12.0
76x0.6~3.5
250×250×4.0~16.0
200×300×4.0~16.0
89x1.0~6.0
300×300×4.0~16.0
300×400×4.0~16.0
104x1.0~6.0
400×400×4.0~16.0
300×500×4.0~16.0
114x1.0~6.0
Physical Properties of Stainless Steel Polishing Pipe
Grade
Composition, %
Carbon, max
Manganese, max
Phosphorus, max
Sulfur, max
Silicon, max
Nickel
Chromium
Molybdenum
Titanium
Columbium + Tantalum
Austenitic
301
0.15
2.00
0.040
0.030
1.00
6.0–8.0
16.0–18.0
...
...
...
302
0.15
2.00
0.040
0.030
1.00
8.0–10.0
17.0–19.0
...
...
...
304
0.08
2.00
0.040
0.030
1.00
8.0–11.0
18.0–20.0
...
...
...
304L
0.035A
2.00
0.040
0.030
1.00
8.0–13.0
18.0–20.0
...
...
...
305
0.12
2.00
0.040
0.030
1.00
10.0–13.0
17.0–19.0
...
...
...
309S
0.08
2.00
0.040
0.030
1.00
12.0–15.0
22.0–24.0
...
...
. . .
309S-Cb
0.08
2.00
0.040
0.030
1.00
12.0–15.0
22.0–24.0
...
...
B
310S
0.08
2.00
0.040
0.030
1.00
19.0–22.0
24.0–26.0
...
...
...
316
0.08
2.00
0.040
0.030
1.00
10.0–14.0
16.0–18.0
2.0–3.0
...
...
316L
0.035A
2.00
0.040
0.030
1.00
10.0–15.0
16.0–18.0
2.0–3.0
...
...
317
0.08
2.00
0.040
0.030
1.00
11.0–14.0
18.0–20.0
3.0–4.0
...
...
321
0.08
2.00
0.040
0.030
1.00
9.0–13.0
17.0–20.0
...
C
...
330
0.15
2.00
0.040
0.030
1.00
33.0–36.0
14.0–16.0
...
...
...
347
0.08
2.00
0.040
0.030
1.00
9.0–13.0
17.0–20.0
...
...
B
429
0.12
1.00
0.040
0.030
1.00
0.50 max
14.0–16.0
...
...
...
430
0.12
1.00
0.040
0.030
1.00
0.50 max
16.0–18.0
...
...
...
430-Ti
0.10
1.00
0.040
0.030
1.00
0.075 max
16.0–19.5
...
5 × C min, 0.75 max
...
Stainless Steel Coiled Tubing / Coiled Tubes Material Grade Cross-Reference
U.S.A.
GERMANY (DIN 17006)
GERMANY (W.N. 17007)
FRANCE (AFNOR)
JAPAN (JIS)
ITALY (UNI)
SWEDEN (SIS)
U.K. (BSI)
E.U. (EURONORM)
AISI
DIN 17006
W.N. 17007
AFNOR
JIS
UNI
SIS
BSI
EURONORM
201
-
-
-
SUS 201
-
-
-
-
301
X 12 CrNi 17 7
1.4310
Z 12 CN 17-07
SUS 301
X 12 CrNi 1707
23 31
301S21
X 12 CrNi 17 7
302
X 5 CrNi 18 7
1.4319
Z 10 CN 18-09
SUS 302
X 10 CrNi 1809
23 31
302S25
X 10 CrNi 18 9
303
X 10 CrNiS 18 9
1.4305
Z 10 CNF 18-09
SUS 303
X 10 CrNiS 1809
23 46
303S21
X 10 CrNiS 18 9
303 Se
-
-
Z 10 CNF 18-09
SUS 303 Se
X 10 CrNiS 1809
-
303S41
-
304
X 5 CrNi 18 10 / X 5 CrNi 18 12
1.4301 / 1.4303
Z 6 CN 18-09
SUS 304
X 5 CrNi 1810
23 32
304S15 / 304S16
X 6 CrNi 18 10
304 N
-
-
-
SUS 304N1
X 5 CrNiN 1810
-
-
-
304 H
-
-
-
SUS F 304H
X 8 CrNi 1910
-
-
-
304 L
X 2 CrNi 18 11
1.4306
Z 2 CN 18-10
SUS 304L
X 2 CrNi 1911
23 52
304S11
X 3 CrNi 18 10
-
X 2 CrNiN 18 10
1.4311
Z 2 CN 18-10-Az
SUS 304LN
X 2 CrNiN 1811
23 71
-
-
305
-
-
Z 8 CN 18-12
SUS 305
X 8 CrNi 1812
23 33
305S19
X 8 CrNi 18 12
-
-
-
Z 6 CNU 18-10
SUS XM7
-
-
-
X 6 CrNiCu 18 10 4 Kd
309
X 15 CrNiS 20 12
1.4828
Z 15 CN 24-13
SUH 309
X 16 CrNi 2314
-
309S24
X 15 CrNi 23 13
309 S
-
-
-
SUS 309S
X 6 CrNi 2314
-
-
X 6 CrNi 22 13
310
X 12 CrNi 25 21
1.4845
-
SUH 310
X 22 CrNi 2520
-
310S24
-
310 S
X 12 CrNi 25 20
1.4842
Z 12 CN 25-20
SUS 310S
X 5 CrNi 2520
23 61
-
X 6 CrNi 25 20
314
X 15 CrNiSi 25 20
1.4841
Z 12 CNS 25-20
-
X 16 CrNiSi 2520
-
-
X 15 CrNiSi 25 20
316
X 5 CrNiMo 17 12 2
1.4401
Z 6 CND 17-11
SUS 316
X 5 CrNiMo 1712
23 47
316S31
X 6 CrNiMo 17 12 2
316
X 5 CrNiMo 17 13 3
1.4436
Z 6 CND 17-12
SUS 316
X 5 CrNiMo 1713
23 43
316S33
X 6 CrNiMo 17 13 3
316 F
X 12 CrNiMoS 18 11
1.4427
-
-
-
-
-
-
316 N
-
-
-
SUS 316N
-
-
-
-
316 H
-
-
-
SUS F 316H
X 8 CrNiMo 1712
-
-
-
316 L
X 2 CrNiMo 17 13 2
1.4404
Z 2 CND 17-12
SUS 316L
X 2 CrNiMo 1712
23 48
316S11
X 3 CrNiMo 17 12 2
-
X 2 CrNiMoN 17 12 2
1.4406
Z 2 CND 17-12-Az
SUS 316LN
X 2 CrNiMoN 1712
-
-
-
316 L
X 2 CrNiMo 18 14 3
1.4435
Z 2 CND 17-13
-
X 2 CrNiMo 1713
23 53
316S13
X 3 CrNiMo 17 13 3
-
X 2 CrNiMoN 17 13 3
1.4429
Z 2 CND 17-13-Az
-
X 2 CrNiMoN 1713
23 75
-
-
-
X 6 CrNiMoTi 17 12 2
1.4571
Z 6 CNDT 17-12
-
X 6 CrNiMoTi 1712
23 50
320S31
X 6 CrNiMoTi 17 12 2
-
X 10 CrNiMoTi 18 12
1.4573
-
-
X 6 CrNiMoTi 1713
-
320S33
X 6 CrNiMoTi 17 13 3
-
X 6 CrNiMoNb 17 12 2
1.4580
Z 6 CNDNb 17-12
-
X 6 CrNiMoNb 1712
-
-
X 6 CrNiMoNb 17 12 2
-
X 10 CrNiMoNb 18 12
1.4583
-
-
X 6 CrNiMoNb 1713
-
-
X 6 CrNiMoNb 17 13 3
317
-
-
-
SUS 317
X 5 CrNiMo 1815
23 66
317S16
-
317 L
X 2 CrNiMo 18 16 4
1.4438
Z 2 CND 19-15
SUS 317L
X 2 CrNiMo 1815
23 67
317S12
X 3 CrNiMo 18 16 4
330
X 12 NiCrSi 36 16
1.4864
Z 12NCS 35-16
SUH 330
-
-
-
-
321
X 6 CrNiTi 18 10 / X 12 CrNiTi 18 9
1.4541 / 1.4878
Z 6 CNT 18-10
SUS 321
X 6 CrNiTi 1811
23 37
321S31
X 6 CrNiTi 18 10
321 H
-
-
-
SUS 321H
X 8 CrNiTi 1811
-
321S20
-
329
X 8 CrNiMo 27 5
1.4460
-
SUS 329J1
-
23 24
-
-
347
X 6 CrNiNb 18 10
1.4550
Z 6 CNNb 18-10
SUS 347
X 6 CrNiNb 1811
23 38
347S31
X 6 CrNiNb 18 10
347 H
-
-
-
SUS F 347H
X 8 CrNiNb 1811
-
-
-
904L
-
1.4939
Z 12 CNDV 12-02
-
-
-
-
-
UNS31803
X 2 CrNiMoN 22 5
1.4462
-
-
-
-
-
-
UNS32760
X 3 CrNiMoN 25 7
1.4501
Z 3 CND 25-06Az
-
-
-
-
-
403
X 6 Cr 13 / X 10 Cr 13
1.4000 / 1.4006
Z 12 C 13
SUS 403
X 12 Cr 13
23 02
403S17
X 10 Cr 13 / X 12 Cr 13
405
X 6 CrAl 13
1.4002
Z 6 CA 13
SUS 405
X 6 CrAl 13
-
405S17
X 6 CrAl 13
-
X 10 CrAl 7
1.4713
Z 8 CA 7
-
-
-
-
X 10 CrAl 7
-
X 10 CrAl 13
1.4724
-
-
X 10 CrAl 12
-
-
-
-
X 10 CrAl 18
1.4742
-
-
-
-
-
X 10 CrSiAl 18
409
X 6 CrTi 12
1.4512
Z 6 CT 12
SUH 409
X 6 CrTi 12
-
409S19
X 5 CrTi 12
410
X 6 Cr 13 / X 10 Cr 13
1.4000 / 1.4006
Z 10 C 13
SUS 410
X 12 Cr 13
23 02
410S21
X 12 Cr 13
410 S
X 6 Cr 13
1.4000
Z 6 C 13
SUS 410S
X 6 Cr 13
23 01
403S17
X 6 Cr 13
Factory Production
Quality Advantage
The quality of our products for the control line in oil and gas sector is assured not just during the controlled manufacturing process but also by way of finished product testing. Typical tests include:
🗹Non-destructive tests
🗹Hydrostatic tests
🗹Surface finish controls
🗹Dimensional accuracy measurements
🗹Flare and coning tests
🗹Mechanical and chemical property testing
Application Capillary Tube
➤Medical device industry
➤Temperature-guided industrial temperature control, sensors used pipe, tube thermometer
➤Pens care industry core tube
➤Micro-tube antenna, various types of small precision stainless steel antenna
➤With a variety of electronic small-diameter Stainless steel capillary
➤Jewelry needle punch
➤Watches, picture
➤Car antenna tube, bar antennas using tubes, antenna tube
➤Laser engraving equipment to use stainless steel tube
➤Fishing gear, accessories, Yugan out with possession of
➤Diet with stainless steel capillary
➤All types of mobile phone stylus, a computer stylus
➤Heating pipe industry, oil industry
➤Printers, silent box needle
➤Pull a double-melt stainless steel tube used in window-coupled
➤A variety of industrial small diameter Precision stainless steel tubes
➤Precision dispensing with stainless steel needles
➤Microphone, headphones and microphone to use stainless steel tube, and so on

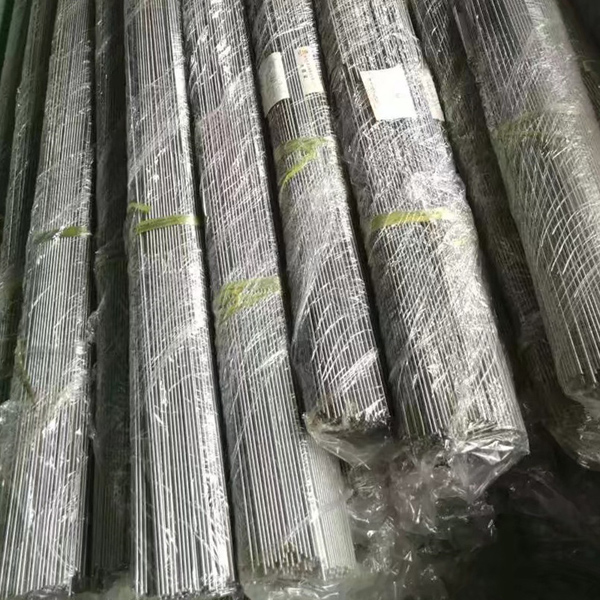

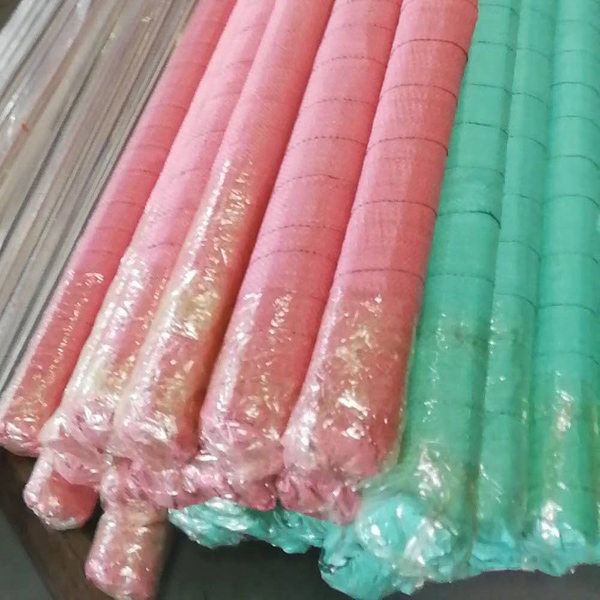

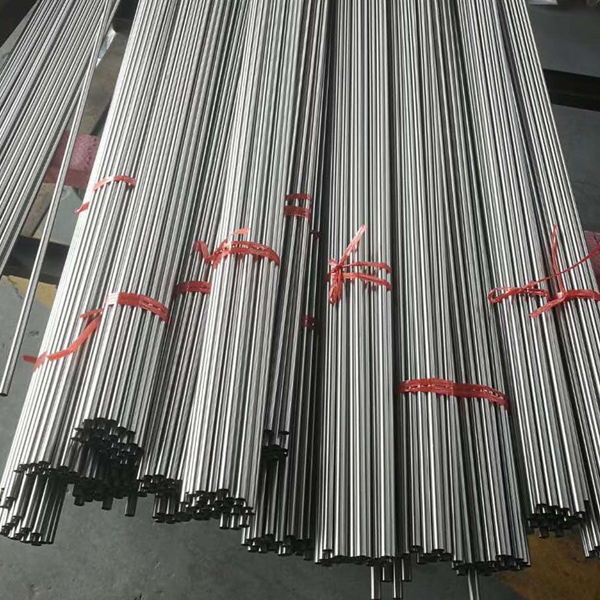

Product Packaging & Variety
Frequently Asked Questions (FAQ)
What are the primary applications for 304 grade precision stainless steel pipes?
304 grade precision pipes are widely used in building, engineering, and manufacturing industries. They are ideal for conveying fluids (oil, gas, water, steam), heat exchangers, mechanical machinery, temperature sensors, medical devices, antennas, and various precision structural systems.
What size ranges and tolerances are available for these precision tubes?
We support outer diameters from 0.1mm to 8mm and thicknesses from 0.05mm to 2.1mm. Standard length configurations include 2440mm, 3050mm, 5800mm, 6000mm, and 6100mm, with custom sizes available. The typical tolerance range is +/- 0.2mm for outer diameters and +/- 10% for wall thickness.
What surface finish configurations can be ordered?
Tubes can be finished with Satin/Hairline (180#, 320#) or polished (400#, 600#, 800#) to a mirror finish. Bright annealed treatments are also available for both interior and exterior surfaces.
How is the quality of these precision tubes verified?
Quality is strictly monitored via a series of finished-product tests, including Non-destructive testing, Hydrostatic tests, surface finish controls, dimensional accuracy measurements, flare and coning tests, and comprehensive mechanical and chemical property analyses.
What standards do these stainless steel pipes comply with?
The precision pipes comply with a wide variety of global standards, including ASTM A-312, ASTM A-269, ASTM A-632, ASTM A-213, DIN 17458, DIN 17456, JIS G3463, JIS G3459, and JIS G3448.
How are the tubes packaged for delivery?
To prevent damage during transit, the pipes are packaged using plastic bags, woven packing, knitting strip bundles, wooden boxes, or steel boxes depending on transport demands and material specifications.
Sihe Steel
