Stainless steel Capillary Tubes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general, a stainless steel Capillary Tube is manufactured according to current standards API, ASTM, and ASME. If required for special projects, large diameter Capillary Tubes can also be supplied. Any type of test can be accepted once the Stainless Steel Capillary tubings are finished.
Stainless Steel 304 Capillary Tubing, 304 Grade stainless steel capillary tube, and Stainless Steel Capillary tube are available in small bore sizes and precise thickness as per client requirements. SS Capillary Tubes sizes range from 0.1 mm to 6.00 mm. They can be availed in thin, standard, or heavy wall.
Diameters of refrigerant capillary tubes range from 0.30 mm to 3.175 mm O.D. and 0.06 mm to 1.65 mm thickness, with lengths ranging from 1.0 mm to 6.0 mm. It is widely used in instrumentation Industries.
SS 304 capillary tubes and 316L Stainless Steel Capillary Tubings are available in precise cut-to-lengths and are highly effective in a wide range of temperatures. Stainless steel 316 capillary tubing is generally used for high-pressure applications.
Stainless Steel Seamless Capillary Tubing is mostly used for Hydraulic control lines, Liquid/Gas Transportation Lines, Medical devices and equipment, Chromatography applications, Measurement devices, Remote thermometer systems, Small precision stainless steel antennas, Watches, Car antenna tubes, Laser engraving equipment, etc.
The stock of SS Capillary Pipes includes grades Stainless Steel 304 Capillary pipe, Stainless Steel 304L Capillary Tube, Stainless Steel 316 Capillary Pipe, Stainless steel 316L Capillary Pipe, and Stainless Steel 201 Capillary Pipe used in various industrial applications.

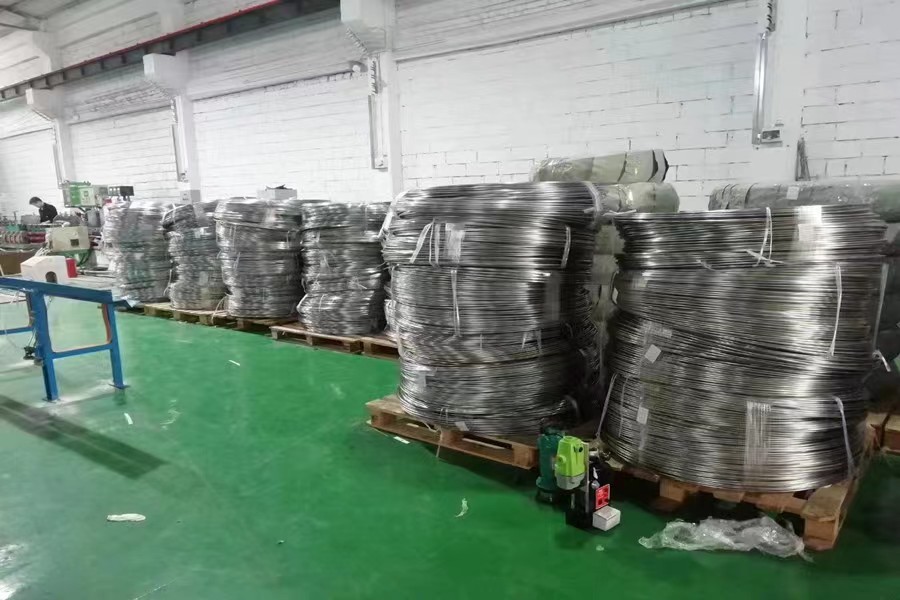

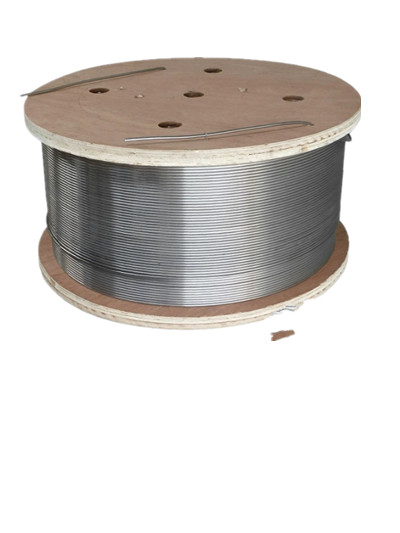

Stainless Steel Capillary Tubing, also called round tubing, can be supplied as a roll of coiled tubing thousands of meters long. This coiled tubing equipment can replace conventional tubing for many applications, offering features such as operation under belt pressure, continuous workflow, compact equipment size, fast operating cycles, and low costs. Continuous tubing plays an increasingly important role in oil and gas field repair, drilling, completion, logging, and other operations.
At least 30-50cm of pipe ends can be left for chemical fulfillment when required. The Capillary tubings are used in various critical applications with an inner surface free from oil, grease, and dust particles. These small-sized precision tubes' tolerances and thicknesses are fully customizable per client requirements.
| ITEM | Grade | Size (MM) | Length (Mtrs) | Pressure (Mpa) |
|---|---|---|---|---|
| 1 | 304L, 304, 316L, 625, 825, 2205, 2507 | 1/8″×0.025″ | 3200 | 80 |
| 2 | 304L, 304, 316L, 625, 825, 2205, 2507 | 1/8″×0.035″ | 3200 | 100 |
| 3 | 304L, 304, 316L, 625, 825, 2205, 2507 | 1/4″×0.035″ | 2000 | 100 |
| 4 | 304L, 304, 316L, 625, 825, 2205, 2507 | 1/4″×0.049″ | 2000 | 100 |
| 5 | 304L, 304, 316L, 625, 825, 2205, 2507 | 3/8″×0.035″ | 1500 | 80 |
| 6 | 304L, 304, 316L, 625, 825, 2205, 2507 | 3/8″×0.049″ | 1500 | 100 |
| 7 | 304L, 304, 316L, 625, 825, 2205, 2507 | 1/2″×0.049″ | 1000 | 80 |
| 8 | 304L, 304, 316L, 625, 825, 2205, 2507 | 1/2″×0.065″ | 1000 | 100 |
| 9 | 304L, 304, 316L, 625, 825, 2205, 2507 | φ3mm×0.7mm | 3200 | 80 |
| 10 | 304L, 304, 316L, 625, 825, 2205, 2507 | φ3mm×0.9mm | 3200 | 100 |
| 11 | 304L, 304, 316L, 625, 825, 2205, 2507 | φ4mm×0.9mm | 3000 | 100 |
| 12 | 304L, 304, 316L, 625, 825, 2205, 2507 | φ4mm×1.1mm | 3000 | 100 |
| 13 | 304L, 304, 316L, 625, 825, 2205, 2507 | φ6mm×0.9mm | 2000 | 100 |
| 14 | 304L, 304, 316L, 625, 825, 2205, 2507 | φ6mm×1.1mm | 2000 | 100 |
| 15 | 304L, 304, 316L, 625, 825, 2205, 2507 | φ8mm×1mm | 1800 | 80 |
| 16 | 304L, 304, 316L, 625, 825, 2205, 2507 | φ8mm×1.2mm | 1800 | 100 |
| 17 | 304L, 304, 316L, 625, 825, 2205, 2507 | φ10mm×1mm | 1500 | 70 |
| 18 | 304L, 304, 316L, 625, 825, 2205, 2507 | φ10mm×1.2mm | 1500 | 70 |
| 19 | 304L, 304, 316L, 625, 825, 2205, 2507 | φ10mm×2mm | 500 | 100 |
| 20 | 304L, 304, 316L, 625, 825, 2205, 2507 | φ12mm×1.5mm | 500 | 80 |
| GRADE | UNS NO | DIN/WERKSTOFF |
|---|---|---|
| Stainless Steel Capillary Tube 304 | S30400 | 1.4301 |
| Stainless Steel Capillary Tube 304L | S30403 | 1.4306 |
| Stainless Steel Capillary Pipe 316 | S31600 | 1.4436 |
| Stainless Steel Capillary Pipe 316L | S31603 | 1.4404 |
